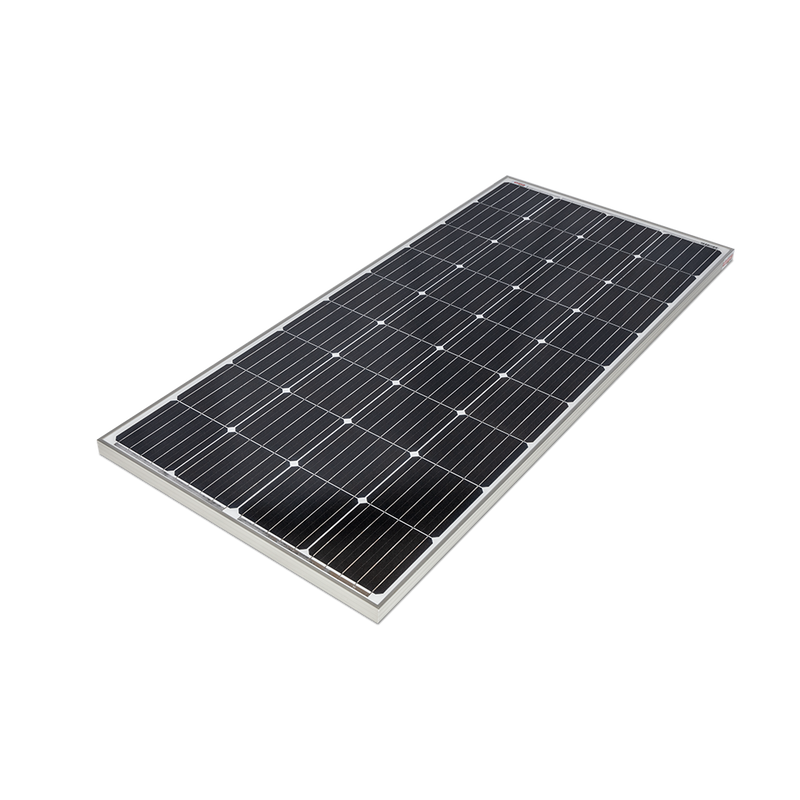

Looking for a high capacity solar panel for camping? REDARC's monocrystalline flat panels are highly efficient with a robust design. A tempered glass coating and a sturdy aluminium frame ensure that our panels will withstand harsh road conditions and extreme weather conditions.
These are designed for a fixed installation. typically on the roof area of caravans. RV’s. motorhomes. as well as some camper trailer and 4x4 vehicle applications.
Featuring an anodised aluminium frame and tempered glass coating they are well suited for outdoor use and employ MC4 style connectors for easy installation.
Fixed Solar Panels feature a weight improvement and smaller footprint design for their power output. effectively contributing to a lighter. smaller design with greater cell efficiency.
The Fixed Solar Panels will integrate into the REDARC product line and will be supported by existing Solar Regulator and Solar Accessory products.
Each panel is tested at time of manufacture to conform to CE standards. so you can be sure that the panel output is exactly as described in its specification.
Features
Monocrystalline construction
Anodised Aluminium Frame
Robust tempered glass coating
Dimensions
1475 x 670 x 35mm
Output Power:
180W
Maximum Power Voltage :
20V
Maximum Power Current :
9.0A
Open Circuit Voltage :
22.3V
Short Circuit Current :
9.72A
Operating Temperature :
-40 to 85°C
Construction :
Monocrystalline
Dimensions :
1475 x 670 x 35mm
Weight (kg) :
10.7
Warranty :
2 years
Minimum solar regulator size:
SRP0240
