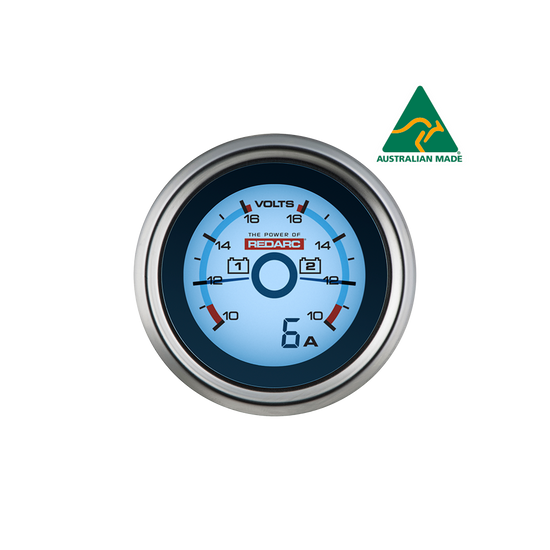

Dual Voltage 52MM Gauge
The REDARC 52mm dual voltage gauge is ideal for monitoring battery systems mounted in 4WD's. Campers. Caravans. Motorhomes and other similar vehicle applications. The LCD/ LED display allows you to monitor the charging performance of both your main and auxiliary batteries.
In the event of an alternator or system failure. the voltage reading on the gauge will be low and drop as the battery discharges. In the event of an overcharge condition. the voltage reading will climb above its normal zone. The G52-VVA gauge also has pre-set alert levels (<11V and >16V) to notify you of these situations by changing the gauge backlight colour to either amber or red. and initiate an audible beep when the vehicle's ignition is on.
Current Sensor*
The G52-VVA gauge is also equipped with an optional 100A rated current display that monitors the amount of current to or from your main or auxiliary battery. This device can be fitted around the earth connection of the main or auxiliary battery. You will need to purchase the REDARC Hall effect current sensor (GS-AMPS) to equip the gauge with this function.
When extra protection is required. the G52-VVA is the perfect accessory for a REDARC dual battery isolator (SBI12) or in-vehicle battery charger (BCDC range) where 12-volt batteries are installed. It’s a visual monitor of product performance and battery health.
The G52-VVA gauge diameter requires a 52mm hole for mounting. REDARC offer a range of mounting solutions including a 2” black plastic mounting cup (GH-CUP) and one (GH-MP1). two (GH-MP2) and three (GH-MP3) hole gauge mounting panels. Radio inserts are also available that suit the Toyota Hilux (GH-RI05).
The REDARC 24 to 12 volt adaptor (GA-2412V) can be used to connect this gauge to a vehicle with a 24 volt ignition and lighting supply. however only a 12 volt battery can be monitored.
Features
Satin Chrome Bezel
13 Selectable Backlight Colours
Multiple alert levels with amber or red backlight and audible beep - Alerts when Voltage drops below 11V or climbs above 16V.
Display illuminates when park lights are turned on so you can check battery voltages and discharge or charge current without turning on the ignition.
If fitting more than one REDARC gauge. a communications link can be connected between the gauges to change the backlight colour of all at once.
Warranty :
2 Years
Sensor (Optional) :
GS-AMPS
Standby Current Draw :
30mA
Input (Operating) Voltage :
6 - 16V
Height (mm) :
42
Weight (kg) :
0.05
