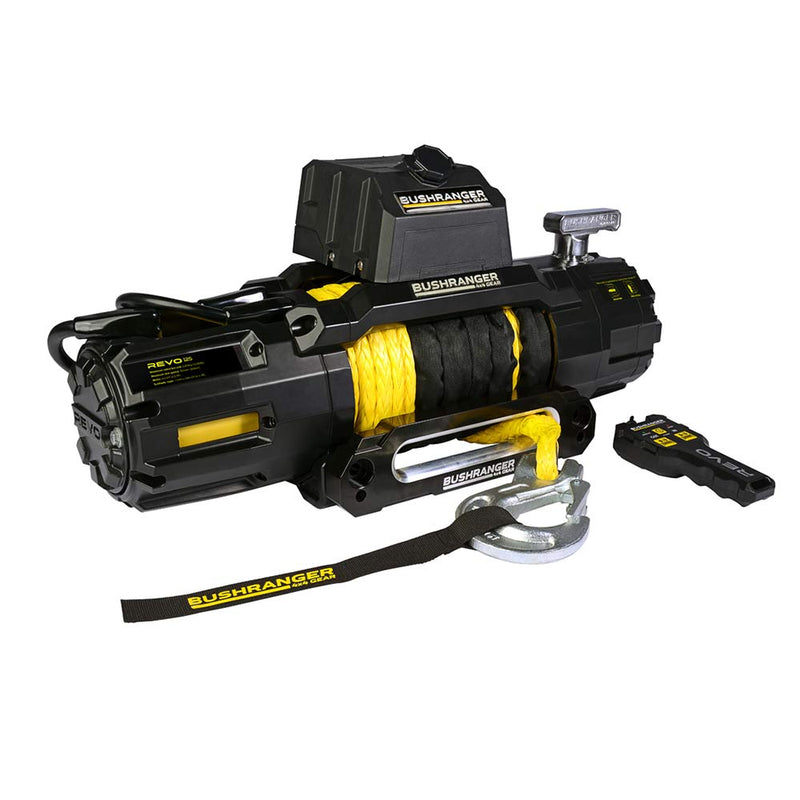

REVO WINCH | 12,000LB | SYNTHETIC
- Regular price
- $1,050.00
- Regular price
-
$1,445.95 - Sale price
- $1,050.00
- Unit price
- per
Sku: REVO WINCH | 12,000LB | SYNTHETIC
Availability: In Stock
Couldn't load pickup availability
Shipping & Returns
Turnaround
All orders are shipped within 1-2 weeks.
If a tracking number is provided by the shipping carrier, we will update your order with the tracking information. Please note that some orders may not have tracking numbers due to provider options.
Shipping Rates
The rate charged for the shipping of your order is based on the weight of your products, and your location. Before the final checkout page you will be shown what the cost of shipping will be, and you will have a chance to not place your order if you decide not to.
Delivery charges
What is Rural Delivery fee?
An estimated delivery charge will apply to customers ordering from rural areas. Prior to processing you order on checkout, an alert will appear that will advise customers to call MYTUFF4X4 to obtain an accurate cost of delivery. Please contact MYTUFF4X4 to see a list of Rural and Remote areas. Some areas may take longer due to the frequency of deliveries to the delivery Post code. Our system calculates this estimated price considering the total amount of time to process your order including: packaging, transit time to the delivery provider, and transit time to the delivery address.
When placing your order, we consider these factors when calculating the Estimated Delivery prices :
- Post code of the nominated delivery address.
- Transit Time: The amount of time it takes your order to leave our distribution centre and arrive at the local delivery carrier.
What additional fees may apply?
There may be circumstances that require additional payment by you if the conditions mentioned have not been met or you require special services outside of our standard delivery.
Back Orders
If an item goes on back order we will ship you the part of your order that is in stock. When the item becomes available we will ship you the rest of your order. You will not be charged any additional shipping and handling for the second shipment.
Delivery Insurance
Goods that are shipped on behalf of the client by Mytuff4x4 are not insured unless the client notifies us prior to delivery and pays for delivery insurance. Mytuff4x4 is not responsible for goods damaged in transit if insurance is not paid for by the customer prior to delivery.
Gearbox mounted braking system | 100% load holding. proportional friction braking system located inside the gearbox. away from the drum – eliminating heat transfer to synthetic rope.
Zero brake drag | Zero drag braking system allows for the winch to be powered out under no load without the heat build-up. making unspooling a breeze.
Premium Motor design | Series wound. 12V. 6.2HP motor made with high-grade materials resulting in low current draw and longer life at extreme load.
4 stage oversized gearbox | Designed for maximum strength and durability. Extra-wide gears improve load distribution resulting in less wear and increased long term reliability. Externally adjustable. 16 position gearbox clocking for ease of fitment and use.
Clockable motor housing | 3 position motor clocking for versatility during fitting
Control box | Multiple mounting orientations to suit every installation. Supplied with additional mounting bracket for hassle-free installation.
Wireless Hand Controller | Full sealed. IP67 rated. ergonomic hand controller with long-range. Sealed 433MHz wireless receiver mounted internally to control box.
In-Line/Off-set Hawse Fairlead | Innovative two-position. aircraft-grade aluminium design to suit in-line and off-set mounting requirements.
Synthetic Rope | Premium. 11mm synthetic rope paired with a ½” removable clevis hook
500A Contactor | Heavy-duty sealed contractor reliably distributes power with minimal voltage drops.
Waterproof | Fully sealed motor. gearbox and drum for maximum protection from water. dust and debris.
No-lift clutch | Easy to use spring-loaded cam style clutch mechanism
Multi-mount control box | For easier installation
Tough Design | Strong and lightweight aluminium alloy housings with durable black powder coat finish
Part Number:
RWR120S
Dimensions:
602mm (L) x 165mm (W) x 216mm (H) (excludes control box)
Rated Line Pull (single):
12.000lbs (5.443kg)
Motor:
Series wound. 12V. 6.2HP (4.6kw)
Remote Control:
Two functions. hand controller (Wireless. 30m range) (Wired. 5m lead)
Electrical:
Contactor IP67 500A
Gear Train:
4 stage gear driven
Gear Ratio:
171:1
Clutch (freespooling):
Rotating Ring Gear
Brake:
Gearbox Mounted. Proportional Friction Brake System
Drum Diameter/Length:
63.5mm x 244mm
Mounting:
Bolt Pattern 254mm x 114mm
Rope:
11mm x 24m Synthetic Rope
Fairlead:
Two position Aluminium Hawse Fairlead
Recommend Battery:
650CCA minimum
Battery Leads:
1850mm
Finish:
Black Powder Coat
Mechanical Warranty:
Limited Lifetime
Electrical Warranty:
7 years
Waterproof Rating:
IP67
Certification:
CE. IP67
Winch Weight:
35kg
Zero brake drag | Zero drag braking system allows for the winch to be powered out under no load without the heat build-up. making unspooling a breeze.
Premium Motor design | Series wound. 12V. 6.2HP motor made with high-grade materials resulting in low current draw and longer life at extreme load.
4 stage oversized gearbox | Designed for maximum strength and durability. Extra-wide gears improve load distribution resulting in less wear and increased long term reliability. Externally adjustable. 16 position gearbox clocking for ease of fitment and use.
Clockable motor housing | 3 position motor clocking for versatility during fitting
Control box | Multiple mounting orientations to suit every installation. Supplied with additional mounting bracket for hassle-free installation.
Wireless Hand Controller | Full sealed. IP67 rated. ergonomic hand controller with long-range. Sealed 433MHz wireless receiver mounted internally to control box.
In-Line/Off-set Hawse Fairlead | Innovative two-position. aircraft-grade aluminium design to suit in-line and off-set mounting requirements.
Synthetic Rope | Premium. 11mm synthetic rope paired with a ½” removable clevis hook
500A Contactor | Heavy-duty sealed contractor reliably distributes power with minimal voltage drops.
Waterproof | Fully sealed motor. gearbox and drum for maximum protection from water. dust and debris.
No-lift clutch | Easy to use spring-loaded cam style clutch mechanism
Multi-mount control box | For easier installation
Tough Design | Strong and lightweight aluminium alloy housings with durable black powder coat finish
Part Number:
RWR120S
Dimensions:
602mm (L) x 165mm (W) x 216mm (H) (excludes control box)
Rated Line Pull (single):
12.000lbs (5.443kg)
Motor:
Series wound. 12V. 6.2HP (4.6kw)
Remote Control:
Two functions. hand controller (Wireless. 30m range) (Wired. 5m lead)
Electrical:
Contactor IP67 500A
Gear Train:
4 stage gear driven
Gear Ratio:
171:1
Clutch (freespooling):
Rotating Ring Gear
Brake:
Gearbox Mounted. Proportional Friction Brake System
Drum Diameter/Length:
63.5mm x 244mm
Mounting:
Bolt Pattern 254mm x 114mm
Rope:
11mm x 24m Synthetic Rope
Fairlead:
Two position Aluminium Hawse Fairlead
Recommend Battery:
650CCA minimum
Battery Leads:
1850mm
Finish:
Black Powder Coat
Mechanical Warranty:
Limited Lifetime
Electrical Warranty:
7 years
Waterproof Rating:
IP67
Certification:
CE. IP67
Winch Weight:
35kg
