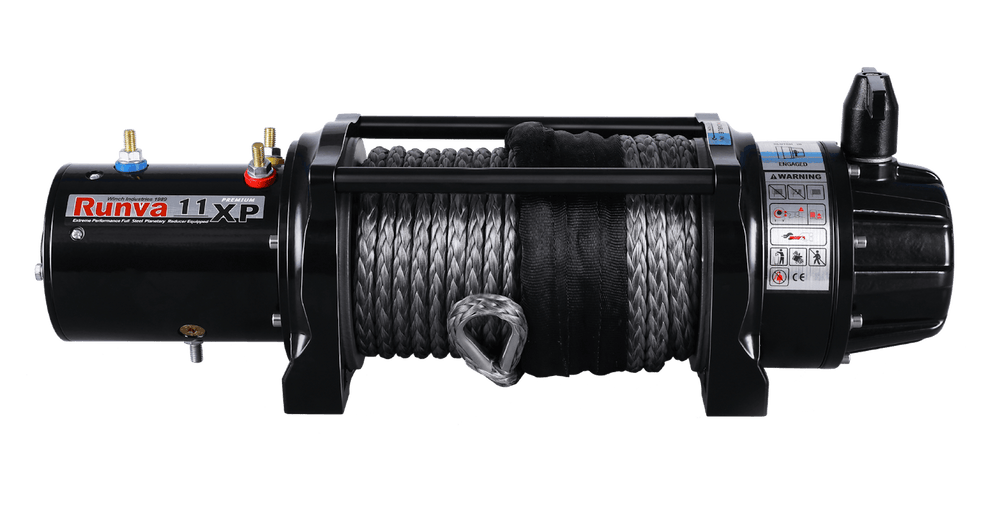

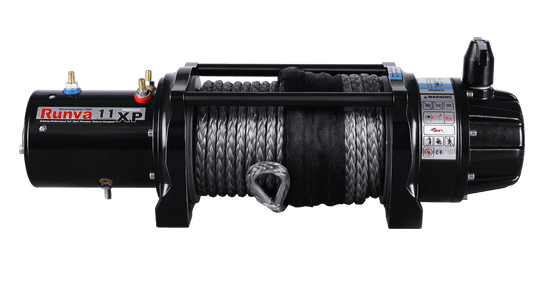

Runva 11XP Premium Winch – The Winch That Has It All
The Runva 11XP Premium is engineered for just about any 4x4 on the market, from small utes to large off-road rigs. With a massive 11,000 lb (4,990 kg) line pull powered by a 6.7 HP motor, this winch can handle even the toughest recoveries. Featuring a full steel, three-stage planetary gearbox with a rugged 228:1 gear ratio, the 11XP Premium delivers reliable performance in the harshest conditions.
Whether you drive a Hilux, Ranger, LandCruiser, or something in between, the 11XP Premium will get you out of trouble—fast. This model has been proven in extreme off-road use, including on 4WD 24/7 vehicles, where it has pulled two dead vehicles tied together without fail.
Premium Features
-
High-Performance Motor: 12V: 5.0 kW / 6.7 HP, 24V: 6.0 kW / 8.2 HP
-
Premium Brake System: Gearbox-mounted automatic ratchet brake holds load securely without wear, unlike traditional brake pads.
-
Rotary Clutch System: Stainless steel clutch can be easily engaged/disengaged by hand. Compatible with optional Runva Air Clutch for in-cab control.
-
IP67 Rating: Fully sealed for operation in water, mud, and extreme environments.
-
Synthetic Rope: 10 mm × 25 m rated for 22,500 lb for safety and reliability.
-
Heavy-Duty Remote: Includes both wired and wireless handheld controls.
-
Durable Construction: Black powder-coated finish for long-lasting corrosion resistance.
Technical Specifications
| Specification | Detail |
|---|---|
| Rated Line Pull | 11,000 lb (4,990 kg) |
| Motor | 12V: 5.0 kW / 6.7 HP, 24V: 6.0 kW / 8.2 HP |
| Gear Train | Full steel, 3-stage planetary |
| Gear Ratio | 228:1 |
| Clutch Type | Stainless steel rotary clutch |
| Clutch Handle Position | Gearbox can be rotated |
| Brake | Automatic ratchet load-holding in gearbox |
| Cable Type | Synthetic rope |
| Cable Size | 10 mm × 25 m (22,500 lb rating) |
| Drum Size | 63 mm × 217 mm |
| Mounting Bolt Pattern | 254 mm × 114.3 mm |
| Dimensions (L × W × H) | 574 mm × 160 mm × 200 mm |
| Remote Control | Heavy-duty handheld + wireless |
| Battery Leads | 2 × 1.8 m heavy-duty leads |
| Finish | Black powder coat |
| Warranty | 5-year electrical, lifetime mechanical |
| SKU | 11XPPREMIUM12VD |
| Shipping Weight | 37.5 kg |
Performance Table (12V / 24V)
| Load | Line Speed (ft/min, m/min) | Motor Current (A) | Cable Layer | Rated Line Pull (lb, kg) | Rope on Drum (ft, m) |
|---|---|---|---|---|---|
| 0 lb | 32.2 / 9.8 | 75 / 65 | 1 | 11,000 / 4,990 | 17.4 / 5.3 |
| 4,000 lb | 13.1 / 4.0 | 220 / 155 | 2 | 8,766 / 3,976 | 39.4 / 12.0 |
| 8,000 lb | 9.8 / 3.0 | 320 / 230 | 3 | 7,286 / 3,305 | 65.0 / 19.8 |
| 11,000 lb | 5.8 / 1.8 | 420 / 280 | 4 | 6,233 / 2,827 | 85.3 / 26.0 |
Why Choose the 11XP Premium
-
Proven reliability in extreme off-road conditions
-
High line pull combined with a durable planetary gearbox
-
Advanced brake and clutch systems for safety and ease of use
-
Premium IP67 construction for all-weather performance
The Runva 11XP Premium is the ultimate winch for enthusiasts, off-roaders, and professionals who demand speed, power, and reliability.
