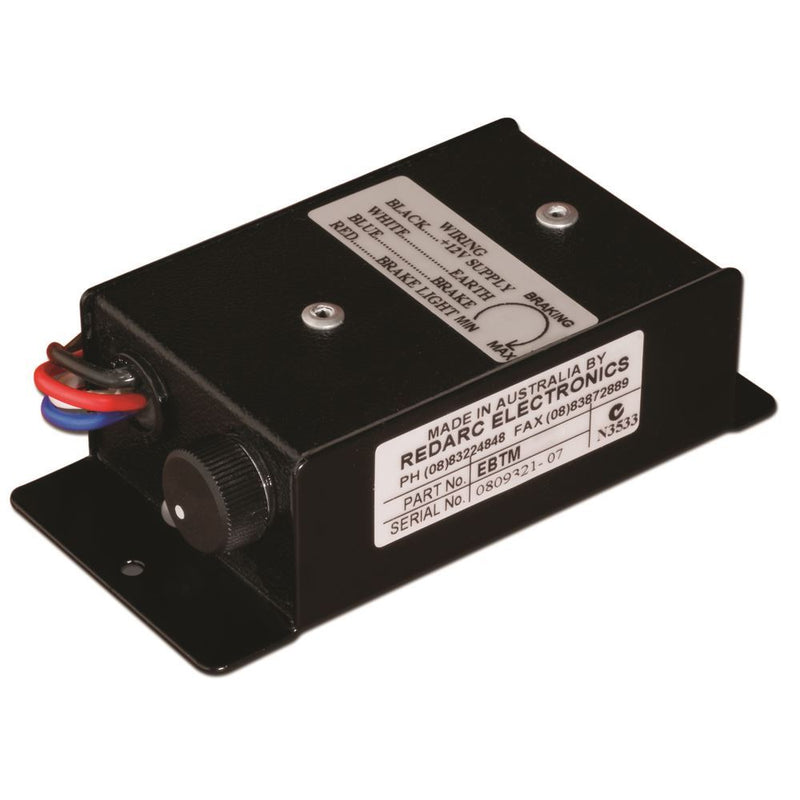

EB series brake controllers have the option of an encapsulated trailer mount unit. It ensures safe braking when towing.
The EBTM is completely potted in silicone elastomer to ensure protection against vibration and the weather.
As the manual button is not needed. it has been removed and the EBTM requires an auxiliary 12 volt available at the trailer socket. You should ensure the 12 volt supply in the trailer is adequate to supply sufficient power for safe braking. Apart from this the unit operates as the standard EB does.
Confirm with local transport authorities regarding the usage for trailer mount electric trailer brake controllers in your state.
Features
Compact size
LED status and braking force indication
Override option for independant trailer brake activation
Simple gain adjustment for variation in braking force
Input (Operating) Voltage:
12VDC
Input Fuse Rating:
30A (Cicruit Breaker)
Warranty:
2 Years
Protection:
Reverse Polarity. Short Circuit
Weight (kg):
0.3
Output System Voltage:
12VDC
Output Current Rating (Cont.):
18A
Length (mm):
100
Width (mm):
50
Height (mm):
30
