Tags: 52mm Gauges Redarc Voltage Gauges

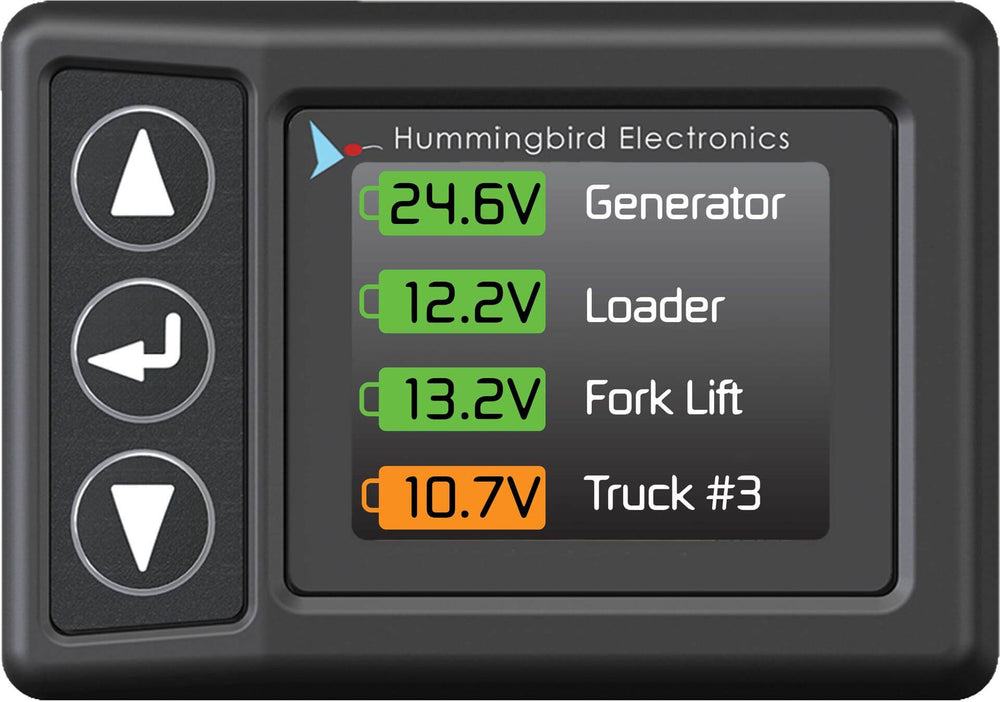

Wireless Battery Monitor By Hummingbird
- Regular price
- $441.60
- Regular price
-
$0.00 - Sale price
- $441.60
- Unit price
- per
Sku: Wireless Battery Monitor By Hummingbird
Availability: In Stock
Couldn't load pickup availability
Shipping & Returns
Turnaround
All orders are shipped within 1-2 weeks.
If a tracking number is provided by the shipping carrier, we will update your order with the tracking information. Please note that some orders may not have tracking numbers due to provider options.
Shipping Rates
The rate charged for the shipping of your order is based on the weight of your products, and your location. Before the final checkout page you will be shown what the cost of shipping will be, and you will have a chance to not place your order if you decide not to.
Delivery charges
What is Rural Delivery fee?
An estimated delivery charge will apply to customers ordering from rural areas. Prior to processing you order on checkout, an alert will appear that will advise customers to call MYTUFF4X4 to obtain an accurate cost of delivery. Please contact MYTUFF4X4 to see a list of Rural and Remote areas. Some areas may take longer due to the frequency of deliveries to the delivery Post code. Our system calculates this estimated price considering the total amount of time to process your order including: packaging, transit time to the delivery provider, and transit time to the delivery address.
When placing your order, we consider these factors when calculating the Estimated Delivery prices :
- Post code of the nominated delivery address.
- Transit Time: The amount of time it takes your order to leave our distribution centre and arrive at the local delivery carrier.
What additional fees may apply?
There may be circumstances that require additional payment by you if the conditions mentioned have not been met or you require special services outside of our standard delivery.
Back Orders
If an item goes on back order we will ship you the part of your order that is in stock. When the item becomes available we will ship you the rest of your order. You will not be charged any additional shipping and handling for the second shipment.
Delivery Insurance
Goods that are shipped on behalf of the client by Mytuff4x4 are not insured unless the client notifies us prior to delivery and pays for delivery insurance. Mytuff4x4 is not responsible for goods damaged in transit if insurance is not paid for by the customer prior to delivery.
Forget about complicated installations. simply plug the RF Battery Monitor into the vehicle’s accessory socket to get started. This wireless battery monitor featuring RF wireless technology. making it perfect to monitor a large fleet of batteries or for use in a single application like a 4WD. car. caravan. or anything featuring multiple batteries.
FUNCTIONAL
The RF Battery Monitor can not only monitor up to 16 batteries. displaying each individual battery status on the easy-to-read screen down to a precise 100mV measurement. but you are able to name each battery relevant to its application. making it easier to identify the status of the “loader”. “forklift” and “truck #3”. or “fridge”. “caravan”. and “main battery”.
Additionally. you can monitor all your batteries with a quick drive by. If you are managing a fleet. this means you are easily able to check on your trucks’. cars’. and ancillary machinery’s batteries as you drive around the lot. making it easy to identify which batteries to put on charge. ready for their next job. Likewise. you can simply check on your boat. trailer or caravan battery on the fly. so you know when to put the solar panels out or hook up to shore power.
SMART
The RF Battery Monitor transmitter uses long-range RF technology meaning that communication is reliable in all configurations. The ultra-low power transmitters are able to be left permanently connected to batteries and do not need to be switched off when not in use.
Know when something has gone wrong by setting minimum and maximum voltage alarm levels. As each battery can be given a unique name. when the set limits are reached and unit warns the user with an easily identifiable colour indicator and an optional buzzer. the user will be able to quickly identify the battery in question.
FLEXIBLE
This multi-applicational unit can act as a 12v battery monitor and a 24v battery monitor simultaneously. making it the perfect fleet and dual battery monitor. No matter its application. installation is as simple as attaching the transmitters red and black terminals to the battery and plugging the receiver into an accessory socket. The receiver can be mounted in any convenient location with a flexible windscreen-mount but can also be attached using any standard camera mount including those available from RAM. and permanently powered if desired.
The HUMMINGBIRD RF Battery Monitor is the perfect automotive battery voltage monitor. with applications for wirelessly monitoring battery operating parameters in fleets and vehicles with multiple batteries. Quickly identify unwelcome battery conditions. avoid costly downtime. and extend the life of your batteries with the Wireless Battery Monitor by Hummingbird.
FEATURES
Uses RF technology to transmit voltages
Comes with one sensor. can be used with up to 16
Buzzer for under or over voltage
Changes colour for under or over voltage
User adjustable limits per battery
Optional local battery monitoring
Multi-voltage – simply plug into your cigarette lighter plug
Cigarette lighter connection
Precision 100mV measurement
Ultra-low power transmitter can be left connected to batteries
Input (Operating) Voltage :
9 - 32VDC
Mounting System :
Windshield
Power Consumption :
Screen: Typical 0.2W (10mA @ 12V; 1mA @ 24V). Transmitter: Typical 0.5mA (50 Microamps)
Acquisition Time :
30 Seconds to acquire RF Devices
Resolution :
100mV
RF Frequency :
433MHz
Range :
100m Line of Sight
Operating Temperature :
-20°C to 55°C
Weight (g) :
160
Height (mm) :
17
Length (mm) :
74
Warranty :
2 Years
FUNCTIONAL
The RF Battery Monitor can not only monitor up to 16 batteries. displaying each individual battery status on the easy-to-read screen down to a precise 100mV measurement. but you are able to name each battery relevant to its application. making it easier to identify the status of the “loader”. “forklift” and “truck #3”. or “fridge”. “caravan”. and “main battery”.
Additionally. you can monitor all your batteries with a quick drive by. If you are managing a fleet. this means you are easily able to check on your trucks’. cars’. and ancillary machinery’s batteries as you drive around the lot. making it easy to identify which batteries to put on charge. ready for their next job. Likewise. you can simply check on your boat. trailer or caravan battery on the fly. so you know when to put the solar panels out or hook up to shore power.
SMART
The RF Battery Monitor transmitter uses long-range RF technology meaning that communication is reliable in all configurations. The ultra-low power transmitters are able to be left permanently connected to batteries and do not need to be switched off when not in use.
Know when something has gone wrong by setting minimum and maximum voltage alarm levels. As each battery can be given a unique name. when the set limits are reached and unit warns the user with an easily identifiable colour indicator and an optional buzzer. the user will be able to quickly identify the battery in question.
FLEXIBLE
This multi-applicational unit can act as a 12v battery monitor and a 24v battery monitor simultaneously. making it the perfect fleet and dual battery monitor. No matter its application. installation is as simple as attaching the transmitters red and black terminals to the battery and plugging the receiver into an accessory socket. The receiver can be mounted in any convenient location with a flexible windscreen-mount but can also be attached using any standard camera mount including those available from RAM. and permanently powered if desired.
The HUMMINGBIRD RF Battery Monitor is the perfect automotive battery voltage monitor. with applications for wirelessly monitoring battery operating parameters in fleets and vehicles with multiple batteries. Quickly identify unwelcome battery conditions. avoid costly downtime. and extend the life of your batteries with the Wireless Battery Monitor by Hummingbird.
FEATURES
Uses RF technology to transmit voltages
Comes with one sensor. can be used with up to 16
Buzzer for under or over voltage
Changes colour for under or over voltage
User adjustable limits per battery
Optional local battery monitoring
Multi-voltage – simply plug into your cigarette lighter plug
Cigarette lighter connection
Precision 100mV measurement
Ultra-low power transmitter can be left connected to batteries
Input (Operating) Voltage :
9 - 32VDC
Mounting System :
Windshield
Power Consumption :
Screen: Typical 0.2W (10mA @ 12V; 1mA @ 24V). Transmitter: Typical 0.5mA (50 Microamps)
Acquisition Time :
30 Seconds to acquire RF Devices
Resolution :
100mV
RF Frequency :
433MHz
Range :
100m Line of Sight
Operating Temperature :
-20°C to 55°C
Weight (g) :
160
Height (mm) :
17
Length (mm) :
74
Warranty :
2 Years
