MRA Shocks deliver exceptional adjustability across varying terrain and load conditions, keeping your vehicle composed, controlled, and comfortable—wherever you drive.
MRA Shock Features
-
20-Stage Low-Speed Compression (Bump) Adjustment
-
10-Stage High-Speed Compression (Bump) Adjustment
-
15-Stage Rebound Adjustment
-
Front Height Adjustment for precise ride height tuning
-
Fully Rebuildable Design for long-term serviceability
-
Massive 60mm Bore for increased oil capacity and performance
Race-Bred Monotube Technology
Developed from Dobinsons’ race-winning Monotube Remote Reservoir (MRR) platform, the MRA range combines proven motorsport engineering with an advanced 3-way damping adjustment system. The result is a high-performance suspension solution engineered to transform your 4WD into a refined yet highly capable off-road vehicle.
Every component has been refined to maximise ride quality, vehicle stability, and damping consistency in demanding environments.

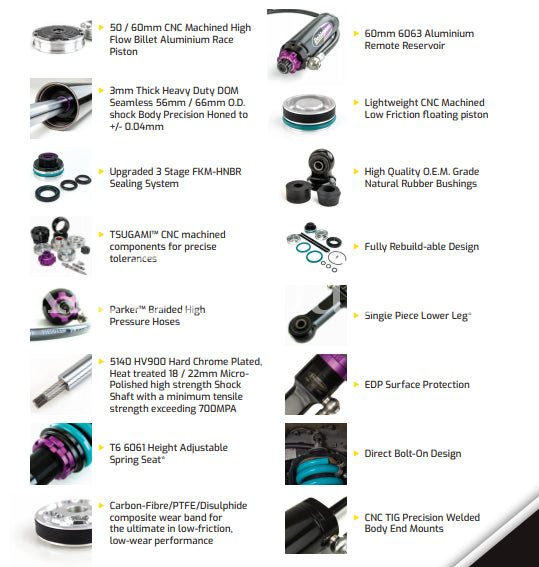

Key engineering enhancements include:
-
6063 Honed Aluminium Reservoir
-
Lightweight Floating Piston (Revised Design)
-
Carbon Fibre / PTFE / Disulphide Composite Wear Band
-
Upgraded 3-Stage FKM-HNBR Shaft Seal System
-
Reduced Gas Pressure Capability via reservoir compression adjuster
These refinements significantly reduce internal friction, lower operating temperatures, and extend service life while delivering superior ride comfort and shock performance.
Additional performance features include:
-
Micro-polished, hard-chromed, heat-treated shock shaft
-
CNC-machined high-flow race piston
-
DOM seamless tubing shock body
-
3-way adjustment system that distributes heat more evenly between the main and reservoir pistons for improved durability and consistent damping
Vehicle Application
This is a complete Dobinsons MRA Adjustable Lift Kit designed to suit the Toyota LandCruiser 200 Series.
Compatible with both KDSS and Non-KDSS models.
Please select the appropriate option for your vehicle, as Non-KDSS models require an additional rear remote reservoir mounting bracket kit.
Lift Configuration
This kit is designed to provide:
-
Front: 40–50mm lift
-
Rear: 20–30mm lift (recommended to level factory rake)
Alternatively, the rear can be optioned with 50mm raised coils to maintain the factory rake while increasing overall ride height.
Kit Inclusions
-
2 × Dobinsons MRA Adjustable Front Shock Absorbers
-
2 × Dobinsons Front Coil Springs
-
2 × Dobinsons MRA Adjustable Rear Shock Absorbers
-
2 × Dobinsons Rear Coil Springs
Important Spring Selection Guidelines
For optimal performance and reliability:
-
Select springs based on your vehicle’s current constant load (front and rear).
-
Do not include towing loads in constant load calculations.
-
Do not factor in occasional or temporary loads.
Choosing an excessively heavy spring rating may result in:
-
Reduced off-road articulation
-
Limited suspension travel
-
Harsh ride quality
-
Premature wear or damage to shocks and suspension components
Additional Information
All lift heights provided are estimates and may vary depending on vehicle condition, accessories, and setup.
Estimated Lift Heights:
-
Front: 50mm (2")
-
Rear: 30mm (recommended to level factory rake)
-
Rear Option: 50mm (2")
Engineered for serious off-road performance and long-term durability, the Dobinsons MRA Adjustable Suspension Kit offers premium control, comfort, and adaptability for your LandCruiser 200 Series.
