Old Man Emu Nitrocharger Plus Suspension Kit Suitable For Toyota Hilux 2005-2015

Regular price: $2,988.30
Regular price
Sale price: $2,988.30
Unit price: per

Sku: EKNP00223

Availability: In Stock

Product variants

Quantity

Shipping & Returns

Turnaround

All orders are shipped within 1-2 weeks.

If a tracking number is provided by the shipping carrier, we will update your order with the tracking information. Please note that some orders may not have tracking numbers due to provider options.

Shipping Rates

The rate charged for the shipping of your order is based on the weight of your products, and your location. Before the final checkout page you will be shown what the cost of shipping will be, and you will have a chance to not place your order if you decide not to.

Delivery charges

What is Rural Delivery fee?
An estimated delivery charge will apply to customers ordering from rural areas. Prior to processing you order on checkout, an alert will appear that will advise customers to call MYTUFF4X4 to obtain an accurate cost of delivery. Please contact MYTUFF4X4 to see a list of Rural and Remote areas. Some areas may take longer due to the frequency of deliveries to the delivery Post code. Our system calculates this estimated price considering the total amount of time to process your order including: packaging, transit time to the delivery provider, and transit time to the delivery address.

When placing your order, we consider these factors when calculating the Estimated Delivery prices :

Post code of the nominated delivery address.
Transit Time: The amount of time it takes your order to leave our distribution centre and arrive at the local delivery carrier.

What additional fees may apply?
There may be circumstances that require additional payment by you if the conditions mentioned have not been met or you require special services outside of our standard delivery.

Back Orders

If an item goes on back order we will ship you the part of your order that is in stock. When the item becomes available we will ship you the rest of your order. You will not be charged any additional shipping and handling for the second shipment.

Delivery Insurance

Goods that are shipped on behalf of the client by Mytuff4x4 are not insured unless the client notifies us prior to delivery and pays for delivery insurance. Mytuff4x4 is not responsible for goods damaged in transit if insurance is not paid for by the customer prior to delivery.

Description
Reviews

Nitrocharger Plus is Old Man Emu's everyday touring shock. It's a twin-tube gas shock with a big-bore piston that keeps its damping consistent on long corrugated tracks, matched to OME springs so the whole kit works as one system. The right choice if you tour, tow and drive to work in the same vehicle.

Suitable for the Toyota Hilux 2005-2015. This listing covers every Old Man Emu Nitrocharger Plus suspension kit ARB makes for this vehicle; pick yours from the dropdown above. Each choice is one complete ARB part number with the front and rear springs, shocks and fitting hardware for that setup, priced individually.

Choosing your kit

Front springs are chosen for what's on the nose: bull bar, winch, second battery. More accessory weight needs a firmer (higher N/mm) front spring.
Rear springs are chosen for the load you carry all the time: canopy, drawers, fridge, tools. Where OME rates the spring in kg, that's the constant load it's built for.

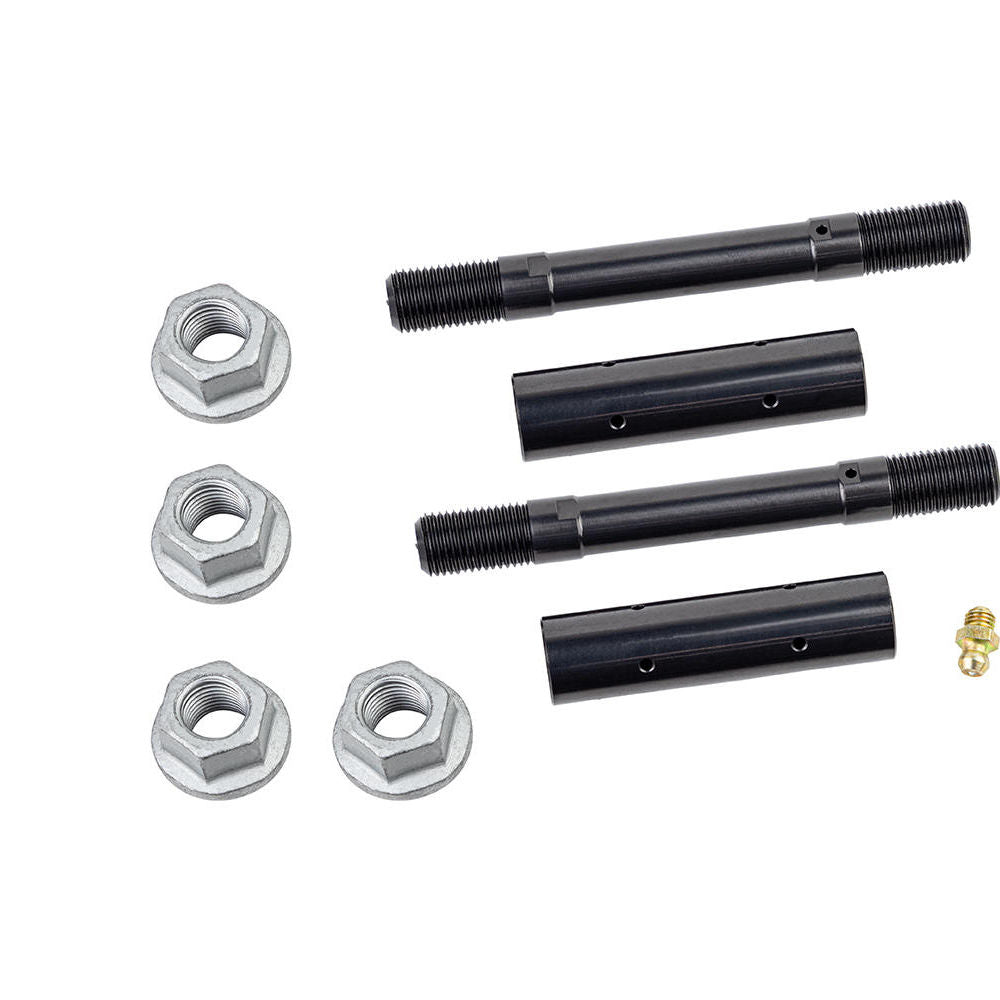

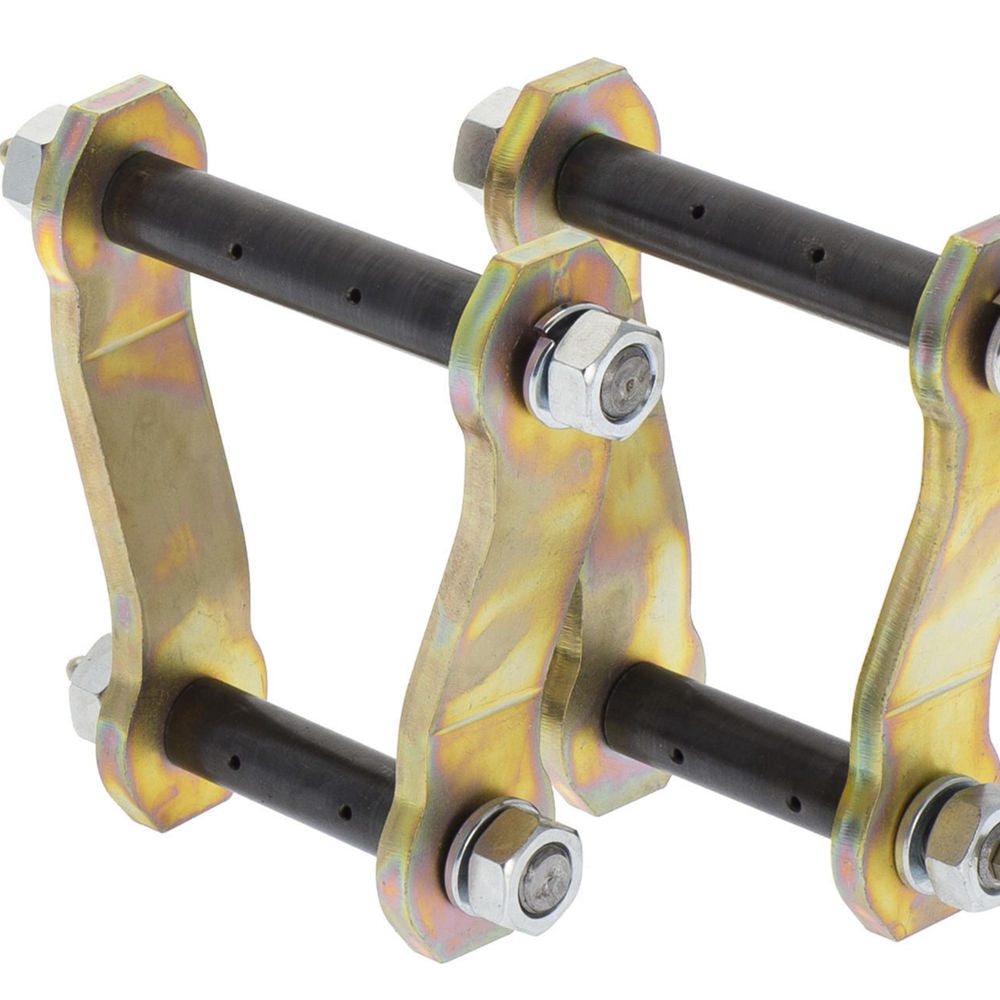

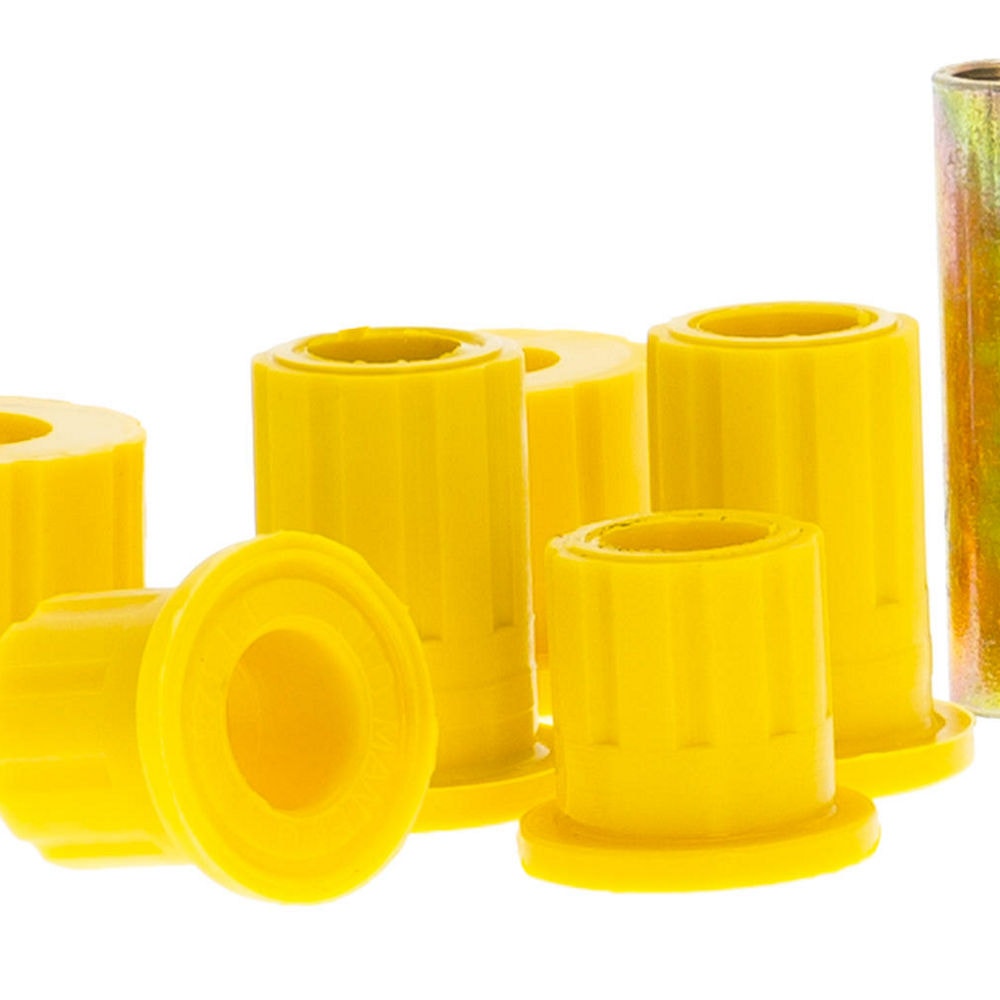

Greasable shackles/pins are the upgraded leaf-spring hardware option; standard bushes use OE-style rubber.
Not sure which one? Send us an enquiry with your vehicle, accessories and the weight you carry and the MyTuff4x4 workshop will match the kit for you.

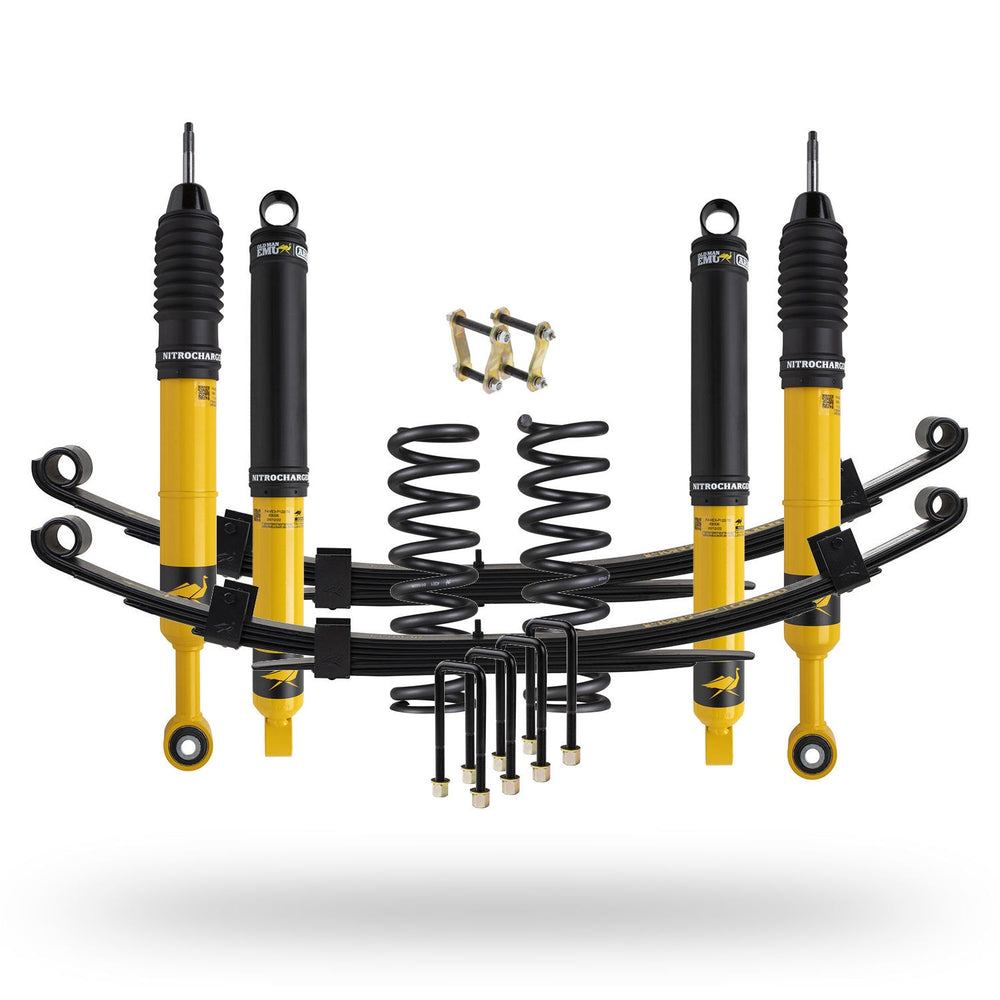

What's in each kit

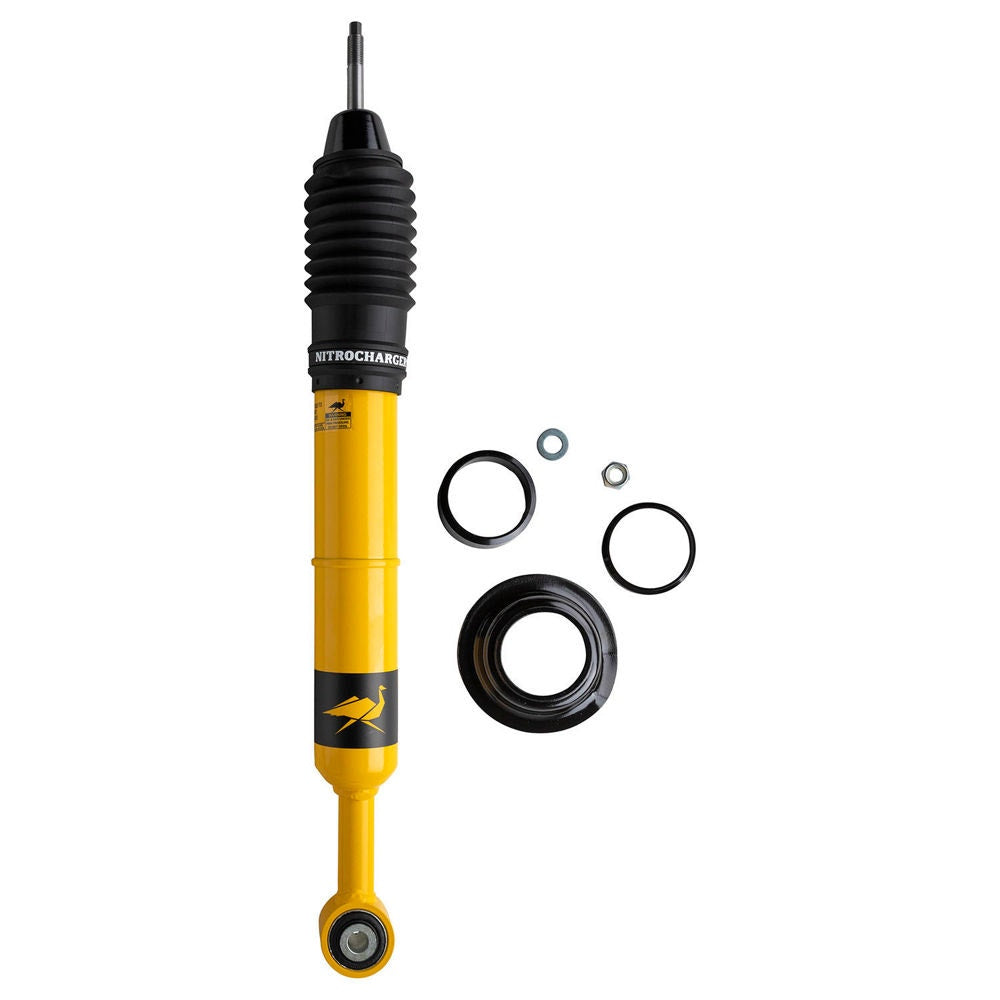

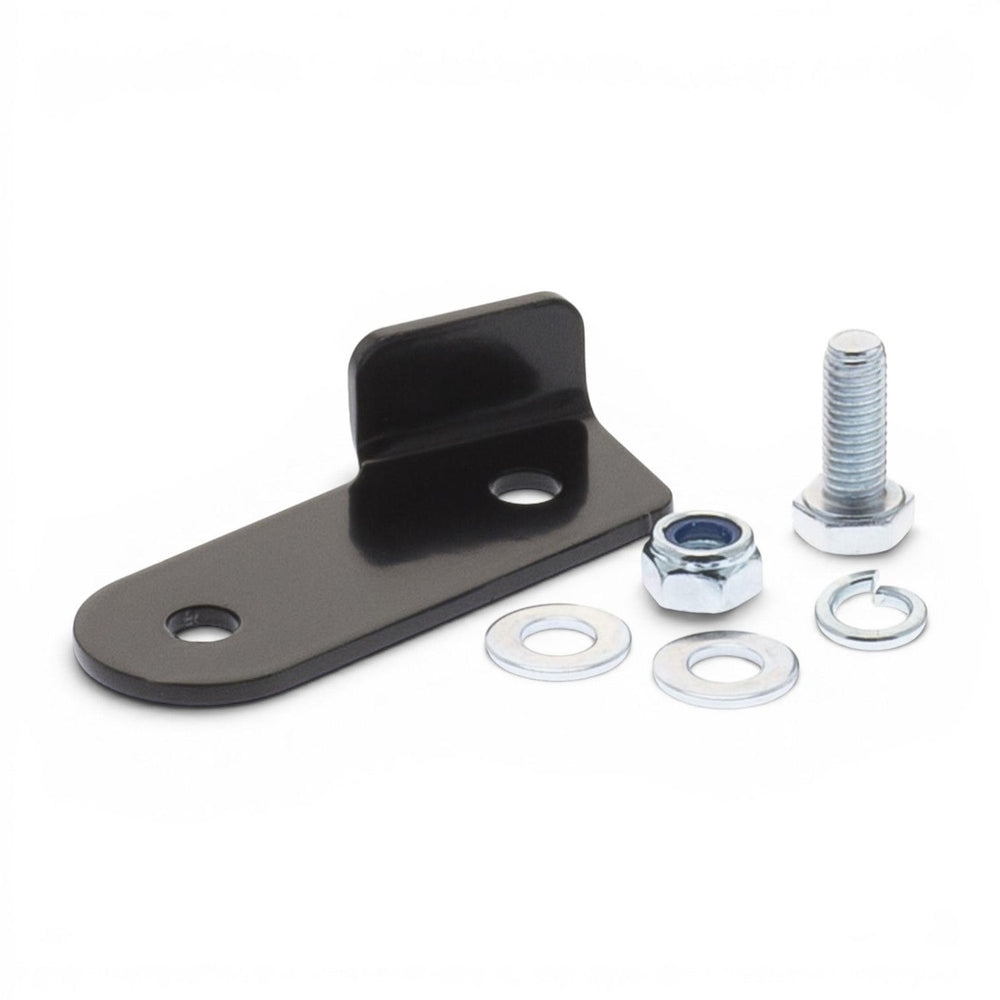

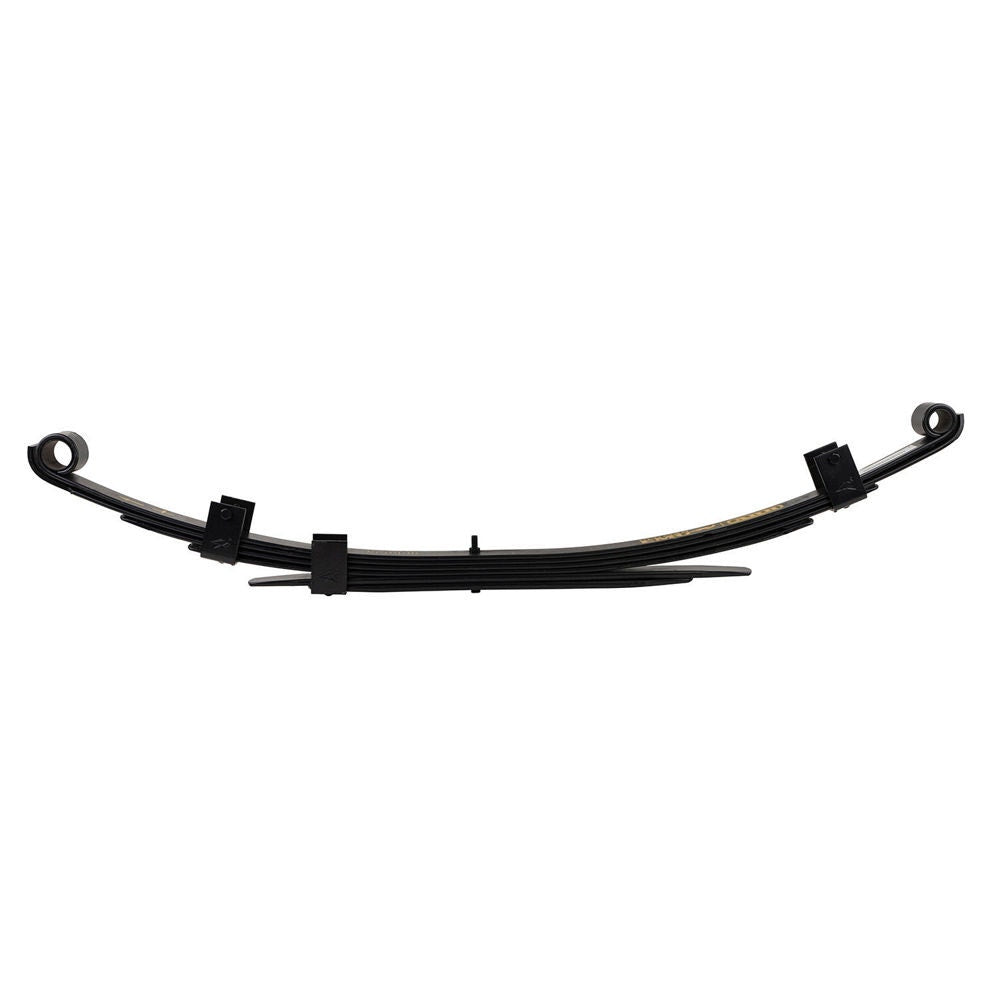

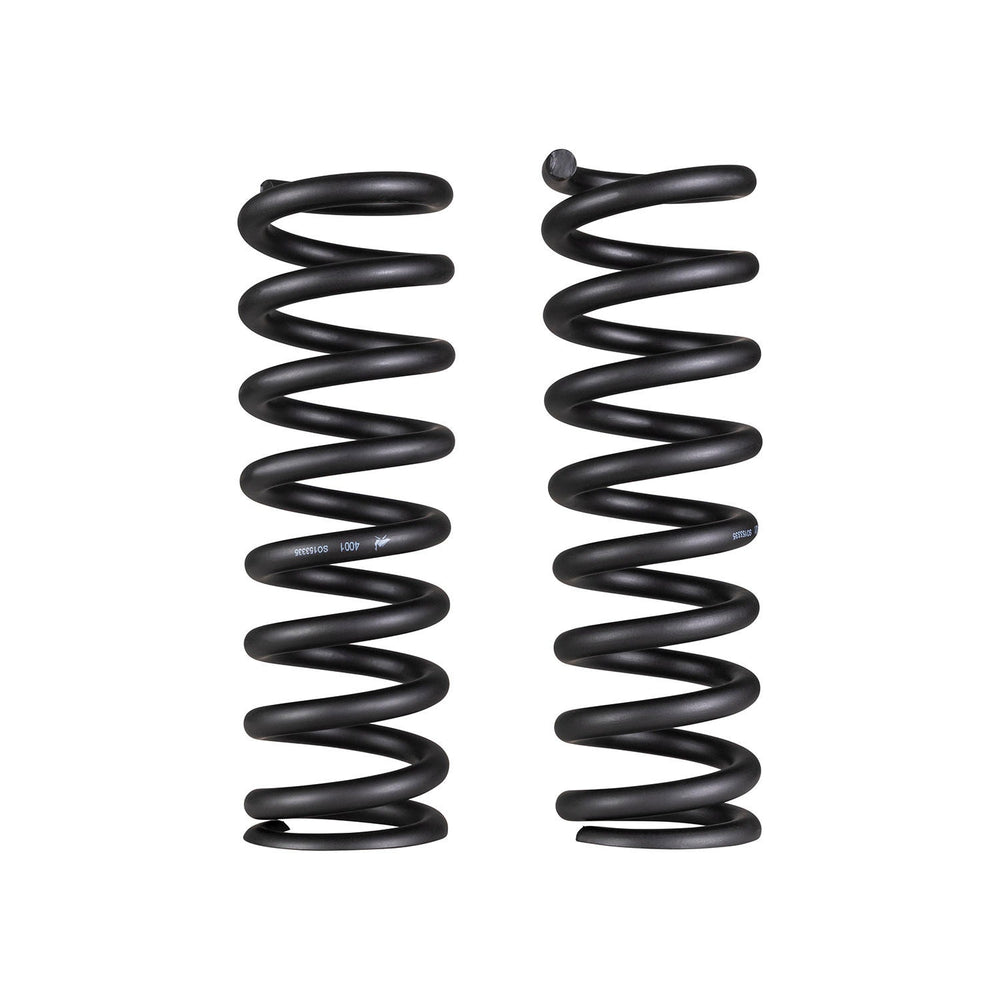

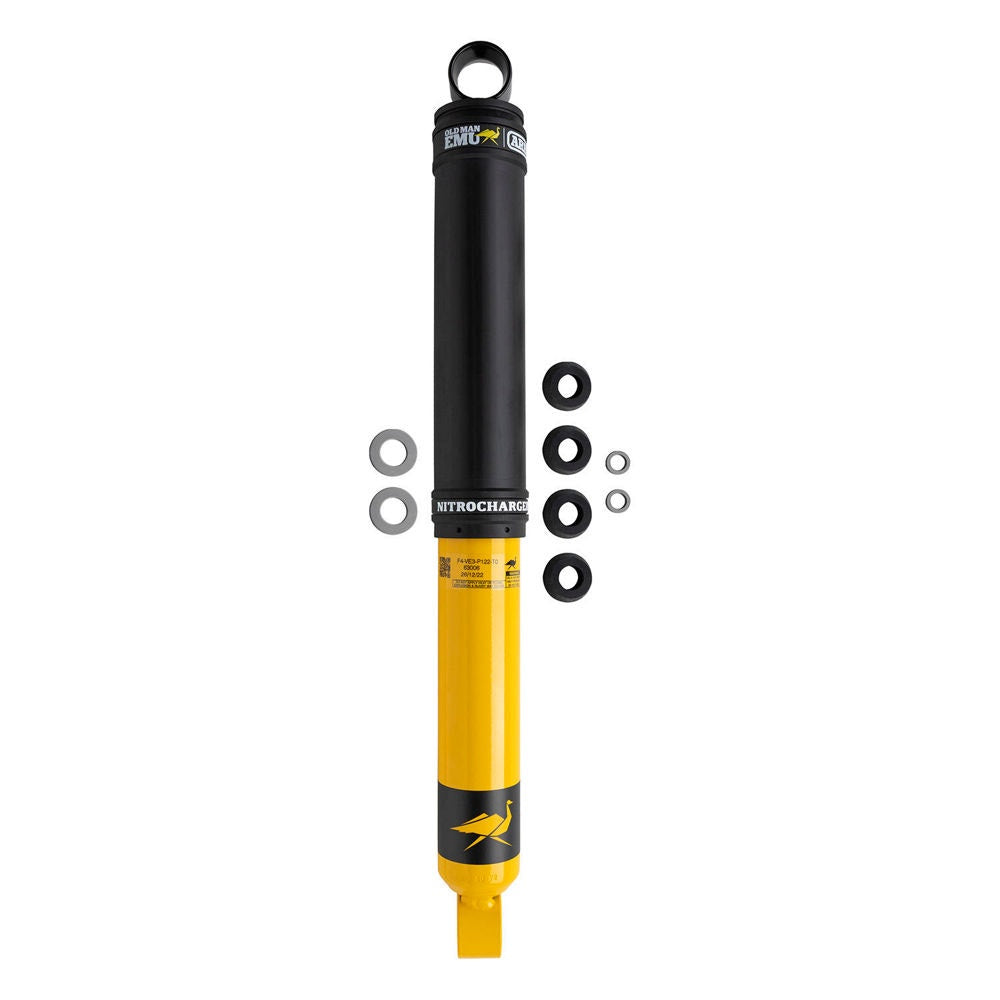

Front 4001 (103 N/mm) · Rear EL043R (30 N/mm) – EKNP00223 – EKNP00223: Front Coil Spring - 103N/mm Rate (4001); Nitrocharger Plus Rear Shock - Toyota Hilux (63006 x2); Nitrocharger Plus Front Strut - Toyota Hilux and Fortuner (93002 x2); Rear Leaf Spring 6 Leaf - Toyota Hilux (EL043R x2); Brake Proportioning Valve Relocation Kit - Toyota Hilux (FK59); Greasable Pin - Fixed End (OMEGP9); Greasable Shackle Kit - Holden Colorado, Isuzu D-MAX, Toyota Hilux (OMEGS14); Leaf Spring Bush Kit - Colorado, D-Max, Hilux (OMESB98 x2); Square U Bolt Washers and Nuts - Multi-Vehicle Fitment (OMEU53A x4).
Front 4001 (103 N/mm) · Rear EL043R (30 N/mm) – EKNP00227 – EKNP00227: Front Coil Spring - 103N/mm Rate (4001); Nitrocharger Plus Rear Shock - Toyota Hilux (63006 x2); Nitrocharger Plus Front Strut - Toyota Hilux and Fortuner (93002 x2); Rear Leaf Spring 6 Leaf - Toyota Hilux (EL043R x2); Brake Proportioning Valve Relocation Kit - Toyota Hilux (FK59); Greasable Pin - Fixed End (OMEGP9); Greasable Shackle Kit - Holden Colorado, Isuzu D-MAX, Toyota Hilux (OMEGS14); Leaf Spring Bush Kit - Colorado, D-Max, Hilux (OMESB98 x2); Square U Bolt Washers and Nuts - Multi-Vehicle Fitment (OMEU53A x4).
Front 4001 (103 N/mm) · Rear EL043R (30 N/mm) – EKNP01119 – EKNP01119: Front Coil Spring - 103N/mm Rate (4001); Nitrocharger Plus Rear Shock - Toyota Hilux (63006 x2); Nitrocharger Plus Front Strut - Toyota Hilux and Fortuner (93011 x2); Rear Leaf Spring 6 Leaf - Toyota Hilux (EL043R x2); Brake Proportioning Valve Relocation Kit - Toyota Hilux (FK59); Greasable Pin - Fixed End (OMEGP9); Greasable Shackle Kit - Holden Colorado, Isuzu D-MAX, Toyota Hilux (OMEGS14); Leaf Spring Bush Kit - Colorado, D-Max, Hilux (OMESB98 x2); Square U Bolt Washers and Nuts - Multi-Vehicle Fitment (OMEU53A x4).
Front 4001 (103 N/mm) · Rear EL044R (60 N/mm) – EKNP00224 – EKNP00224: Front Coil Spring - 103N/mm Rate (4001); Nitrocharger Plus Rear Shock - Toyota Hilux (63006 x2); Nitrocharger Plus Front Strut - Toyota Hilux and Fortuner (93002 x2); Rear Leaf Spring - Toyota Hilux (EL044R x2); Brake Proportioning Valve Relocation Kit - Toyota Hilux (FK59); Greasable Pin - Fixed End (OMEGP9); Greasable Shackle Kit - Holden Colorado, Isuzu D-MAX, Toyota Hilux (OMEGS14); Leaf Spring Bush Kit - Colorado, D-Max, Hilux (OMESB98 x2); Square U Bolt Washers and Nuts - Multi-Vehicle Fitment (OMEU53A x4).
Front 4001 (103 N/mm) · Rear EL044R (60 N/mm) – EKNP00228 – EKNP00228: Front Coil Spring - 103N/mm Rate (4001); Nitrocharger Plus Rear Shock - Toyota Hilux (63006 x2); Nitrocharger Plus Front Strut - Toyota Hilux and Fortuner (93002 x2); Rear Leaf Spring - Toyota Hilux (EL044R x2); Brake Proportioning Valve Relocation Kit - Toyota Hilux (FK59); Greasable Pin - Fixed End (OMEGP9); Greasable Shackle Kit - Holden Colorado, Isuzu D-MAX, Toyota Hilux (OMEGS14); Leaf Spring Bush Kit - Colorado, D-Max, Hilux (OMESB98 x2); Square U Bolt Washers and Nuts - Multi-Vehicle Fitment (OMEU53A x4).
Front 4001 (103 N/mm) · Rear EL044R (60 N/mm) – EKNP01120 – EKNP01120: Front Coil Spring - 103N/mm Rate (4001); Nitrocharger Plus Rear Shock - Toyota Hilux (63006 x2); Nitrocharger Plus Front Strut - Toyota Hilux and Fortuner (93011 x2); Rear Leaf Spring - Toyota Hilux (EL044R x2); Brake Proportioning Valve Relocation Kit - Toyota Hilux (FK59); Greasable Pin - Fixed End (OMEGP9); Greasable Shackle Kit - Holden Colorado, Isuzu D-MAX, Toyota Hilux (OMEGS14); Leaf Spring Bush Kit - Colorado, D-Max, Hilux (OMESB98 x2); Square U Bolt Washers and Nuts - Multi-Vehicle Fitment (OMEU53A x4).
Front 4001 (103 N/mm) · Rear EL071R (600KG, 45 N/mm) – EKNP00226 – EKNP00226: Front Coil Spring - 103N/mm Rate (4001); Nitrocharger Plus Shock, Rear - Toyota Hilux (63007 x2); Nitrocharger Plus Front Strut - Toyota Hilux and Fortuner (93002 x2); Leaf Spring 600KG - Toyota Hilux Rear (EL071R x2); Brake Proportioning Valve Relocation Kit - Toyota Hilux (FK59); Greasable Pin - Fixed End (OMEGP9); Greasable Shackle Kit - Holden Colorado, Isuzu D-MAX, Toyota Hilux (OMEGS14); Leaf Spring Bush Kit - Colorado, D-Max, Hilux (OMESB98 x2); Square U Bolt Washers and Nuts - Multi-Vehicle Fitment (OMEU53A x4).
Front 4001 (103 N/mm) · Rear EL071R (600KG, 45 N/mm) – EKNP00230 – EKNP00230: Front Coil Spring - 103N/mm Rate (4001); Nitrocharger Plus Shock, Rear - Toyota Hilux (63007 x2); Nitrocharger Plus Front Strut - Toyota Hilux and Fortuner (93002 x2); Leaf Spring 600KG - Toyota Hilux Rear (EL071R x2); Brake Proportioning Valve Relocation Kit - Toyota Hilux (FK59); Greasable Pin - Fixed End (OMEGP9); Greasable Shackle Kit - Holden Colorado, Isuzu D-MAX, Toyota Hilux (OMEGS14); Leaf Spring Bush Kit - Colorado, D-Max, Hilux (OMESB98 x2); Square U Bolt Washers and Nuts - Multi-Vehicle Fitment (OMEU53A x4).
Front 4001 (103 N/mm) · Rear EL071R (600KG, 45 N/mm) – EKNP01122 – EKNP01122: Front Coil Spring - 103N/mm Rate (4001); Nitrocharger Plus Shock, Rear - Toyota Hilux (63007 x2); Nitrocharger Plus Front Strut - Toyota Hilux and Fortuner (93011 x2); Leaf Spring 600KG - Toyota Hilux Rear (EL071R x2); Brake Proportioning Valve Relocation Kit - Toyota Hilux (FK59); Greasable Pin - Fixed End (OMEGP9); Greasable Shackle Kit - Holden Colorado, Isuzu D-MAX, Toyota Hilux (OMEGS14); Leaf Spring Bush Kit - Colorado, D-Max, Hilux (OMESB98 x2); Square U Bolt Washers and Nuts - Multi-Vehicle Fitment (OMEU53A x4).
Front 4001 (103 N/mm) · Springs EL045R (Heavy Duty, 63 N/mm) – EKNP00225 – EKNP00225: Front Coil Spring - 103N/mm Rate (4001); Nitrocharger Plus Shock, Rear - Toyota Hilux (63007 x2); Nitrocharger Plus Front Strut - Toyota Hilux and Fortuner (93002 x2); Leaf Spring, Heavy Duty - Toyota Hilux (EL045R x2); Brake Proportioning Valve Relocation Kit - Toyota Hilux (FK59); Greasable Pin - Fixed End (OMEGP9); Greasable Shackle Kit - Holden Colorado, Isuzu D-MAX, Toyota Hilux (OMEGS14); Leaf Spring Bush Kit - Colorado, D-Max, Hilux (OMESB98 x2); Square U Bolt Washers and Nuts - Multi-Vehicle Fitment (OMEU53A x4).
Front 4001 (103 N/mm) · Springs EL045R (Heavy Duty, 63 N/mm) – EKNP00229 – EKNP00229: Front Coil Spring - 103N/mm Rate (4001); Nitrocharger Plus Shock, Rear - Toyota Hilux (63007 x2); Nitrocharger Plus Front Strut - Toyota Hilux and Fortuner (93002 x2); Leaf Spring, Heavy Duty - Toyota Hilux (EL045R x2); Brake Proportioning Valve Relocation Kit - Toyota Hilux (FK59); Greasable Pin - Fixed End (OMEGP9); Greasable Shackle Kit - Holden Colorado, Isuzu D-MAX, Toyota Hilux (OMEGS14); Leaf Spring Bush Kit - Colorado, D-Max, Hilux (OMESB98 x2); Square U Bolt Washers and Nuts - Multi-Vehicle Fitment (OMEU53A x4).
Front 4001 (103 N/mm) · Springs EL045R (Heavy Duty, 63 N/mm) – EKNP01121 – EKNP01121: Front Coil Spring - 103N/mm Rate (4001); Nitrocharger Plus Shock, Rear - Toyota Hilux (63007 x2); Nitrocharger Plus Front Strut - Toyota Hilux and Fortuner (93011 x2); Leaf Spring, Heavy Duty - Toyota Hilux (EL045R x2); Brake Proportioning Valve Relocation Kit - Toyota Hilux (FK59); Greasable Pin - Fixed End (OMEGP9); Greasable Shackle Kit - Holden Colorado, Isuzu D-MAX, Toyota Hilux (OMEGS14); Leaf Spring Bush Kit - Colorado, D-Max, Hilux (OMESB98 x2); Square U Bolt Washers and Nuts - Multi-Vehicle Fitment (OMEU53A x4).
Front 4026 (103 N/mm) · Rear EL043R (30 N/mm) – EKNP00219 – EKNP00219: Front Coil Spring 103 N/mm (4026); Nitrocharger Plus Rear Shock - Toyota Hilux (63006 x2); Nitrocharger Plus Front Strut - Toyota Hilux and Fortuner (93002 x2); Rear Leaf Spring 6 Leaf - Toyota Hilux (EL043R x2); Brake Proportioning Valve Relocation Kit - Toyota Hilux (FK59); Greasable Pin - Fixed End (OMEGP9); Greasable Shackle Kit - Holden Colorado, Isuzu D-MAX, Toyota Hilux (OMEGS14); Leaf Spring Bush Kit - Colorado, D-Max, Hilux (OMESB98 x2); Square U Bolt Washers and Nuts - Multi-Vehicle Fitment (OMEU53A x4).
Front 4026 (103 N/mm) · Rear EL043R (30 N/mm) – EKNP00231 – EKNP00231: Front Coil Spring 103 N/mm (4026); Nitrocharger Plus Rear Shock - Toyota Hilux (63006 x2); Nitrocharger Plus Front Strut - Toyota Hilux and Fortuner (93011 x2); Rear Leaf Spring 6 Leaf - Toyota Hilux (EL043R x2); Brake Proportioning Valve Relocation Kit - Toyota Hilux (FK59); Greasable Pin - Fixed End (OMEGP9); Greasable Shackle Kit - Holden Colorado, Isuzu D-MAX, Toyota Hilux (OMEGS14); Leaf Spring Bush Kit - Colorado, D-Max, Hilux (OMESB98 x2); Square U Bolt Washers and Nuts - Multi-Vehicle Fitment (OMEU53A x4).
Front 4026 (103 N/mm) · Rear EL044R (60 N/mm) – EKNP00220 – EKNP00220: Front Coil Spring 103 N/mm (4026); Nitrocharger Plus Rear Shock - Toyota Hilux (63006 x2); Nitrocharger Plus Front Strut - Toyota Hilux and Fortuner (93002 x2); Rear Leaf Spring - Toyota Hilux (EL044R x2); Brake Proportioning Valve Relocation Kit - Toyota Hilux (FK59); Greasable Pin - Fixed End (OMEGP9); Greasable Shackle Kit - Holden Colorado, Isuzu D-MAX, Toyota Hilux (OMEGS14); Leaf Spring Bush Kit - Colorado, D-Max, Hilux (OMESB98 x2); Square U Bolt Washers and Nuts - Multi-Vehicle Fitment (OMEU53A x4).
Front 4026 (103 N/mm) · Rear EL044R (60 N/mm) – EKNP00232 – EKNP00232: Front Coil Spring 103 N/mm (4026); Nitrocharger Plus Rear Shock - Toyota Hilux (63006 x2); Nitrocharger Plus Front Strut - Toyota Hilux and Fortuner (93011 x2); Rear Leaf Spring - Toyota Hilux (EL044R x2); Brake Proportioning Valve Relocation Kit - Toyota Hilux (FK59); Greasable Pin - Fixed End (OMEGP9); Greasable Shackle Kit - Holden Colorado, Isuzu D-MAX, Toyota Hilux (OMEGS14); Leaf Spring Bush Kit - Colorado, D-Max, Hilux (OMESB98 x2); Square U Bolt Washers and Nuts - Multi-Vehicle Fitment (OMEU53A x4).
Front 4026 (103 N/mm) · Rear EL071R (600KG, 45 N/mm) – EKNP00222 – EKNP00222: Front Coil Spring 103 N/mm (4026); Nitrocharger Plus Shock, Rear - Toyota Hilux (63007 x2); Nitrocharger Plus Front Strut - Toyota Hilux and Fortuner (93002 x2); Leaf Spring 600KG - Toyota Hilux Rear (EL071R x2); Brake Proportioning Valve Relocation Kit - Toyota Hilux (FK59); Greasable Pin - Fixed End (OMEGP9); Greasable Shackle Kit - Holden Colorado, Isuzu D-MAX, Toyota Hilux (OMEGS14); Leaf Spring Bush Kit - Colorado, D-Max, Hilux (OMESB98 x2); Square U Bolt Washers and Nuts - Multi-Vehicle Fitment (OMEU53A x4).
Front 4026 (103 N/mm) · Rear EL071R (600KG, 45 N/mm) – EKNP00234 – EKNP00234: Front Coil Spring 103 N/mm (4026); Nitrocharger Plus Shock, Rear - Toyota Hilux (63007 x2); Nitrocharger Plus Front Strut - Toyota Hilux and Fortuner (93011 x2); Leaf Spring 600KG - Toyota Hilux Rear (EL071R x2); Brake Proportioning Valve Relocation Kit - Toyota Hilux (FK59); Greasable Pin - Fixed End (OMEGP9); Greasable Shackle Kit - Holden Colorado, Isuzu D-MAX, Toyota Hilux (OMEGS14); Leaf Spring Bush Kit - Colorado, D-Max, Hilux (OMESB98 x2); Square U Bolt Washers and Nuts - Multi-Vehicle Fitment (OMEU53A x4).
Front 4026 (103 N/mm) · Springs EL045R (Heavy Duty, 63 N/mm) – EKNP00221 – EKNP00221: Front Coil Spring 103 N/mm (4026); Nitrocharger Plus Shock, Rear - Toyota Hilux (63007 x2); Nitrocharger Plus Front Strut - Toyota Hilux and Fortuner (93002 x2); Leaf Spring, Heavy Duty - Toyota Hilux (EL045R x2); Brake Proportioning Valve Relocation Kit - Toyota Hilux (FK59); Greasable Pin - Fixed End (OMEGP9); Greasable Shackle Kit - Holden Colorado, Isuzu D-MAX, Toyota Hilux (OMEGS14); Leaf Spring Bush Kit - Colorado, D-Max, Hilux (OMESB98 x2); Square U Bolt Washers and Nuts - Multi-Vehicle Fitment (OMEU53A x4).
Front 4026 (103 N/mm) · Springs EL045R (Heavy Duty, 63 N/mm) – EKNP00233 – EKNP00233: Front Coil Spring 103 N/mm (4026); Nitrocharger Plus Shock, Rear - Toyota Hilux (63007 x2); Nitrocharger Plus Front Strut - Toyota Hilux and Fortuner (93011 x2); Leaf Spring, Heavy Duty - Toyota Hilux (EL045R x2); Brake Proportioning Valve Relocation Kit - Toyota Hilux (FK59); Greasable Pin - Fixed End (OMEGP9); Greasable Shackle Kit - Holden Colorado, Isuzu D-MAX, Toyota Hilux (OMEGS14); Leaf Spring Bush Kit - Colorado, D-Max, Hilux (OMESB98 x2); Square U Bolt Washers and Nuts - Multi-Vehicle Fitment (OMEU53A x4).

Brand: Old Man Emu (by ARB)
Part numbers: Front 4001 (103 N/mm) · Rear EL043R (30 N/mm) – EKNP00223 – EKNP00223; Front 4001 (103 N/mm) · Rear EL043R (30 N/mm) – EKNP00227 – EKNP00227; Front 4001 (103 N/mm) · Rear EL043R (30 N/mm) – EKNP01119 – EKNP01119; Front 4001 (103 N/mm) · Rear EL044R (60 N/mm) – EKNP00224 – EKNP00224; Front 4001 (103 N/mm) · Rear EL044R (60 N/mm) – EKNP00228 – EKNP00228; Front 4001 (103 N/mm) · Rear EL044R (60 N/mm) – EKNP01120 – EKNP01120; Front 4001 (103 N/mm) · Rear EL071R (600KG, 45 N/mm) – EKNP00226 – EKNP00226; Front 4001 (103 N/mm) · Rear EL071R (600KG, 45 N/mm) – EKNP00230 – EKNP00230; Front 4001 (103 N/mm) · Rear EL071R (600KG, 45 N/mm) – EKNP01122 – EKNP01122; Front 4001 (103 N/mm) · Springs EL045R (Heavy Duty, 63 N/mm) – EKNP00225 – EKNP00225; Front 4001 (103 N/mm) · Springs EL045R (Heavy Duty, 63 N/mm) – EKNP00229 – EKNP00229; Front 4001 (103 N/mm) · Springs EL045R (Heavy Duty, 63 N/mm) – EKNP01121 – EKNP01121; Front 4026 (103 N/mm) · Rear EL043R (30 N/mm) – EKNP00219 – EKNP00219; Front 4026 (103 N/mm) · Rear EL043R (30 N/mm) – EKNP00231 – EKNP00231; Front 4026 (103 N/mm) · Rear EL044R (60 N/mm) – EKNP00220 – EKNP00220; Front 4026 (103 N/mm) · Rear EL044R (60 N/mm) – EKNP00232 – EKNP00232; Front 4026 (103 N/mm) · Rear EL071R (600KG, 45 N/mm) – EKNP00222 – EKNP00222; Front 4026 (103 N/mm) · Rear EL071R (600KG, 45 N/mm) – EKNP00234 – EKNP00234; Front 4026 (103 N/mm) · Springs EL045R (Heavy Duty, 63 N/mm) – EKNP00221 – EKNP00221; Front 4026 (103 N/mm) · Springs EL045R (Heavy Duty, 63 N/mm) – EKNP00233 – EKNP00233

Freight is quoted at checkout. Fitting is available at our Warwick Farm workshop – enquire for a fitted price.
