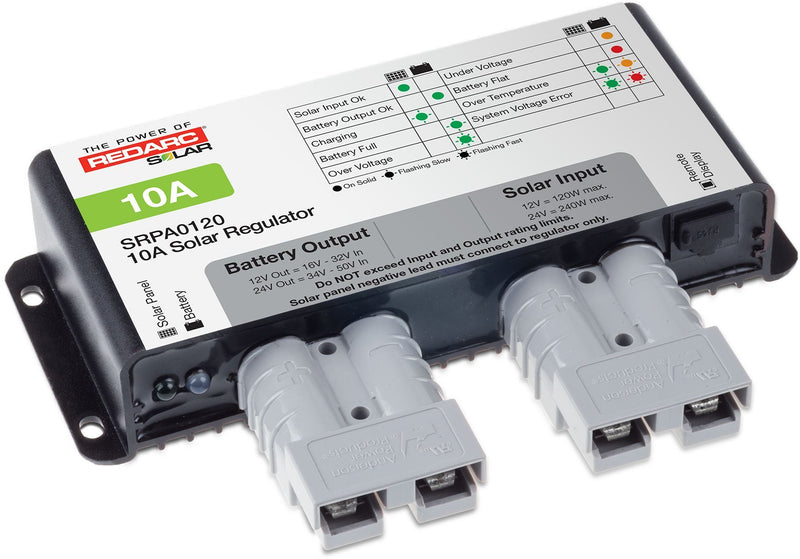

REDARC’S newly designed 10 Amp Solar Regulator comes with the Anderson™ SB™50 connectors and works with the 115 watt SunPower® and the 112 watt Amorphous cell blanket. REDARC’s 10 Amp Solar Regulator acts as the go between to transfer power generated from the panels to the battery.
Featuring multistage charging; boost. absorption and float. REDARC’s 10 Amp Solar Regulator ensures that the correct charge is supplied safely and efficiently to the battery and will protect it from over charging.
It will work with multiple chemistry batteries including AGM. Standard and Calcium*. and is ideal for permanent installation or portable systems. and has multiple levels of protection including over temperature. over charge and reverse polarity.
Features
Multi-stage charging- boost. absorption. and float
Works with multiple battery types (REDARC Solar Remote Monitor required)
Ideal for permanent installation or portable systems
Multiple levels of protection – over temperature. over charge. reverse polarity
Genuine Industry Standard Anderson™ SB™50 plug connection
Optional Monitor
*Battery default setting is AGM. REDARC recommends the purchase of the REDARC Solar Remote Monitor to change battery types and configuration settings.
Input (Operating) Voltage :
12V/24V
Maximum Power Rating :
120/240W
Output Current Rating (Cont.) :
10A
Charge Type :
PWM 50Hz
Waterproof IP rating :
Yes - IP55
Operating Temperature :
-35°C to 55°C
Height (mm) :
28
Length (mm) :
153
Width (mm) :
98
Weight (kg) :
0.48
Warranty :
2 Years
Featuring multistage charging; boost. absorption and float. REDARC’s 10 Amp Solar Regulator ensures that the correct charge is supplied safely and efficiently to the battery and will protect it from over charging.
It will work with multiple chemistry batteries including AGM. Standard and Calcium*. and is ideal for permanent installation or portable systems. and has multiple levels of protection including over temperature. over charge and reverse polarity.
Features
Multi-stage charging- boost. absorption. and float
Works with multiple battery types (REDARC Solar Remote Monitor required)
Ideal for permanent installation or portable systems
Multiple levels of protection – over temperature. over charge. reverse polarity
Genuine Industry Standard Anderson™ SB™50 plug connection
Optional Monitor
*Battery default setting is AGM. REDARC recommends the purchase of the REDARC Solar Remote Monitor to change battery types and configuration settings.
Input (Operating) Voltage :
12V/24V
Maximum Power Rating :
120/240W
Output Current Rating (Cont.) :
10A
Charge Type :
PWM 50Hz
Waterproof IP rating :
Yes - IP55
Operating Temperature :
-35°C to 55°C
Height (mm) :
28
Length (mm) :
153
Width (mm) :
98
Weight (kg) :
0.48
Warranty :
2 Years
