20A In-Vehicle DC Battery Charger (Ignition Control)
- Regular price
- $646.30
- Regular price
-
$0.00 - Sale price
- $646.30
- Unit price
- per
Sku:
BCDC1220-IGN
Availability:
In Stock
Couldn't load pickup availability
Shipping & Returns
Turnaround
All orders are shipped within 1-2 weeks.
If a tracking number is provided by the shipping carrier, we will update your order with the tracking information. Please note that some orders may not have tracking numbers due to provider options.
Shipping Rates
The rate charged for the shipping of your order is based on the weight of your products, and your location. Before the final checkout page you will be shown what the cost of shipping will be, and you will have a chance to not place your order if you decide not to.
Delivery charges
What is Rural Delivery fee?
An estimated delivery charge will apply to customers ordering from rural areas. Prior to processing you order on checkout, an alert will appear that will advise customers to call MYTUFF4X4 to obtain an accurate cost of delivery. Please contact MYTUFF4X4 to see a list of Rural and Remote areas. Some areas may take longer due to the frequency of deliveries to the delivery Post code. Our system calculates this estimated price considering the total amount of time to process your order including: packaging, transit time to the delivery provider, and transit time to the delivery address.
When placing your order, we consider these factors when calculating the Estimated Delivery prices :
- Post code of the nominated delivery address.
- Transit Time: The amount of time it takes your order to leave our distribution centre and arrive at the local delivery carrier.
What additional fees may apply?
There may be circumstances that require additional payment by you if the conditions mentioned have not been met or you require special services outside of our standard delivery.
Back Orders
If an item goes on back order we will ship you the part of your order that is in stock. When the item becomes available we will ship you the rest of your order. You will not be charged any additional shipping and handling for the second shipment.
Delivery Insurance
Goods that are shipped on behalf of the client by Mytuff4x4 are not insured unless the client notifies us prior to delivery and pays for delivery insurance. Mytuff4x4 is not responsible for goods damaged in transit if insurance is not paid for by the customer prior to delivery.

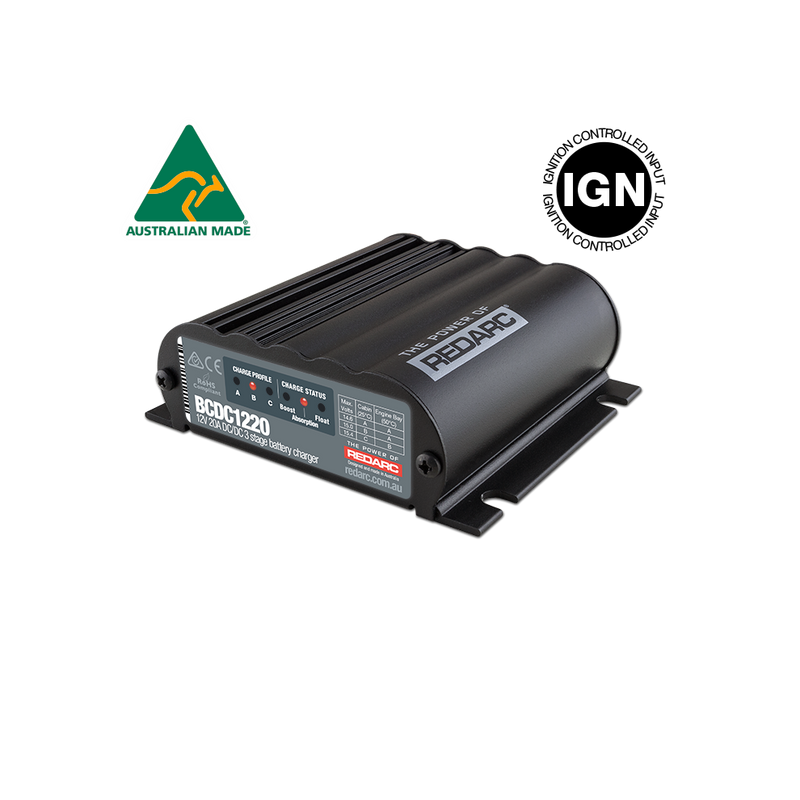

The REDARC BCDC1220-IGN is a 12 Volt 20 Amp In-vehicle DC DC charger featuring technology designed to fully charge a lead acid auxiliary battery. It’s suitable for vehicles fitted with an ECU-controlled variable voltage alternator.
The BCDC1220-IGN features a lower voltage setting so it can continue to operate with a low input voltage from the alternator.
The BCDC dual battery charger will work with a wide operating range (9 – 32V) giving the option of charging from both 12V and 24V vehicle systems.
By providing a unique charging profile to each specific battery type. the BCDC charger is able to achieve and maintain an optimal charge in auxiliary batteries whilst on the move. It will allow you to charge an auxiliary battery that is a different characteristic to the start battery.
The unit will act as a dual battery isolator and protect the start battery. should the voltage get too low.
Proven and Tested
Compact in size. easy to install and fully sealed - water. dust and vibration are no match for the in-vehicle DC smart charger. It can handle the roughest tracks in outback Australia and even deep water crossings at Cape York. The BCDC DC to DC battery charger is suitable for installation in harsh environments or marine applications.
With an ever-increasing number of electrical accessories and devices being used when travelling around Australia. along with more complex vehicle electrical systems than seen in years gone by. having the right battery charging solution has never been more important.
Designed. built and tested in Australia for our unique conditions. the BCDC in-vehicle DC to DC charger won’t let you down.
Features
Input (Operating) Voltage :
9 - 32VDC
Maximum Charging Voltage :
15.4V
Output System Voltage :
12VDC
Output Fuse Rating :
40A
Standby Current Draw :
<100mA
Output Current Rating (Cont.) :
20A
Input Fuse Rating :
40A
Output Power :
300W
Length (mm) :
120
Warranty :
2 Years
Width (mm) :
100
Height (mm) :
37
Weight (kg) :
0.485
Type Approval :
CE
The BCDC1220-IGN features a lower voltage setting so it can continue to operate with a low input voltage from the alternator.
The BCDC dual battery charger will work with a wide operating range (9 – 32V) giving the option of charging from both 12V and 24V vehicle systems.
By providing a unique charging profile to each specific battery type. the BCDC charger is able to achieve and maintain an optimal charge in auxiliary batteries whilst on the move. It will allow you to charge an auxiliary battery that is a different characteristic to the start battery.
The unit will act as a dual battery isolator and protect the start battery. should the voltage get too low.
Proven and Tested
Compact in size. easy to install and fully sealed - water. dust and vibration are no match for the in-vehicle DC smart charger. It can handle the roughest tracks in outback Australia and even deep water crossings at Cape York. The BCDC DC to DC battery charger is suitable for installation in harsh environments or marine applications.
With an ever-increasing number of electrical accessories and devices being used when travelling around Australia. along with more complex vehicle electrical systems than seen in years gone by. having the right battery charging solution has never been more important.
Designed. built and tested in Australia for our unique conditions. the BCDC in-vehicle DC to DC charger won’t let you down.
Features
- Multi-Stage DC to DC Battery Charger
- Start Battery Isolator
- Fully sealed
- No fan for super-quiet operation
- Charges AGM. Gel. Calcium content. VRLA and Standard Lead Acid batteries
- Works with Variable Voltage Alternators
Mounting Brackets
REDARC offer a range of vehicle-specific mounting brackets for our BCDC DC-DC Charger range. The 304 stainless steel bracket allows installation into the front of the vehicle for cooler airflow. ensuring optimal performance. They have been designed to fit existing mounting points in the vehicle.
Input (Operating) Voltage :
9 - 32VDC
Maximum Charging Voltage :
15.4V
Output System Voltage :
12VDC
Output Fuse Rating :
40A
Standby Current Draw :
<100mA
Output Current Rating (Cont.) :
20A
Input Fuse Rating :
40A
Output Power :
300W
Length (mm) :
120
Warranty :
2 Years
Width (mm) :
100
Height (mm) :
37
Weight (kg) :
0.485
Type Approval :
CE
