24V 20A In-Vehicle DC Battery Charger

Regular price
$949.90
Regular price
$0.00
Sale price
$949.90
Sku: BCDC2420
Availability: In Stock

Shipping & Returns

Turnaround

All orders are shipped within 1-2 weeks.

If a tracking number is provided by the shipping carrier, we will update your order with the tracking information. Please note that some orders may not have tracking numbers due to provider options.

Shipping Rates

The rate charged for the shipping of your order is based on the weight of your products, and your location. Before the final checkout page you will be shown what the cost of shipping will be, and you will have a chance to not place your order if you decide not to.

Delivery charges

What is Rural Delivery fee?
An estimated delivery charge will apply to customers ordering from rural areas. Prior to processing you order on checkout, an alert will appear that will advise customers to call MYTUFF4X4 to obtain an accurate cost of delivery. Please contact MYTUFF4X4 to see a list of Rural and Remote areas. Some areas may take longer due to the frequency of deliveries to the delivery Post code. Our system calculates this estimated price considering the total amount of time to process your order including: packaging, transit time to the delivery provider, and transit time to the delivery address.

When placing your order, we consider these factors when calculating the Estimated Delivery prices :

  • Post code of the nominated delivery address.
  • Transit Time: The amount of time it takes your order to leave our distribution centre and arrive at the local delivery carrier.

What additional fees may apply?
There may be circumstances that require additional payment by you if the conditions mentioned have not been met or you require special services outside of our standard delivery.

Back Orders

If an item goes on back order we will ship you the part of your order that is in stock. When the item becomes available we will ship you the rest of your order. You will not be charged any additional shipping and handling for the second shipment.

Delivery Insurance

Goods that are shipped on behalf of the client by Mytuff4x4 are not insured unless the client notifies us prior to delivery and pays for delivery insurance. Mytuff4x4 is not responsible for goods damaged in transit if insurance is not paid for by the customer prior to delivery.

1

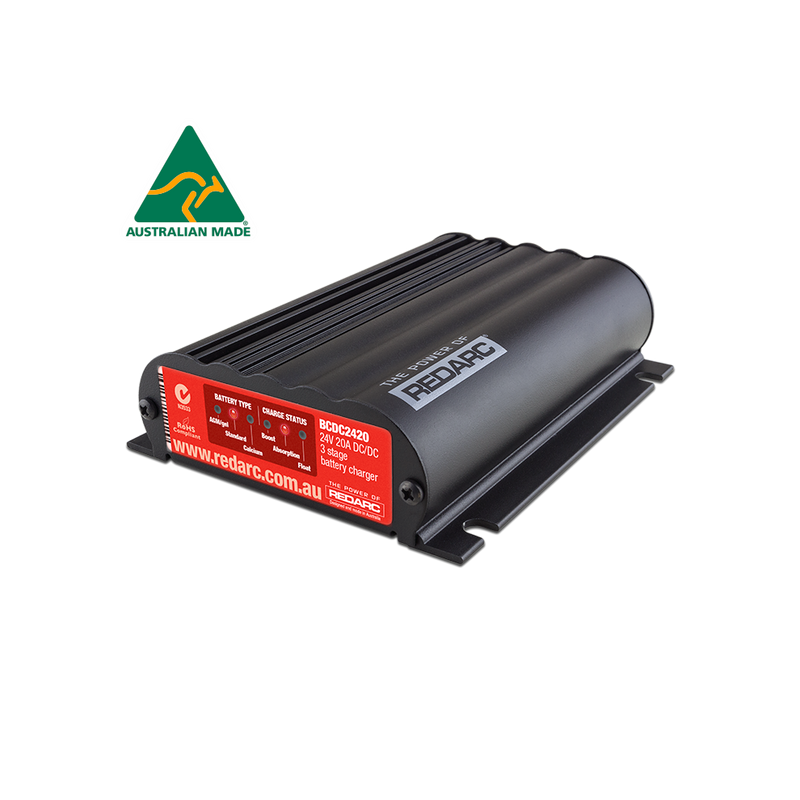

The REDARC BCDC2420 In-vehicle battery charger is a 24 Volt 20 Amp. three stage DC DC charger that operates from a vehicle input between 9 and 32 Volts DC. It is designed to charge any commonly used automotive 24V battery system to an optimal level with chemistry specific battery charging algorithms.

The BCDC2420 features a multi-stage charging algorithm. with a 24V charging output the DC to DC charger is perfectly suited to trucking applications such as charging battery banks for tailgate lifters and side curtains.

The BCDC2420 features a MPPT Solar Regulator. which means 12V solar panels can be used to charge your 24V auxiliary batteries. The MPPT Solar charging algorithm extracts the maximum available power from your solar panels at any given time.

Features

  • Multi-Stage DC to DC Battery Charger

  • MPPT Solar Regulator

  • Start Battery Isolator

  • Fully sealed

  • No fan for super-quiet operation

  • Charges AGM. Gel. Calcium content. VRLA and Standard Lead Acid batteries



Mounting Brackets


REDARC offer a range of vehicle-specific mounting brackets for our BCDC DC-DC Charger range. The 304 stainless steel bracket allows installation into the front of the vehicle for cooler airflow. ensuring optimal performance. They have been designed to fit existing mounting points in the vehicle.

Input (Operating) Voltage :
9 - 32VDC

Maximum Charging Voltage :
30.6V

Output Current Rating (Cont.) :
20A

Input Fuse Rating :
50A

Output Fuse Rating :
30A

Warranty :
2 Years

Standby Current Draw :

<50mA



Output System Voltage :
24VDC

Output Power :
600W

Length (mm) :
150

Width (mm) :
120

Height (mm) :
37

Weight (kg) :
0.68

Type Approval :
E and CE
