BASE PLATE – “BIG BOY” – 205MMX460MM
- Regular price
- $310.00
- Regular price
-
$0.00 - Sale price
- $310.00
- Unit price
- per
Sku: SB112
Availability: In Stock
Couldn't load pickup availability
Shipping & Returns
Turnaround
All orders are shipped within 1-2 weeks.
If a tracking number is provided by the shipping carrier, we will update your order with the tracking information. Please note that some orders may not have tracking numbers due to provider options.
Shipping Rates
The rate charged for the shipping of your order is based on the weight of your products, and your location. Before the final checkout page you will be shown what the cost of shipping will be, and you will have a chance to not place your order if you decide not to.
Delivery charges
What is Rural Delivery fee?
An estimated delivery charge will apply to customers ordering from rural areas. Prior to processing you order on checkout, an alert will appear that will advise customers to call MYTUFF4X4 to obtain an accurate cost of delivery. Please contact MYTUFF4X4 to see a list of Rural and Remote areas. Some areas may take longer due to the frequency of deliveries to the delivery Post code. Our system calculates this estimated price considering the total amount of time to process your order including: packaging, transit time to the delivery provider, and transit time to the delivery address.
When placing your order, we consider these factors when calculating the Estimated Delivery prices :
- Post code of the nominated delivery address.
- Transit Time: The amount of time it takes your order to leave our distribution centre and arrive at the local delivery carrier.
What additional fees may apply?
There may be circumstances that require additional payment by you if the conditions mentioned have not been met or you require special services outside of our standard delivery.
Back Orders
If an item goes on back order we will ship you the part of your order that is in stock. When the item becomes available we will ship you the rest of your order. You will not be charged any additional shipping and handling for the second shipment.
Delivery Insurance
Goods that are shipped on behalf of the client by Mytuff4x4 are not insured unless the client notifies us prior to delivery and pays for delivery insurance. Mytuff4x4 is not responsible for goods damaged in transit if insurance is not paid for by the customer prior to delivery.
Four wheel drivers with lifted vehicles are often faced with quite a significant dilemma when out in the bush
with a flat… their factory bottle jack is no longer effective! They have lifted their vehicles 50-100mm and the
bottle jack ram does not extend high enough to get the tyre off the ground.
To get around this the current options are to:
• Get a lump of wood or cribbing blocks to place under the bottle jack (dangerous because
instability could result in collapse)
• Purchase & carry a new bottle jack/trolley jack with a ram length extendable to suit their lift
(expensive & big/heavy to carry)
• Use a High Lift jack or similar (unstable at height. sometimes difficult to use. not everyone has one)
Roadsafe have a program in the form of ‘Bottle Jack Extensions & Jack accessories’.
All aimed at making the process of jacking up vehicles a much safer and more secure one.
Roadsafe Bottle Jack Extensions are sized to slip over the ram of the standard bottle jack and
basically act as a ram extension. adding length to the ram so the jack can sit firmly on the ground
while the load is lifted. The parts slot snugly together. which makes the jacking option much safer
and less likely to tip and become unstable.
The standard extensions have been designed with 35.5mm ID so suit for ram diameters of
between 28-35mm (6 ton bottle jack typically have a 1.25” (31.75mm) ram diameter). With
adaptors available to suit for 35.5mm-39.5mm. 40mm-44.5mm & 45-49.5mm.
Extensions have been designed allowing for 75mm (3”). 150mm (6”) & 225-305mm adjustable
(up to 12”). The extensions have been designed to slot together snugly. so you can interchange
the pieces to get the height & configuration required. Using all three extensions together will give
530mm (20”) of extension.
Jack pads have also been included in the range. The jack pads simply slot onto the ram extensions
(or adaptors) to provide a flat 100x100mm head. or an angled head suited for axle tubes and other
rounded surfaces (ie. rock sliders etc.) up to 80mm in diameter. The pads increase the jacking
stability and serve to distribute the load over a greater surface area to minimize damage to the
specific area being lifted.
Another issue experienced when jacking. especially in the terrain four wheel drivers take their
vehicles (sand. mud. dirt) is the jack sinking into the ground under load. To alleviate this the
smaller footprint of the jack needs increasing. Included in the program is an upgraded base plate
measuring a whopping 205x460mm.

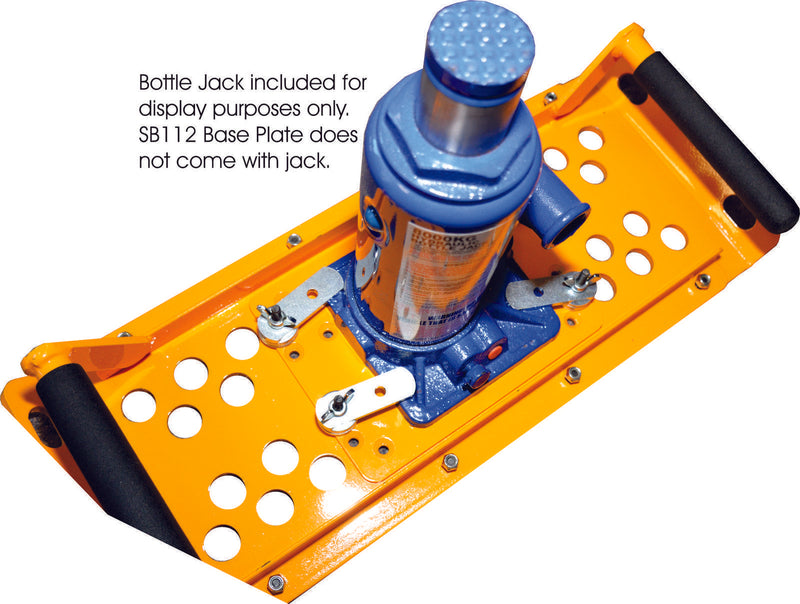

The large 205x460mm ‘Big Boy’ plate. has been designed to provide the ultimate in jack stability.
The ‘Big Boy’ gives you 940 square centimetres (145 square inches) of jacking safety! The widened
& lengthened base is 4 times more stable than the jack on its own. and the size of the base makes
supporting loads on soft surfaces very easy - with the footprint up to (depending upon the original
jack size) 10 times larger. For example a typical 6 ton bottle jack lifting 2700kgs would have a
ground loading of approx. 28kg per square centimetre – but with the ‘Big Boy’ that is reduced to
only 2.8kg per square centimetre. The base is shaped with ‘sled’ style ends & convenient handles
so it can be easily positioned & carried.
