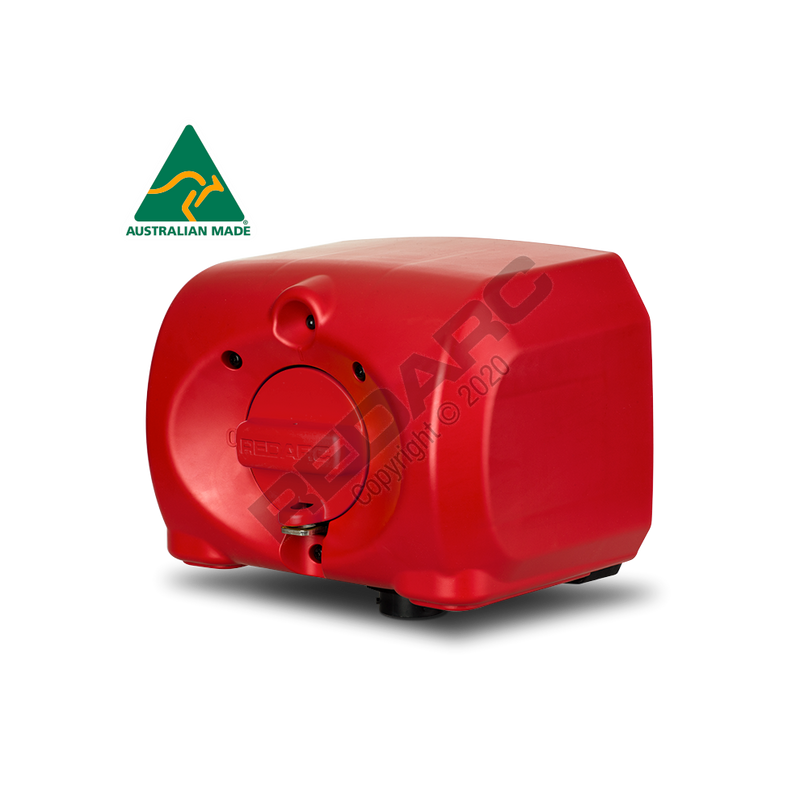

The REDARC Battery Master Isolation Switch is designed to isolate both battery circuits. with positive and negative isolation.
Released in September 2020. the V2 variant of this product supersedes the previous model providing installation compliance with the Dangerous Goods Standard AS2809:2020.
The Battery Master Isolation Switch safely isolates vehicle batteries and ensures reliable performance when the vehicle is operating.
The REDARC BMIS will also ensure that no loads are drawn from the vehicle whilst not in use. thereby reducing flat battery faults.
The Battery Master Isolation Switch also features an ISO 26262 rated dual redundancy system to avoid false triggering.
The Battery Master Isolator Switch by REDARC. fitted as OE at Kenworth is now available for heavy vehicle applications.
The REDARC BMIS4PNV2KIT also includes a BMIS-CK connector kit as standard if the BMIS is not installed on a Kenworth.
For retrofitting installations. REDARC recommends the purchase of the BMIS-AP adaptor plate.
Both the BM1S-CK connector kit and the BM1S-AP can be purchased as separate stand-alone accessories through your local distributor.
Benefits
Compatible with existing roll-over sensors
Reviewed by independent heavy vehicle experts
Durable. UV resistant housing. resistant to rocks and water
Easy to install from new or as a retrofit
Features
Rated IP66. IP67 & IP69K
Dual redundancy feature to avoid false triggering
Continuous self-checking function
In-built lockout capability
In-built diagnoses from external looms and remote actuating devices
Connection :
AU/NZ Power Socket
Input (Operating) Voltage :
9V to 32V (12V or 24V systems)
Current Rating (Continuous 20°C) :
400A per pole
Current Rating (20s.20°C) :
3500A per pole
Waterproof IP rating :
IP66. IP67 & IP69K
Length (mm) :
218
Width (mm) :
158
Height (mm) :
188
Weight (kg) :
3.5
