Compatible Vehicles (4×4 Only)

• Universal fit for 4×4 vehicles with suitable mounting points (bull bars, nudge bars, or light bars)

• Designed for use with VBP wiring/controller system

• Suitable for 12V and 24V electrical systems

⚠️ Requires compatible VBP controller system for full beam and brightness adjustment functionality.

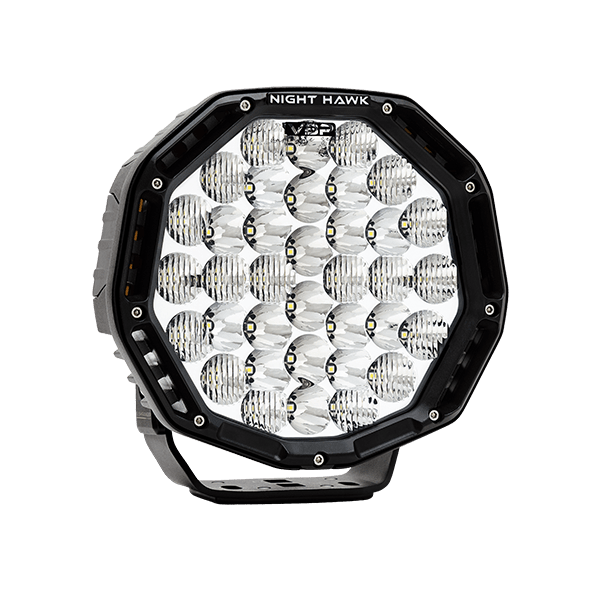

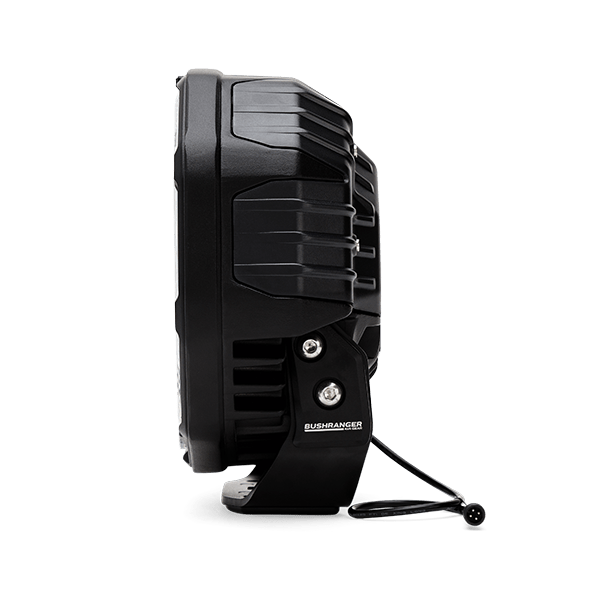

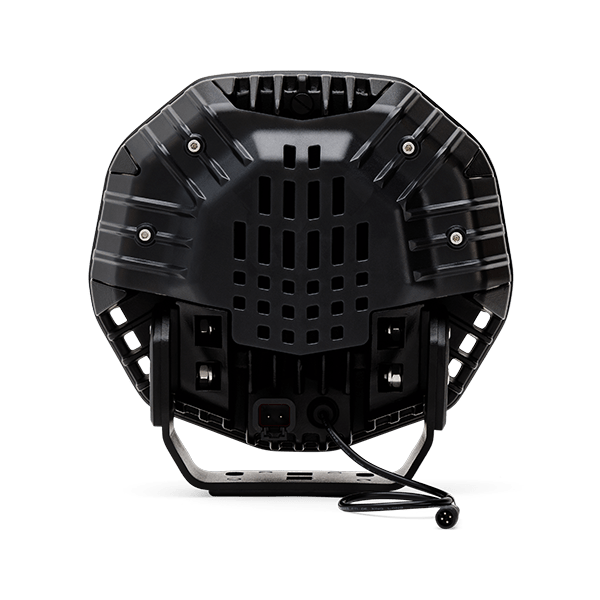

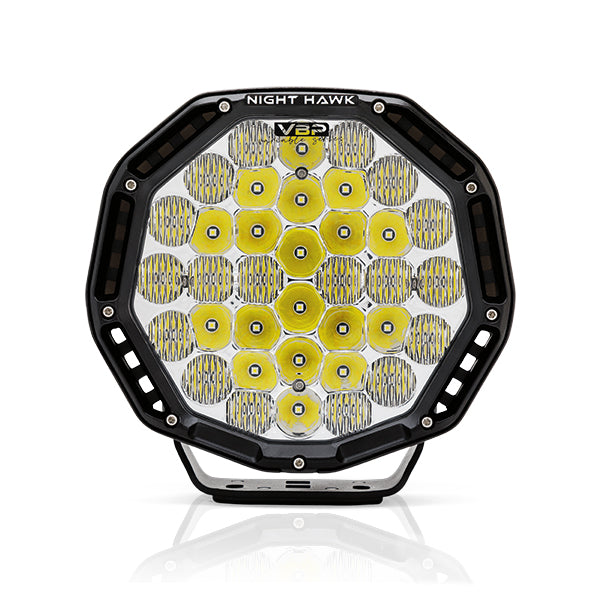

The Bushranger Night Hawk VBP 9" Driving Light is a cutting-edge lighting solution that delivers ultimate control over both beam pattern and brightness, giving you unmatched adaptability for any driving condition.

Designed and engineered in Australia, the VBP (Variable Beam Pattern) Series allows you to seamlessly adjust from full spot beam to full flood beam, with 8 beam pattern settings and 8 intensity levels. Controlled via a dual-dial backlit controller, you can fine-tune your lighting output on the fly—perfect for changing terrains, weather conditions, and driving environments.

Built with a bold, modern design and rugged construction, this high-performance driving light uses genuine CREE LEDs and advanced electronics to deliver powerful, consistent illumination. With integrated temperature control, smart protection systems, and superior sealing, the VBP light is built to perform in the harshest off-road conditions.

Key Features

Variable Beam Pattern Control

• Adjustable beam from full spot to full flood

• 8 beam pattern settings for complete flexibility

• Optimised lighting for highways, tracks, and technical terrain

Adjustable Light Intensity

• 8 brightness levels for customised output

• Dual-dial backlit controller for on-the-fly adjustments

• Tailor lighting to suit visibility and driver preference

High Performance LED Output

• 36 genuine CREE high-output LEDs

• 10,800 effective lumens

• 5700K colour temperature for clear, natural white light

Advanced Electronics System

• Built-in transistor switching (no external relay required)

• PWM output control for precise adjustments

• Overvoltage and reverse polarity protection

• Reduced electrical complexity for easier installation

Active Temperature Control

• Intelligent thermal monitoring system

• Maintains optimal LED performance under all conditions

• Enhanced cooling for consistent light output

Heavy-Duty Construction

• Pressure die-cast aluminium housing

• 4mm stainless steel mounting brackets

• Built to handle extreme off-road environments

Durable Exterior

• Hard-coated polycarbonate lens for scratch resistance

• UV-stable powder-coated finish

• Long-term durability in harsh conditions

Water & Dustproof

• IP67 and IP69K rated for full environmental protection

• Waterproof and submersible design

• GORE breather system prevents internal condensation

What’s Included

• 9” Night Hawk VBP Driving Light (x1)

Specifications

• Power: 170W

• Current Draw: 11.9A @ 14.4V

• Voltage Range: 10–30V DC

• LED Type: 36 x CREE LEDs

• Effective Lumens: 10,800

• Colour Temperature: 5700K

• Power Plug: Deutsch DTP

• Control Plug: 4-pin round

• Waterproof Rating: IP67 / IP69K

• Compliance: CE, UNECE R10, RoHS, SAE J575

• Weight: 3.2kg

Installation Notes

This driving light requires a compatible VBP controller system to access full beam pattern and brightness adjustment features.

Mounts to compatible mounting points such as bull bars or light brackets.

Professional installation is recommended to ensure proper wiring, controller setup, and performance.

Always ensure correct alignment and compliance with local road regulations when using auxiliary driving lights.
