Hayman Reese X-Bar Towbar for Ford Ranger Trig Point C/C 2022+ | 03474XW
Hayman Reese X-Bar Recovery Towbar for Ford Ranger MY22 Trig Point C/C 2022+ | Part #03474XW
- Regular price
- Regular price
-
- Sale price
- Unit price
- / per
Couldn't load pickup availability
Shipping & Returns
Turnaround
All orders are shipped within 1-2 weeks.
If a tracking number is provided by the shipping carrier, we will update your order with the tracking information. Please note that some orders may not have tracking numbers due to provider options.
Shipping Rates
The rate charged for the shipping of your order is based on the weight of your products, and your location. Before the final checkout page you will be shown what the cost of shipping will be, and you will have a chance to not place your order if you decide not to.
Delivery charges
What is Rural Delivery fee?
An estimated delivery charge will apply to customers ordering from rural areas. Prior to processing you order on checkout, an alert will appear that will advise customers to call MYTUFF4X4 to obtain an accurate cost of delivery. Please contact MYTUFF4X4 to see a list of Rural and Remote areas. Some areas may take longer due to the frequency of deliveries to the delivery Post code. Our system calculates this estimated price considering the total amount of time to process your order including: packaging, transit time to the delivery provider, and transit time to the delivery address.
When placing your order, we consider these factors when calculating the Estimated Delivery prices :
- Post code of the nominated delivery address.
- Transit Time: The amount of time it takes your order to leave our distribution centre and arrive at the local delivery carrier.
What additional fees may apply?
There may be circumstances that require additional payment by you if the conditions mentioned have not been met or you require special services outside of our standard delivery.
Back Orders
If an item goes on back order we will ship you the part of your order that is in stock. When the item becomes available we will ship you the rest of your order. You will not be charged any additional shipping and handling for the second shipment.
Delivery Insurance
Goods that are shipped on behalf of the client by Mytuff4x4 are not insured unless the client notifies us prior to delivery and pays for delivery insurance. Mytuff4x4 is not responsible for goods damaged in transit if insurance is not paid for by the customer prior to delivery.

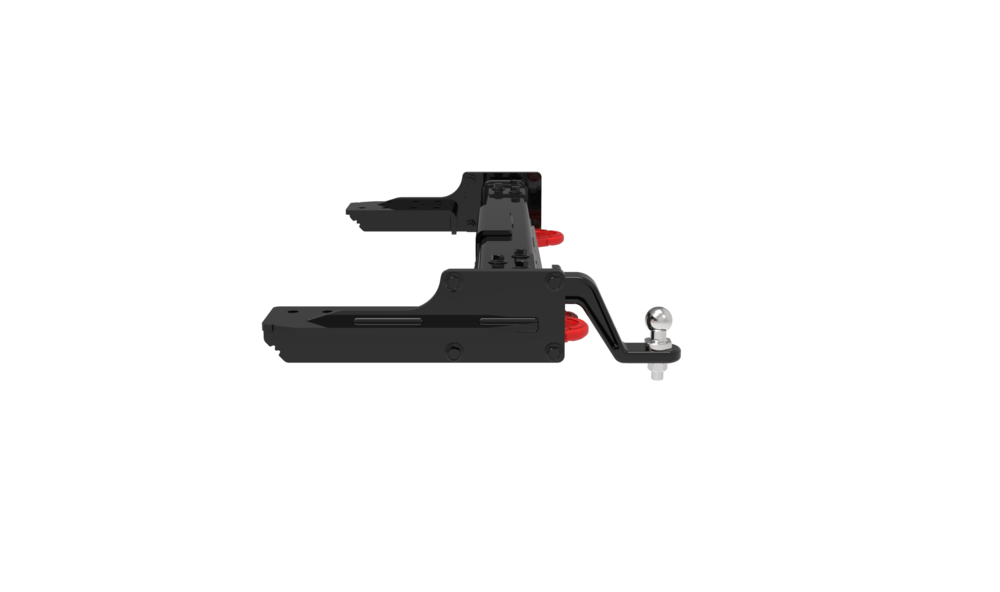

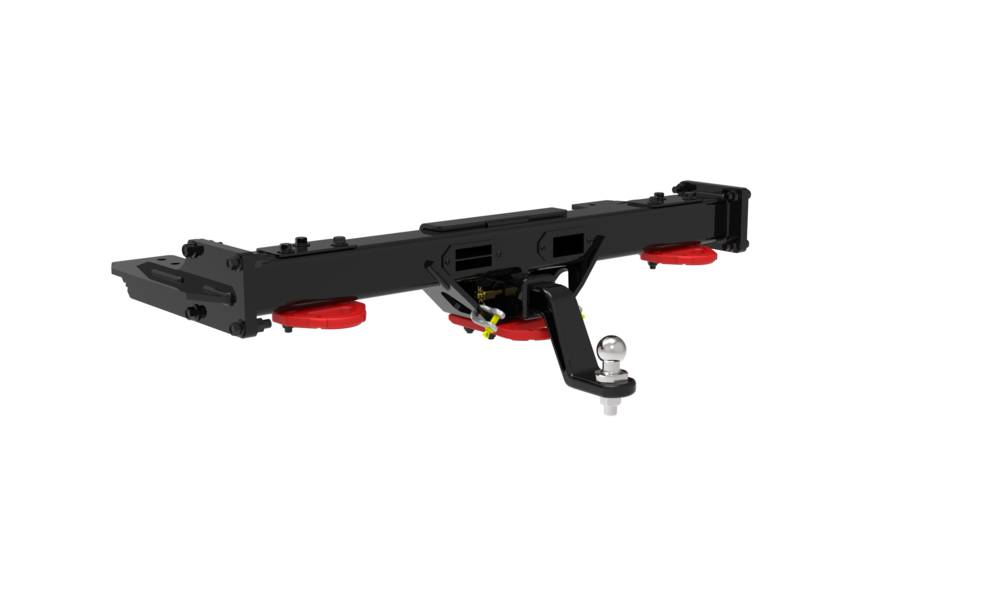

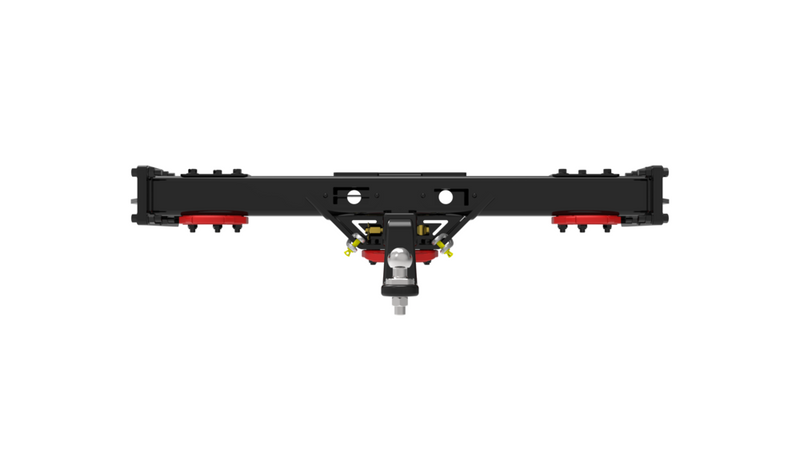

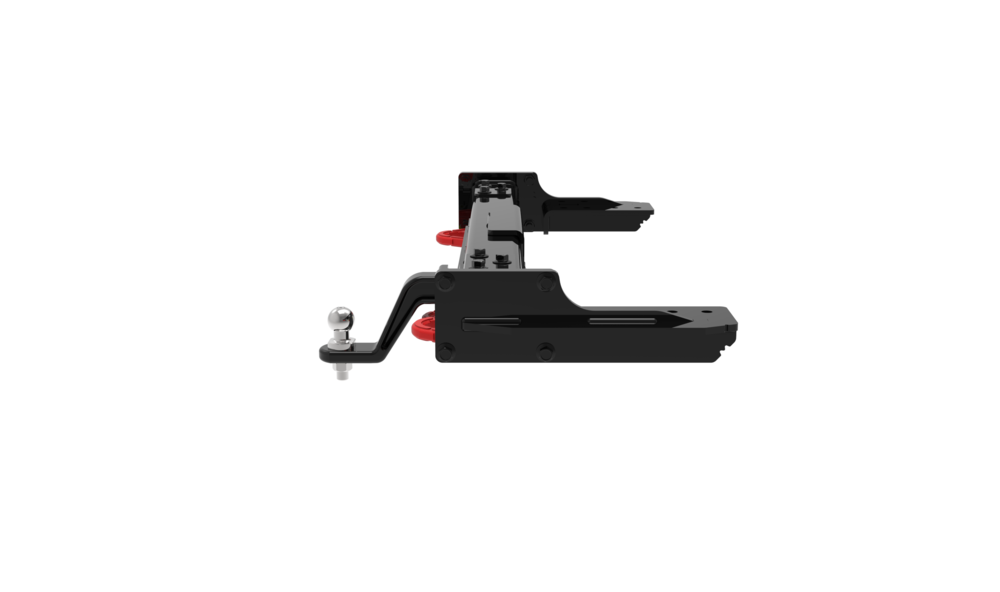

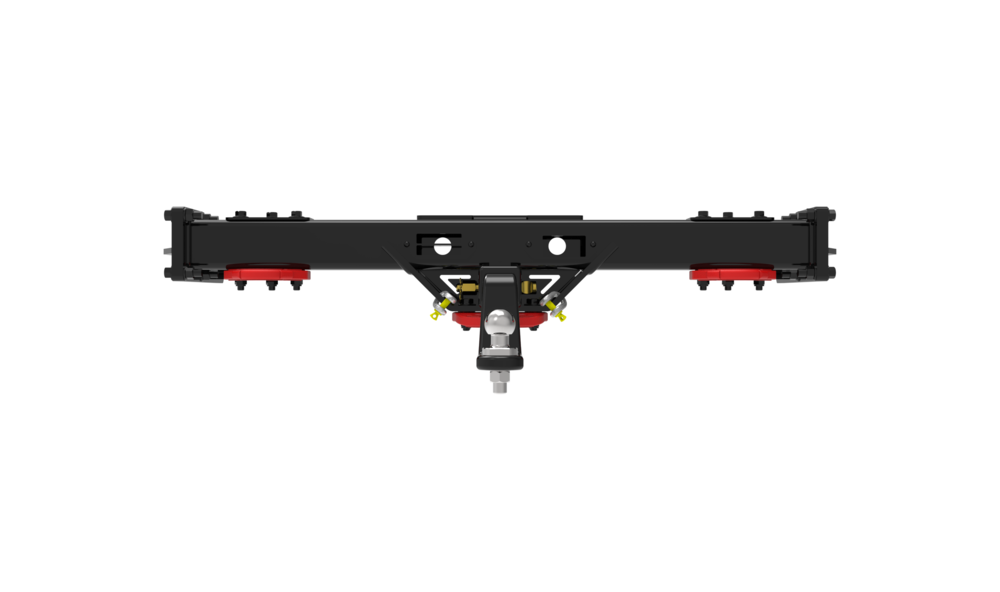

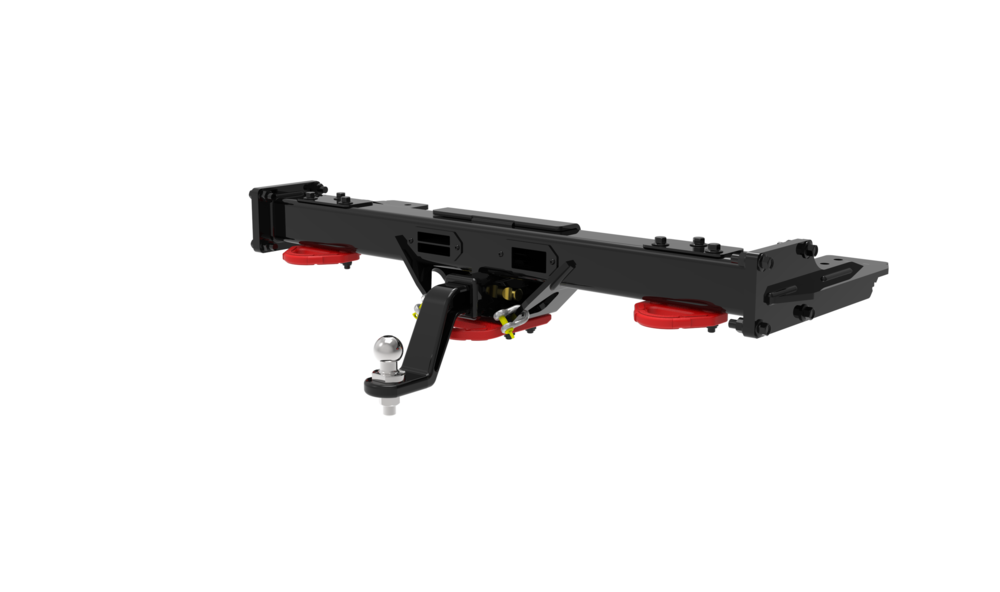

Get your Ford Ranger MY22 Trig Point Cab Chassis (05/2022 onwards) ready for serious off-road recovery and towing with the Hayman Reese X-Bar Recovery Towbar (Part #03474XW). Designed to suit the unique Trig Point C/C fitment, this towbar provides enhanced departure angles, rated recovery points, and rugged construction for all terrains.
Rated to tow up to 3500kg with a 350kg ball weight, the X-Bar includes a rated 8-tonne centre recovery point and two 4-tonne rated side points. SmartPin™ hitch pin technology ensures a secure and rattle-free connection, while the bash plate and protected twin trailer plug mounts provide real-world practicality. Built with 700-grade forged steel and finished in premium eCoat and powder coating, this bar is engineered to last.
Tested to meet ADR 62/02 and AS/4177 standards, the X-Bar 03474XW gives your Ranger Trig Point the durability and safety required for tough Australian conditions — available now at MyTuff4x4.
Key Features:
- Genuine Hayman Reese X-Bar Recovery Towbar – Part #03474XW
- Designed for Ford Ranger MY22 Trig Point Cab Chassis (05/2022+)
- Rated 8T centre recovery point and 4T side recovery points
- 3500kg towing capacity with 350kg ball weight
- SmartPin™ hitch technology and rated D-shackles included
- Quick-release plug cover and twin protected trailer socket mounts
- Integrated bash plate for underbody protection
- Premium eCoat and powder-coated finish for corrosion resistance
- No bumper cut required – exposed fitment
- Tested to ADR 62/02 and AS/4177 standards
- Specialist installation recommended
Specifications:
- Vehicle: Ford Ranger MY22 Trig Point Cab Chassis (05/2022+)
- Towbar Rating: 3500kg
- Ball Weight: 350kg
- Bumper Cut: No
- Exposed/Concealed Fitment: Exposed
- Product Weight: 65kg
- Product Dimensions: 118cm x 36cm x 20cm
- Tail Length: 400mm
- Colour: Black
- Finish: Powder Coated
- Hitch Type: 50mm square hitch receiver
- SmartCODE Compatible: Yes
- ECU: WLE70029
- LUG: 21359
- Fitting Difficulty: Specialist Installer
When it comes to recovery-ready capability and off-road strength, the Hayman Reese X-Bar 03474XW is the premium upgrade for your Trig Point Ranger — available now at MyTuff4x4.
