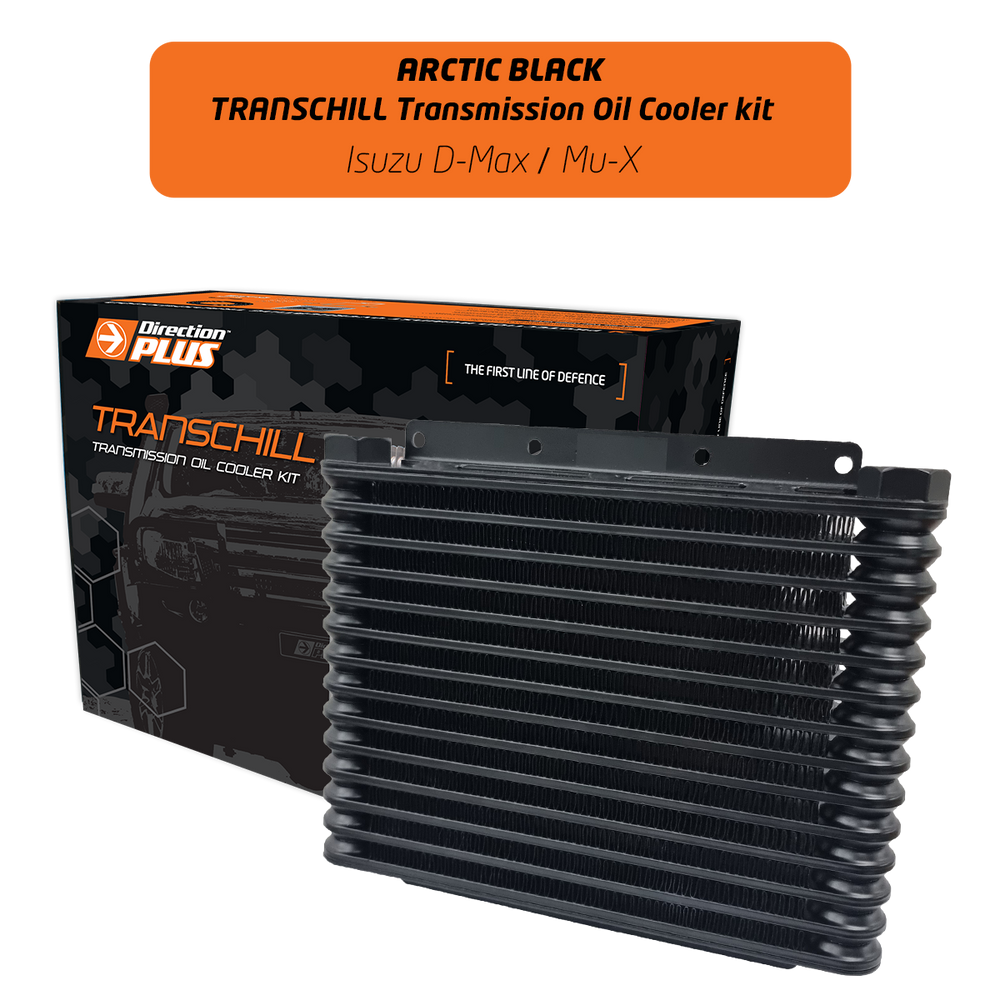

TransChill Arctic Black Transmission Cooler Kit ISUZU D-MAX & MU-X (TCB601DPK)
- Regular price
- $530.00
- Regular price
-
$560.00 - Sale price
- $530.00
- Unit price
- per
Sku:
TCB601DPK
Availability:
In Stock
Couldn't load pickup availability
Shipping & Returns
Turnaround
All orders are shipped within 1-2 weeks.
If a tracking number is provided by the shipping carrier, we will update your order with the tracking information. Please note that some orders may not have tracking numbers due to provider options.
Shipping Rates
The rate charged for the shipping of your order is based on the weight of your products, and your location. Before the final checkout page you will be shown what the cost of shipping will be, and you will have a chance to not place your order if you decide not to.
Delivery charges
What is Rural Delivery fee?
An estimated delivery charge will apply to customers ordering from rural areas. Prior to processing you order on checkout, an alert will appear that will advise customers to call MYTUFF4X4 to obtain an accurate cost of delivery. Please contact MYTUFF4X4 to see a list of Rural and Remote areas. Some areas may take longer due to the frequency of deliveries to the delivery Post code. Our system calculates this estimated price considering the total amount of time to process your order including: packaging, transit time to the delivery provider, and transit time to the delivery address.
When placing your order, we consider these factors when calculating the Estimated Delivery prices :
- Post code of the nominated delivery address.
- Transit Time: The amount of time it takes your order to leave our distribution centre and arrive at the local delivery carrier.
What additional fees may apply?
There may be circumstances that require additional payment by you if the conditions mentioned have not been met or you require special services outside of our standard delivery.
Back Orders
If an item goes on back order we will ship you the part of your order that is in stock. When the item becomes available we will ship you the rest of your order. You will not be charged any additional shipping and handling for the second shipment.
Delivery Insurance
Goods that are shipped on behalf of the client by Mytuff4x4 are not insured unless the client notifies us prior to delivery and pays for delivery insurance. Mytuff4x4 is not responsible for goods damaged in transit if insurance is not paid for by the customer prior to delivery.
The NEW TransChill Arctic Black Transmission Cooler Kit (TCB601DPK) is designed to suit Isuzu D-Max and MU-X models fitted with the 4JJ1-TCX 3.0L 4-cylinder engine (2012–2020). It is specifically engineered to reduce excessive transmission heat generated during towing, carrying heavy loads, off-road driving, and extreme conditions such as sand, snow, or high ambient temperatures.
The 32mm, 14-row TransChill transmission cooler provides an effective and economical solution for maintaining optimal transmission operating temperatures. High-efficiency turbulators within each tube enhance fluid flow for superior heat transfer, while the advanced plate-and-fin design delivers outstanding cooling performance. Its compact construction allows for seamless integration with vehicle-specific mounting systems.
Key Features:
- New and improved design
- Designed and engineered in Australia
- 32mm, 14-row plate-and-fin construction for maximum cooling efficiency
- Durable black powder-coated finish to resist oxidation
- Pressure tested to 150 psi for quality assurance and reliability
- Internal tubulation improves heat transfer performance
- Up to 50% greater efficiency (heat transfer rate – BTU/hr)
- Pre-drilled mounting plates for easy installation
- M16 inlet and outlet fittings
Why You Need One:
Automatic transmissions generate significant heat, especially under load. An auxiliary transmission cooler is a cost-effective way to help prevent expensive transmission damage. Automatic Transmission Fluid (ATF) plays a critical role in cooling, lubricating, and cleaning internal components. However, once temperatures exceed 93°C (200°F), ATF performance rapidly deteriorates.
Excessive heat can significantly reduce the lifespan of ATF, seals, and internal transmission components, while also increasing wear on friction materials and clutch plates.
How It Works:
The Direction-Plus™ Transmission Cooler Kit can reduce ATF temperatures by up to 33°C, helping maintain safe operating conditions. Even a reduction of just 11°C can potentially double the lifespan of the transmission, fluid, and internal components.

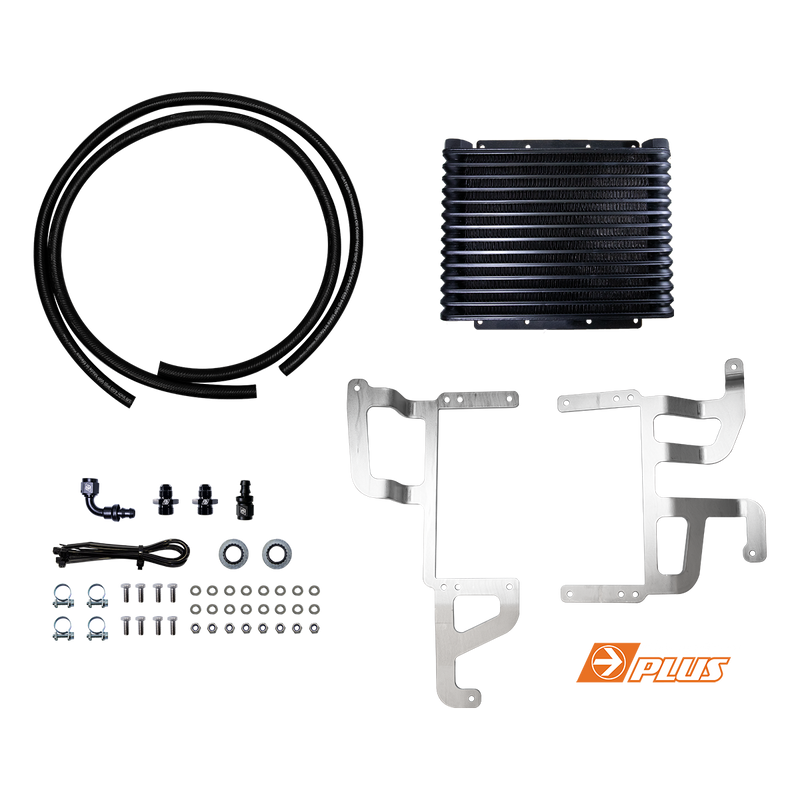

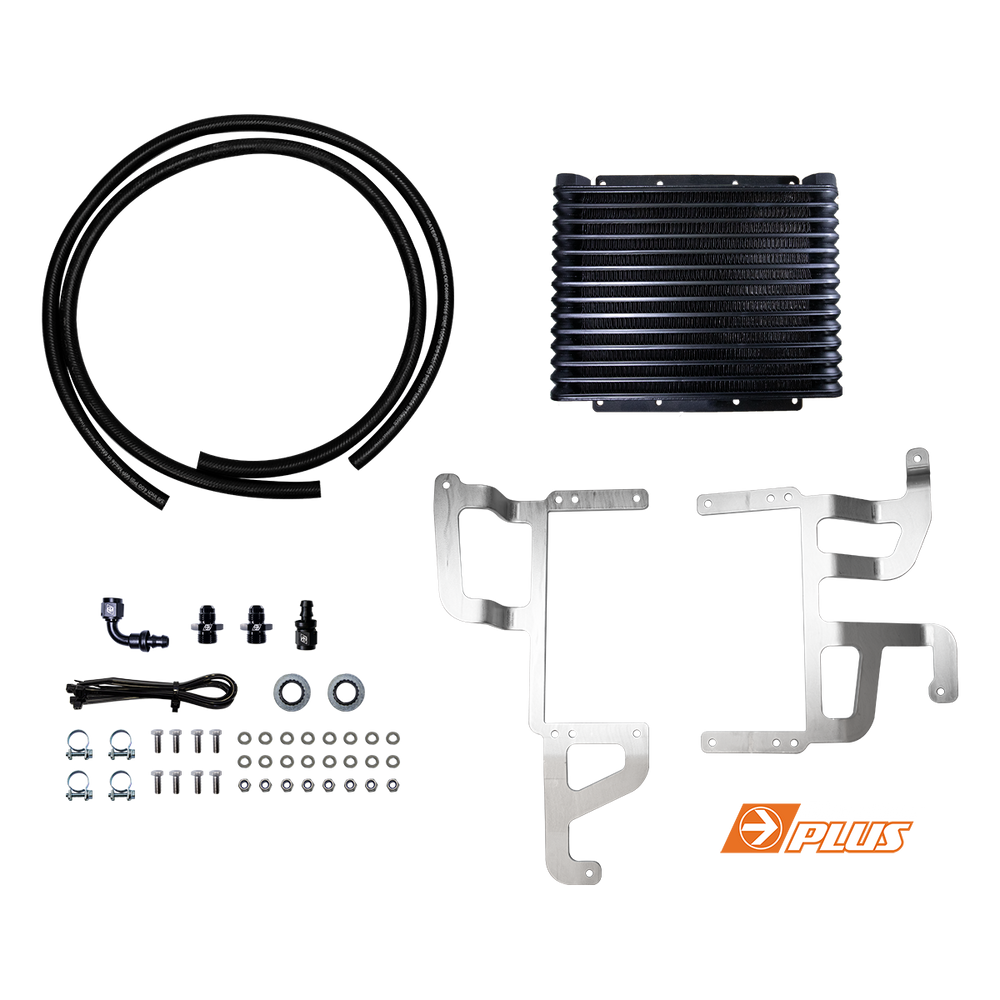

Kit Contents:
- Vehicle-specific laser-cut 4mm 5005-H34 aluminium mounting brackets
- Complete mounting hardware
- ATF hose (meets or exceeds SAE J1019 requirements)
- 1 x Davies Craig 32mm, 14-row black oil cooler
Backed by a 3-year warranty (conditions apply), this kit is a dependable upgrade for improved transmission performance, durability, and longevity.
