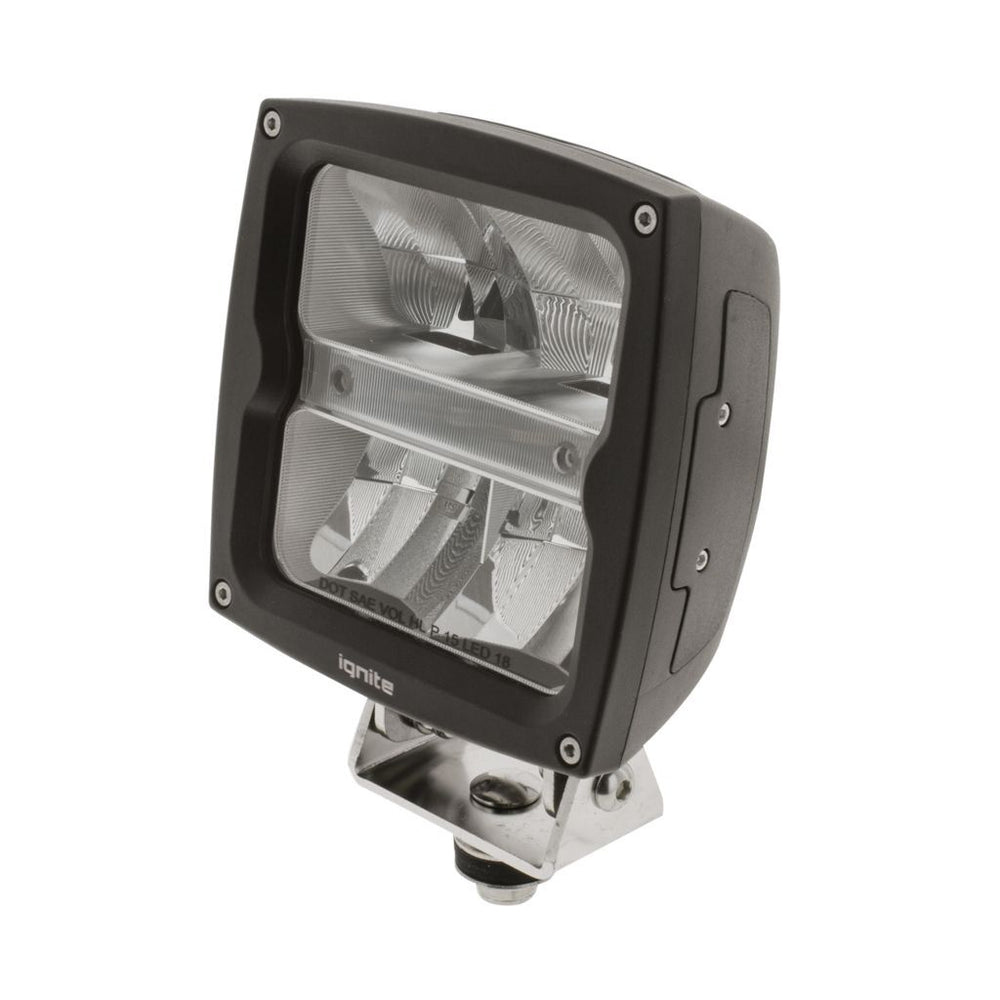

LED HEADLIGHT 10-30V HIGH /LOW BEAM BLACK FACE 10LEDs 60 Watt 1800 LOW 3600Lmns HIGH

Regular price
$399.00
Regular price
$0.00
Sale price
$399.00
Availability: In Stock

Shipping & Returns

Turnaround

All orders are shipped within 1-2 weeks.

If a tracking number is provided by the shipping carrier, we will update your order with the tracking information. Please note that some orders may not have tracking numbers due to provider options.

Shipping Rates

The rate charged for the shipping of your order is based on the weight of your products, and your location. Before the final checkout page you will be shown what the cost of shipping will be, and you will have a chance to not place your order if you decide not to.

Delivery charges

What is Rural Delivery fee?
An estimated delivery charge will apply to customers ordering from rural areas. Prior to processing you order on checkout, an alert will appear that will advise customers to call MYTUFF4X4 to obtain an accurate cost of delivery. Please contact MYTUFF4X4 to see a list of Rural and Remote areas. Some areas may take longer due to the frequency of deliveries to the delivery Post code. Our system calculates this estimated price considering the total amount of time to process your order including: packaging, transit time to the delivery provider, and transit time to the delivery address.

When placing your order, we consider these factors when calculating the Estimated Delivery prices :

  • Post code of the nominated delivery address.
  • Transit Time: The amount of time it takes your order to leave our distribution centre and arrive at the local delivery carrier.

What additional fees may apply?
There may be circumstances that require additional payment by you if the conditions mentioned have not been met or you require special services outside of our standard delivery.

Back Orders

If an item goes on back order we will ship you the part of your order that is in stock. When the item becomes available we will ship you the rest of your order. You will not be charged any additional shipping and handling for the second shipment.

Delivery Insurance

Goods that are shipped on behalf of the client by Mytuff4x4 are not insured unless the client notifies us prior to delivery and pays for delivery insurance. Mytuff4x4 is not responsible for goods damaged in transit if insurance is not paid for by the customer prior to delivery.

1
Ignite Square LED HeadLamp 10 - 30 Volt 60 Watt
High Beam: 3.600 Raw Lumens and 3.060 Effective Lumens and 5.700K
Position Lamp: 160 Raw Lumens and 130 Effective Lumens and 5.700K
Low Beam: 1 Lux @ 163m and 26.875cd Peak Beam Intensity
High Beam: 1 Lux @ 280m and 78.125cd Peak Beam Intensity
Current Draw: 4.9amp @ 12 Volt and 2.51amp @ 24 Volt
Polycarbonate Free Form Optical Reflector Technology for Low and High Beam Lamps
Polycarbonate Lens assembly
150mm x 150mm - Black Fascia
Integrated Electronic Thermal Management (ETM)
Black Powder coated Extruded 6063 Aluminium Housing with integrated Heat-Sink and Pressure Equalising Vent
Stainless Steel Single Bolt Mount Bracket and Hardware
400mm Lead with 4 Pin Deutsch Plug
Over and Under Voltage Protection
Reverse Polarity Protection
UV. Water and Shock resistant
50.000 Hours LED Lifespan
ECE R6. R7. R10. DOT and CE Approved
IP68 and IP69K Rating
High / Low Beam and Position Lamp
Environment Temperature: -40°C ~ 60°C
2 Year Warranty
Weight: 1.25kg
.
Spare Parts:-
IWH030 Adaptor Harness for Negative Switched Vehicles
2 x 10 Watt High Intensity ETI LED's for Low Beam
4 x 10 Watt High Intensity ETI LED's for High Beam
2 x 1 Watt LumiLEDs LED's for Position Lamp
Low Beam: 1.800 Raw Lumens and 1.530 Effective Lumens and 5.700K
