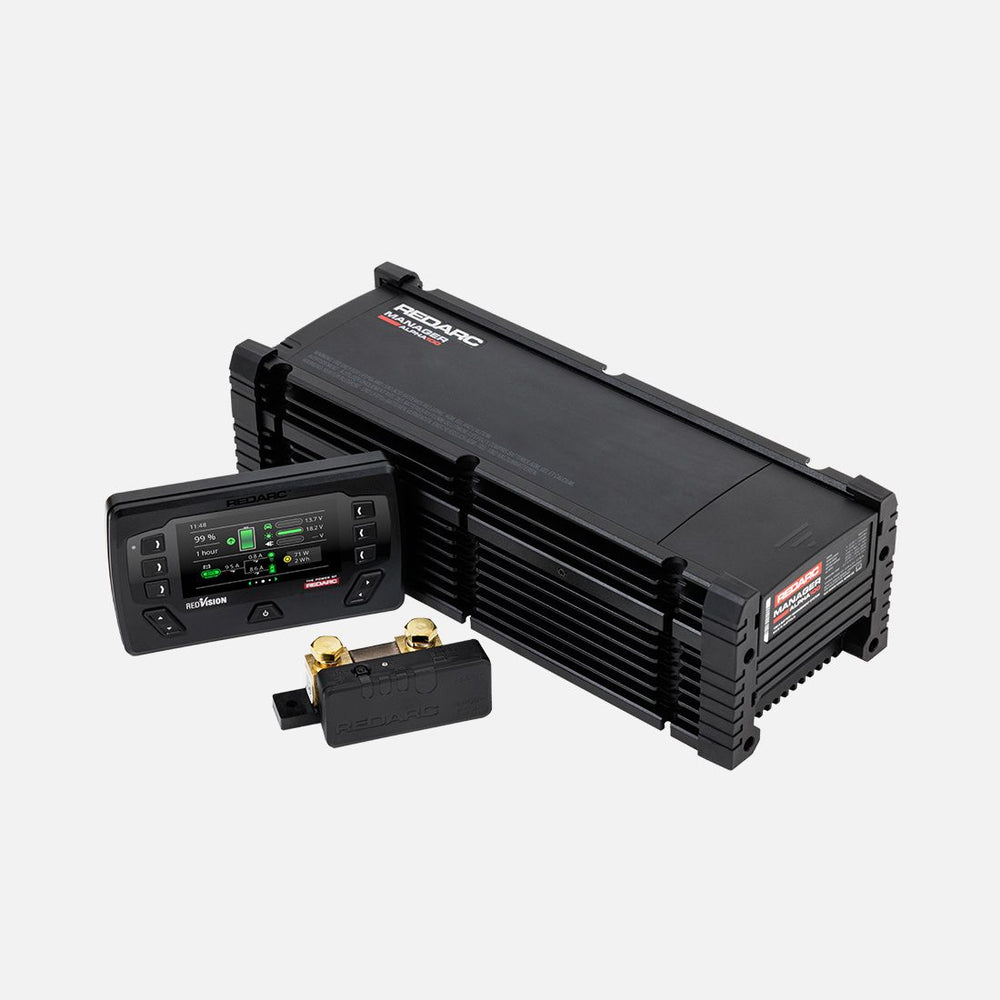

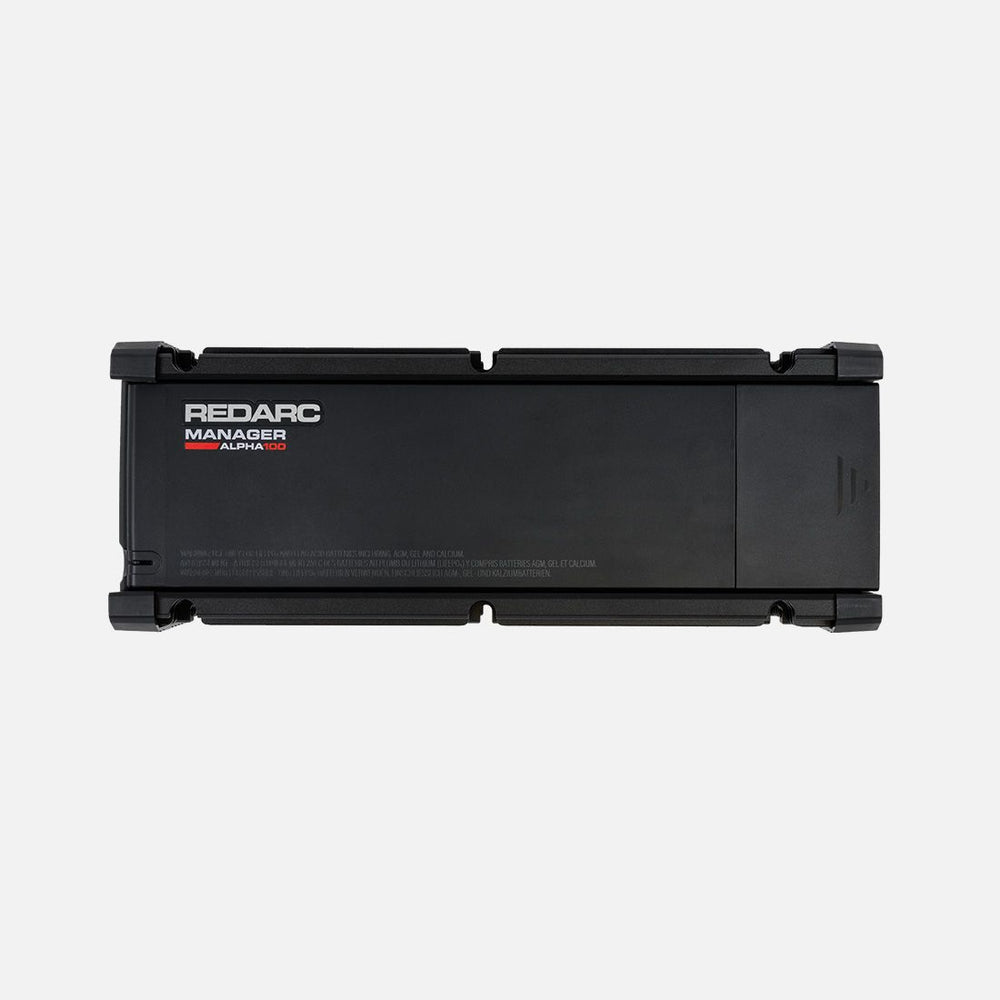

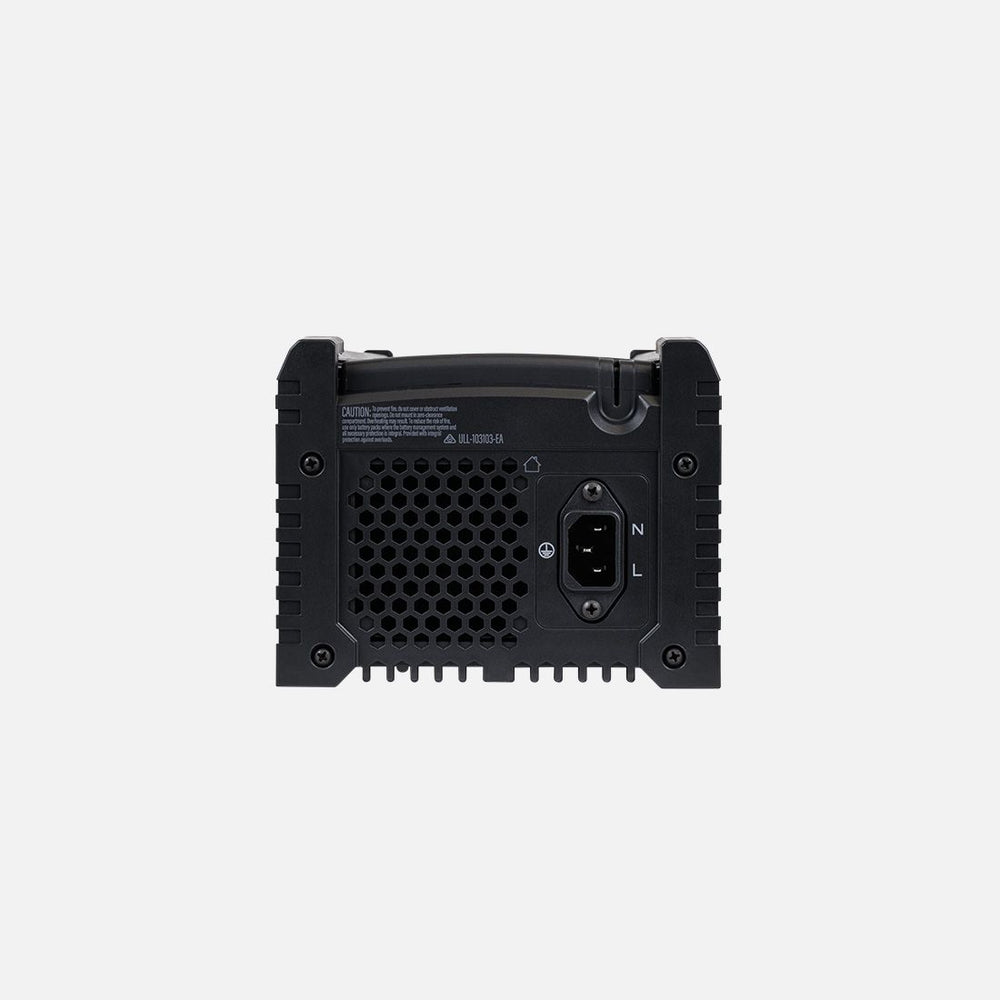

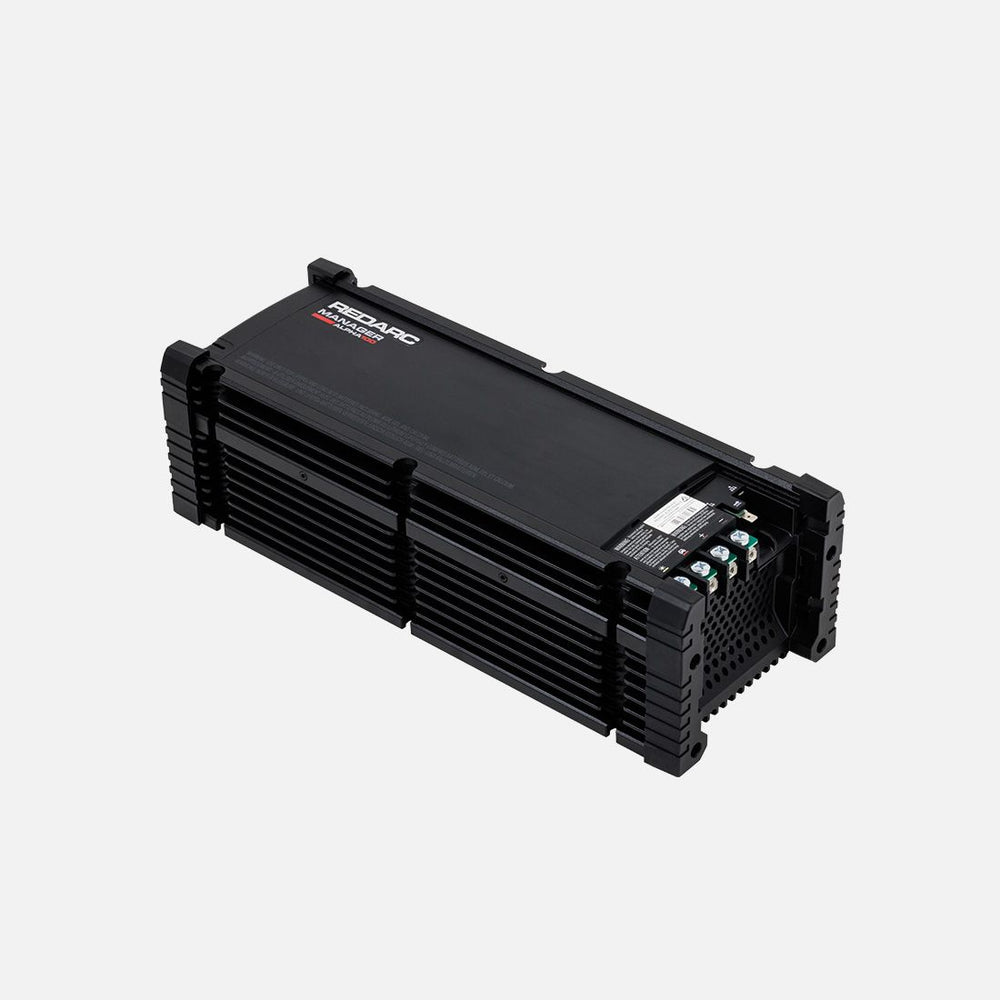

The Manager Alpha100 is REDARC's highest-output battery management system, delivering up to 100A to the auxiliary batteries from vehicle DC, 240V mains and solar at the same time. It is built for caravans, motorhomes and camper trailers running induction cooktops, air conditioning and large fridges from a big lithium bank, with up to triple the charge rate of the Manager30. The RedVision Pro Display and Smart Battery Monitor are included. Backed by REDARC's 2-year warranty.
Key features
- Up to 100A of charge at once from DC, AC and solar sources
- Solar prioritised to reduce alternator load and fuel use
- Up to 55% smaller than multi-part systems, and lighter as well
- Start battery charge from surplus solar, with a recovery mode for a flat start battery
- Suits gel, AGM, calcium, standard lead acid and lithium batteries
- Bluetooth 5.1 monitoring with a range of up to 42m via the Smart Battery Monitor
- Tested to demanding vibration standards and made in Australia
Specifications
| Part number | BMS12100-AU |
| Nominal Voltage | 12V |
| Current Measurement Range | ± 500A |
| Start Battery Input Voltage Range | 9-32VDC |
| Solar Input Voltage Range | 9-32VDC |
| Nominal Output Voltage | 12V |
| Compatible Battery Types | Gel, AGM, Calcium, Standard Lead Acid, Lithium |
| Nominal Current Rating | 100A |
| AC Input Voltage Range | 95 – 264 VAC rms / 45 – 65 Hz |
| Operating Temperature | –20°C to 60°C |
| Weight | 6.1kg |
| Height | 120mm |
| Width | 154mm |
| Length | 400mm |
Contact MyTuff4x4 to confirm the right Manager Alpha for your setup.
