REDARC TVMS Rogue Control Module
- Regular price
- $891.43
- Regular price
-
$919.00 - Sale price
- $891.43
- Unit price
- per
Sku:
TVMS1240
Availability:
In Stock
Couldn't load pickup availability
Shipping & Returns
Turnaround
All orders are shipped within 1-2 weeks.
If a tracking number is provided by the shipping carrier, we will update your order with the tracking information. Please note that some orders may not have tracking numbers due to provider options.
Shipping Rates
The rate charged for the shipping of your order is based on the weight of your products, and your location. Before the final checkout page you will be shown what the cost of shipping will be, and you will have a chance to not place your order if you decide not to.
Delivery charges
What is Rural Delivery fee?
An estimated delivery charge will apply to customers ordering from rural areas. Prior to processing you order on checkout, an alert will appear that will advise customers to call MYTUFF4X4 to obtain an accurate cost of delivery. Please contact MYTUFF4X4 to see a list of Rural and Remote areas. Some areas may take longer due to the frequency of deliveries to the delivery Post code. Our system calculates this estimated price considering the total amount of time to process your order including: packaging, transit time to the delivery provider, and transit time to the delivery address.
When placing your order, we consider these factors when calculating the Estimated Delivery prices :
- Post code of the nominated delivery address.
- Transit Time: The amount of time it takes your order to leave our distribution centre and arrive at the local delivery carrier.
What additional fees may apply?
There may be circumstances that require additional payment by you if the conditions mentioned have not been met or you require special services outside of our standard delivery.
Back Orders
If an item goes on back order we will ship you the part of your order that is in stock. When the item becomes available we will ship you the rest of your order. You will not be charged any additional shipping and handling for the second shipment.
Delivery Insurance
Goods that are shipped on behalf of the client by Mytuff4x4 are not insured unless the client notifies us prior to delivery and pays for delivery insurance. Mytuff4x4 is not responsible for goods damaged in transit if insurance is not paid for by the customer prior to delivery.

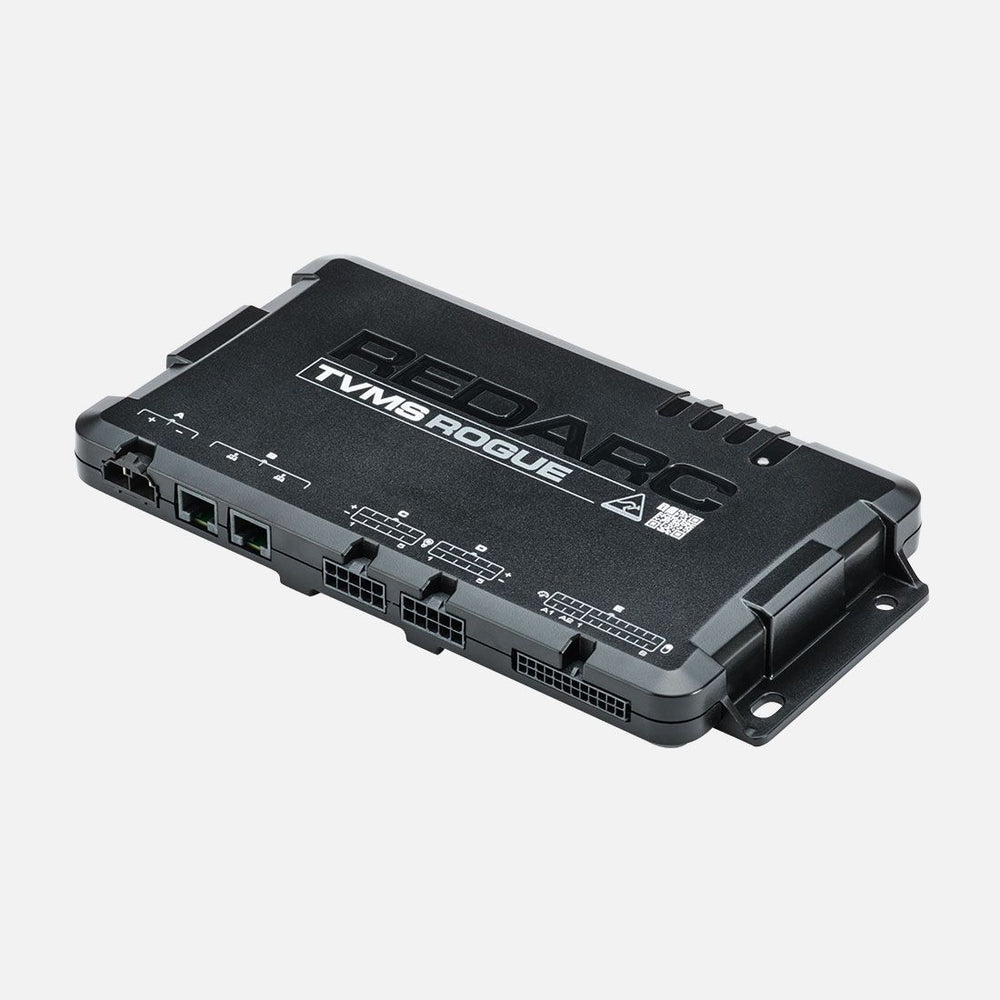

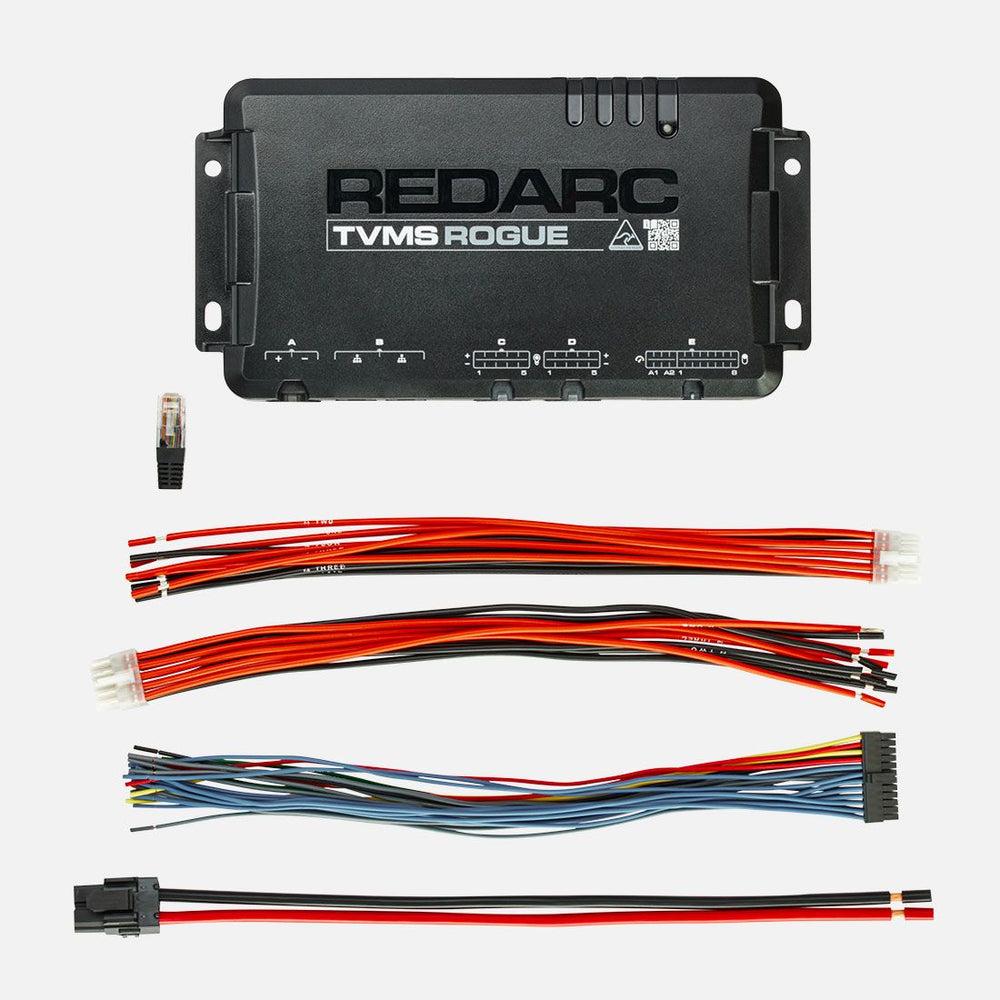

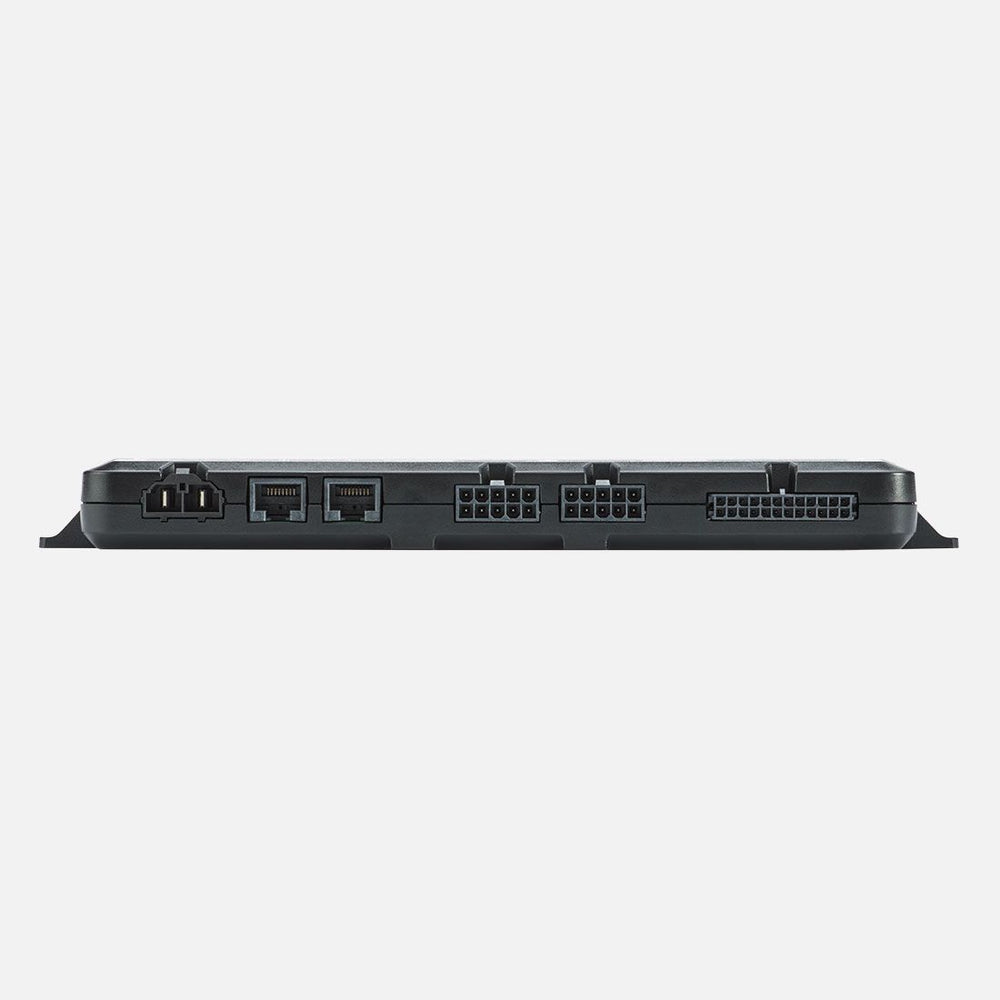

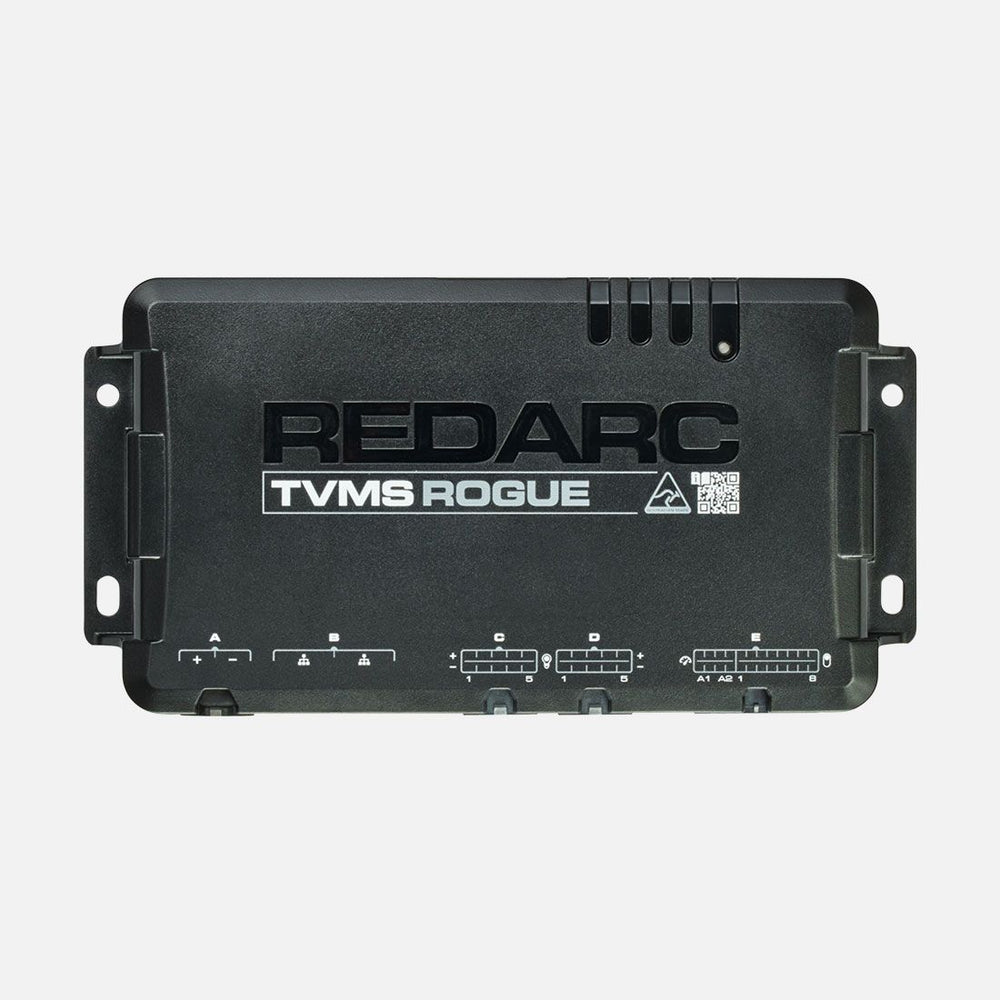

The TVMS Rogue is a slim 25 mm control and distribution module that runs the lights, fans, fridge and pumps in a 4WD, camper or caravan from a RedVision display or the app on your phone. Smart fuses are built in, so there is no separate fuse block to wire, and all ten outputs can be dimmed. Add a Manager30 and RedVision display (both sold separately) for battery state of charge, power in and out, and ambient temperature on the same screen. Backed by REDARC's 2-year warranty.
Key features
- 10 x 10A outputs, all dimmable
- 8 switch inputs for wall switches or door-triggered reed switches
- 2 analogue tank level inputs, compatible with most common sensors
- On-board smart fuses
- Programmable automation, such as leaving only the fridge running when power is low
- Configurator app for setup; RedVision user app on iOS and Android
- Suits DISP4300-RC displays built from January 2023 (serials starting 23); mid-2022 units (serials 2207 to 2212) can be upgraded
Specifications
| Part number | TVMS1240 |
| Brand | REDARC |
| Operating Temperature | -20°C to 70°C |
| Weight | .43 kg |
| Height | 25 mm |
| Width | 130 mm |
| Length | 250 mm |
| Input Voltage | 9 - 16V |
| Max. Rated Output Current | 40A |
Professional installation by an auto electrician is recommended.
