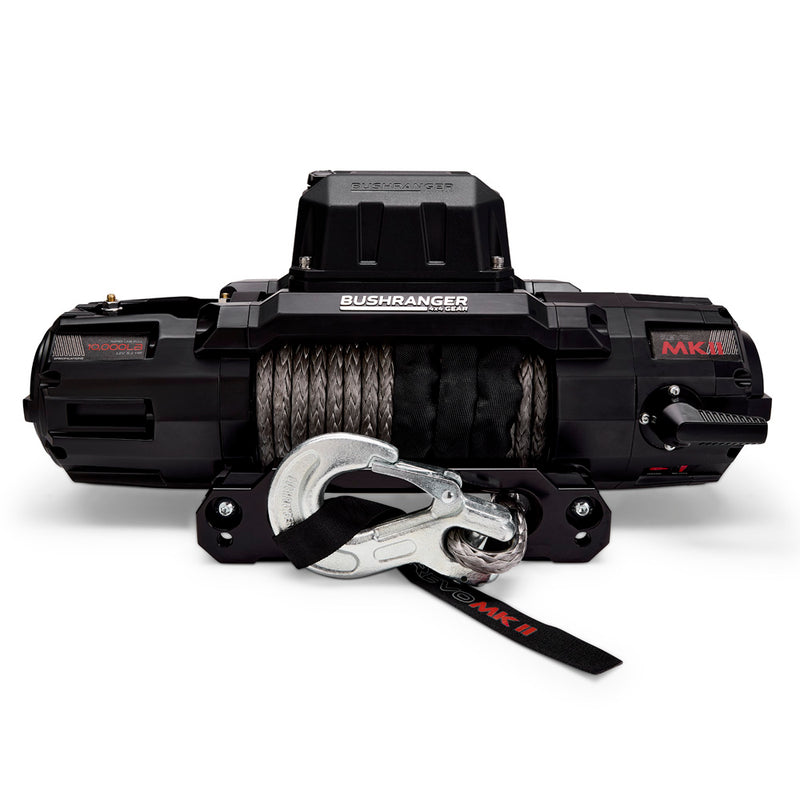

Bushranger REVO MKII Vehicle Recovery Winch
Designed for off-road enthusiasts who demand top-notch performance in the most challenging conditions, the Bushranger REVO MKII winch combines advanced engineering with real-world testing to deliver a lighter, more compact, and durable recovery solution.
Key Features and Benefits
Engineered and Proven in Australia
Crafted with high-quality components and subjected to rigorous testing, this winch ensures exceptional reliability and durability in harsh environments.
Compact Multi-Fit Control Box
The lightweight, compact control box facilitates installation in tight spaces and reduces interference. It features multiple threaded insert locations for easy fitting to most bull bars.
Albright Contactor
Equipped with an IP67-rated Albright DC contactor, this winch offers superior quality and durability, managing motor functions with unmatched reliability.
Premium Motor Design
The 12V, 6.2HP series-wound motor is built from high-grade materials to minimize current draw and enhance line speeds, extending the motor’s lifespan even under full load conditions.
Zero Drag Braking System
The gearbox-mounted brake ensures 100% load holding and allows for fast, damage-free unspooling under no load.
4-Stage Gearbox
Featuring hardened steel gears for improved load distribution and durability, the gearbox is externally adjustable in 16 positions for optimal clutch handle orientation.
Robust Construction
The winch’s tough aluminum alloy body, finished with a durable satin black powder coat, provides exceptional strength and rigidity.
Effortless Clutch Operation
The no-lift clutch handle simplifies operation and minimizes fitment interference, designed to accommodate 90% of bull bar configurations.
Power Isolation Switch
A 500-amp isolation switch ensures complete separation of the winch from the vehicle battery when not in use, enhancing safety.
Water and Dust Proof
With an IP68 rating, the fully sealed motor and gearbox offer maximum protection against water, dust, and debris.
Wireless and Wired Remote
The compact remote control features both wireless functionality (30m range) and a wired option (5m lead), providing versatile operation.
Specifications
- Model:Â RWM120S
- Dimensions:Â 600mm (L) x 194mm (W) x 185mm (H)
- Fitted Weight:Â 33.9kg
- Rated Line Pull (1st Layer):Â 12,000 lbs (5,443 kg)
- Motor:Â 4.6 kW (6.2 HP)
- Remote Control: Dual Connection (Wireless – 30m range / Wired – 5m lead)
- Electrical Contactor:Â Albright DC88P
- Gearbox:Â 171:1 2-Stage Planetary & 2-Stage Spur Gear
- Brake:Â Gearbox-mounted, 100% load-holding proportional friction brake
- Clutch: Rotating Ring Gear with 90° Turn Handle (No Lift)
- Rope:Â 11mm Diameter x 24m Synthetic Rope with Protective Sleeve
- Fairlead:Â Aircraft Grade Aluminum Hawse Fairlead (Two Position)
- Finish:Â Electrophoretic Pretreated Black Satin Powder Coated
- Waterproof Ratings:Â IP68 (Motor and Gearbox)
- Warranty:Â Limited Lifetime Warranty (7 Years on Electrical Components)
- Certifications:Â CE
Kit Includes
- REVO MKII winch
- Synthetic rope (24m x 11mm) with protective sleeve
- Pre-wired control box
- Dual connection remote control (wireless and wired)
- Forged steel hook with pull tag
- Aircraft grade aluminum hawse fairlead
- Main power isolation switch
- Heavy gauge wiring
- Hi-tensile mounting hardware
