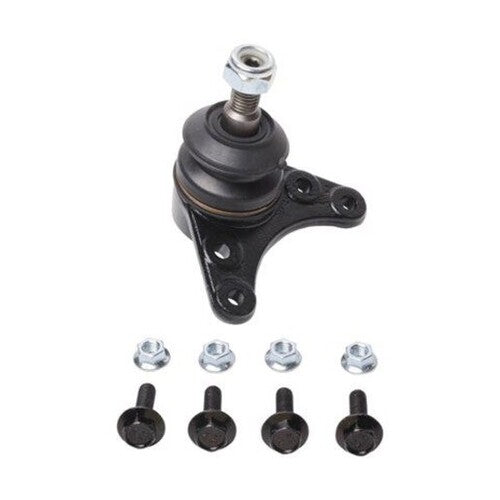

Roadsafe Heavy Duty Ball Joint – Next Generation

This listing is for 1 × Roadsafe Next Gen HD Ball Joint, suitable for replacing the ball joint in one control arm.
If replacing ball joints on both arms, you will need to purchase 2 units.

The Roadsafe Next Generation Heavy Duty 4WD ball joints are designed to handle the increased stresses found in modern four-wheel drives, especially those fitted with larger tyres and upgraded suspension systems. Manufactured to strict quality standards, these ball joints are engineered to provide improved strength, durability, and articulation compared to standard components.

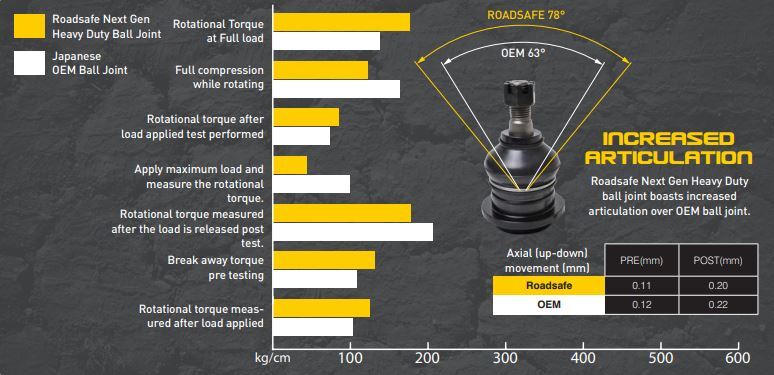

A key feature of the design is the advanced nylon spring system, which improves the joint’s ability to handle both static and dynamic loads during operation. The ball joint also incorporates increased articulation where possible, helping reduce the risk of binding while allowing greater suspension travel.

To support the improved movement, a high-quality CR (Chloroprene Rubber) dust boot is used. This material provides excellent resistance to ozone, weathering, oils, fuels, and chemicals while protecting the joint from dirt and contaminants. The boot is secured with a heavy-duty retaining clip to ensure it remains properly seated even under maximum articulation.

Another major advantage is the greaseable design, allowing the ball joint to be serviced. After off-road use, fresh grease can be applied to help flush out dirt and debris, maintaining smooth operation and extending the component’s lifespan.

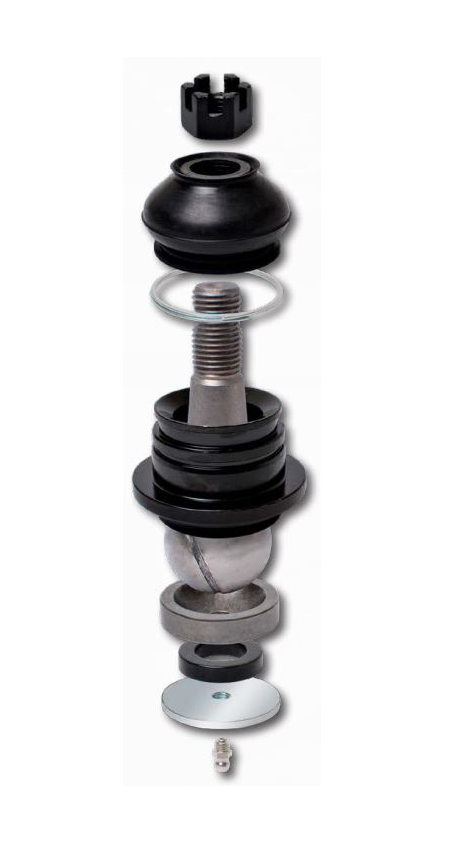

Key Features:

• Greaseable design for easy servicing and contaminant removal

• High-articulation hardened ball stud with grease channels

• Ball stud made from SCM435 chromium-molybdenum alloy steel for superior strength

• Heat-treated ball stud surface for improved wear resistance

• CR (Chloroprene Rubber) dust boot with strong resistance to oil, fuel, and weather exposure

• Heavy-duty retaining clip to keep the boot secure

• Castellated nut design for OE-style fitment with split pin retention

• Zinc-plated coin cap with thicker construction for improved durability

• Smooth grease grooves to ensure even lubrication

Servicing Recommendation:

• Greaseable ball joints should be serviced at every oil change to maintain performance and longevity.

Important Note:

• Not compatible with Ironman Forge Pro Upper Control Arms.
  The upgraded Roadsafe design features a thicker ball socket wall, which does not provide enough clearance in Ironman Forge Pro arms.
