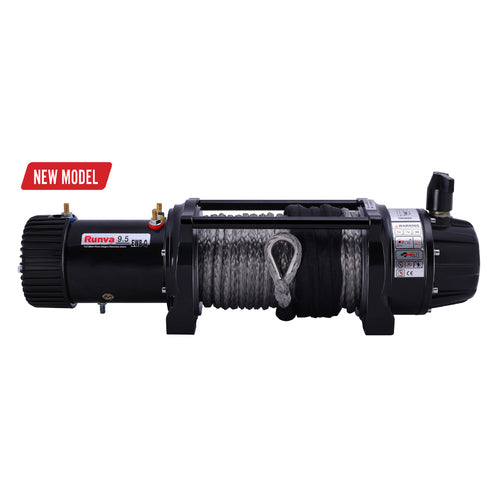

Runva EWB9500-Q Premium EVO Winch – High-Speed, Heavy-Duty Performance
The Runva EWB9500-Q Premium EVO is our latest high-performance winch, designed for small to medium-sized 4x4s and demanding applications. Combining industry-leading premium features with exceptional line speed, this winch will get you out of mud, sand, or difficult terrain faster than ever—leaving others in your wake.
With 9,500 lb (4,309 kg) line pull, a powerful 7.2HP motor, and an incredibly low 80:1 gear ratio, the EWB9500-Q delivers both speed and strength. Its latest stainless steel rotary clutch system allows you to pull the rope by hand with zero resistance, making recoveries quicker, safer, and hassle-free.
Key Features
-
High-Speed Performance: Fast line speeds without compromising strength.
-
Premium Components: Built with all of Runva’s top-tier features as standard.
-
IP67 Ingress Protection: Fully sealed for reliable operation in extreme conditions.
-
Advanced Ratchet Brake: Gearbox-mounted automatic ratchet brake holds load securely without wear, unlike traditional brake pad systems.
-
Clutch Flexibility: Stainless steel rotary clutch, adjustable handle position, and compatible with optional Runva Air Clutch for in-cab control.
-
Heavy-Duty Construction: Ideal for tough 4x4 environments; black powder-coated finish ensures durability and corrosion resistance.
Technical Specifications
| Specification | Detail |
|---|---|
| Rated Line Pull | 9,500 lb (4,309 kg) |
| Motor | 12V: 5.4 kW / 7.2 HP, 24V: 5.3 kW / 7.1 HP |
| Gear Train | Full steel, 3-stage planetary |
| Gear Ratio | 80:1 |
| Clutch Type | Stainless steel rotary clutch |
| Brake | Automatic ratchet load-holding in gearbox |
| Cable Type | Synthetic rope |
| Cable Size | 10 mm × 25 m |
| Drum Size | 63 mm × 216 mm |
| Mounting Bolt Pattern | 254 mm × 114.3 mm |
| Dimensions (L × W × H) | 612 mm × 160 mm × 200 mm |
| Remote Control | Heavy-duty handheld + wireless |
| Battery Leads | 2 × 1.8 m heavy-duty leads |
| Finish | Black powder coat |
| Warranty | 5-year electrical, lifetime mechanical |
| SKU | EWB9500QEVO12VD |
| Shipping Weight | 37.5 kg |
Performance (12V / 24V)
| Load | Line Speed (ft/min, m/min) | Motor Current (A) | Cable Layer | Rated Line Pull (lb, kg) | Rope on Drum (ft, m) |
|---|---|---|---|---|---|
| 0 lb | 65.6 / 20.0 | 53 / 35 | 1 | 9,500 / 4,309 | 17.4 / 5.3 |
| 3,000 lb | 19.7 / 6.0 | 220 / 170 | 2 | 7,706 / 3,495 | 39.4 / 12.0 |
| 6,000 lb | 12.8 / 3.9 | 405 / 300 | 3 | 6,482 / 2,940 | 65.0 / 19.8 |
| 9,500 lb | 8.2 / 2.5 | 580 / 380 | 4 | 5,593 / 2,537 | 85.3 / 26.0 |
Installation & Recommendations
-
Check technical drawing for sizing and compatibility with your vehicle and winch bar.
-
Recommended 1000 CCA battery and 70 mm² power leads for optimal line speed.
-
Tested in competition under constant load, ensuring reliable performance.
-
Note: Large size may not fit all 4x4 winch bars or bullbars.
Includes
-
Runva EWB9500-Q Premium EVO Winch
-
25 m Synthetic Rope
-
Heavy-duty handheld remote + wireless
-
Battery leads (2 × 1.8 m)
-
Installation hardware
-
Detailed installation guide
The Runva EWB9500-Q Premium EVO combines speed, power, and reliability—perfect for enthusiasts, off-road adventurers, and professionals who demand the best.
