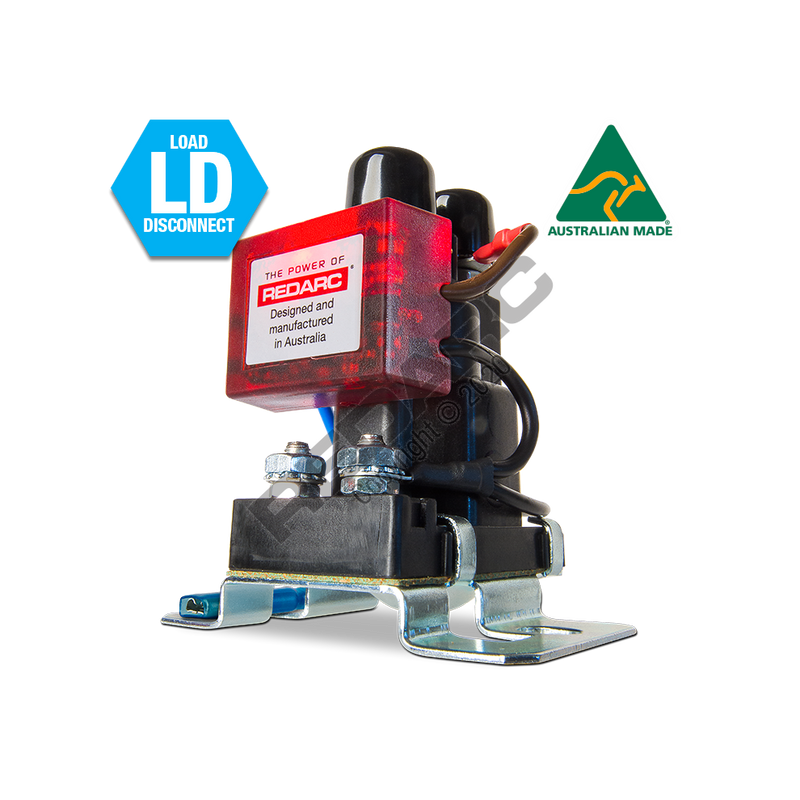

The SBI12-LLD is a microprocessor-controlled Load Disconnect Isolator. The SBI12-LLD is designed for use in lithium battery applications (LiFePO4) as a system to protect the battery from being excessively discharged by auxiliary loads. enabling the auxiliary battery to remain above the level at which internal protection circuitry would activate. Falling below this threshold would prevent many chargers from recharging the battery.
Put simply. once the auxiliary battery has been overly discharged. the Load Disconnect Isolator will turn off any connected loads. Similarly. if the battery climbs back above a suitable level. the Load Disconnect Isolator will restore power to the connected loads.
Spike protection
The SBI12-LLD Smart Start battery isolator incorporates a number of spike protection components specifically designed to reduce the risk of damaging the unit. It is also designed to prevent any spikes generated by the solenoid coil from affecting vehicle equipment.
Features
Overmould design
Compact in size and easy to install
Silver contacts for longer life and suitable for marine applications
Power saving technology
Fault indication
Fully surge protected
Quality fuse kits
Installation of REDARC smart battery isolators should also see the use of quality fuse kits.
System Voltage :
12V Nominal
Turn ON Voltage :
11.0V
Turn OFF Voltage :
10.5V
Turn ON Delay :
10 sec
Max. Cont. Current :
100 Amps
Turn OFF Delay :
2 sec
Max. Inrush Current :
400Amps
Standby Current :
< 5mA
Operating Current:
<0.1A
Dimensions :
75 x 70 x 80mm
Weight (g) :
200
Warranty :
2
Standards :
CE. C-Tick. AS/NZS CISPR11:2004
Main Stud Torque :
5-6.2 Nm
