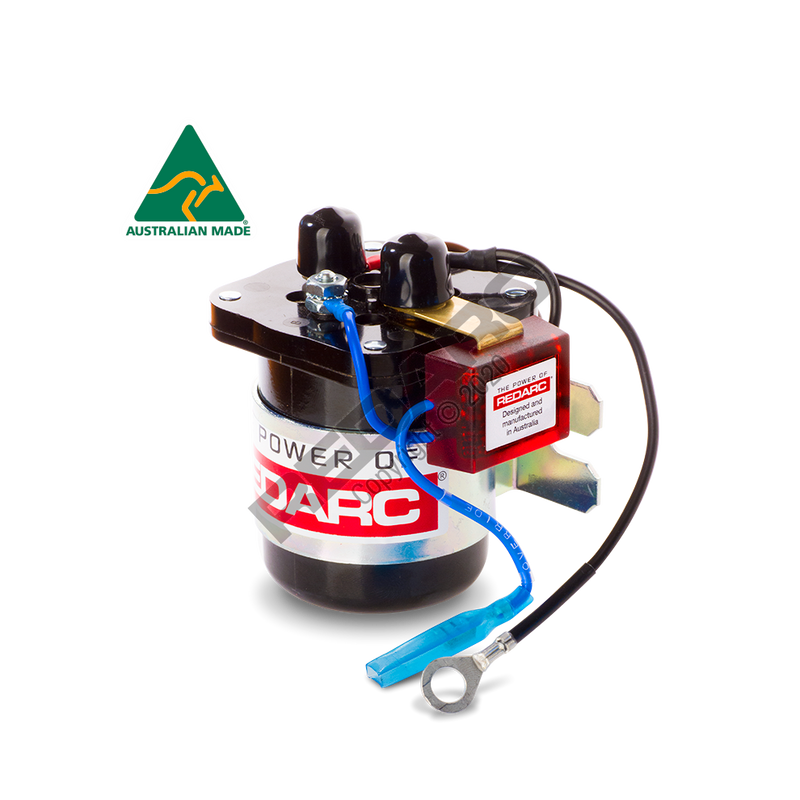

The REDARC Smart Start® SBI224 is used in dual battery systems to protect the start battery from excessive discharge while the auxiliary battery is supplying non-essential loads. The SBI224 provides 24 volt DC incorporating 200A of continuous ratings. The 200A battery isolator is best suited for heavy-duty operations.
Power Saving Technology
The Smart Start SBI224 battery isolator is mostly used in commercial vehicle dual battery systems. it incorporates electronic components preventing the solenoid from generating high voltage transients. Used instead of a diode battery isolator due to reduce voltage drop associated with diode type isolation. It features sophisticated fault detection and LED indication of operation to warn the user of faults including over-voltage. voltage drop and excessive current draw conditions.
The Smart Start SBI224 battery isolator is a safe way to charge a heavy-duty dual battery systems and should often be installed with a high quality fuse kit.
Features
Overmould design
Compact in size and easy to install
Silver contacts for longer life and suitable for marine applications
Power saving technology
Fault indication
Fully surge protected
Input (Operating) Voltage :
24VDC
Output Current Rating (Cont.) :
200A
Input Fuse Rating :
200A
Output Fuse Rating :
200A
Warranty :
2 Years
Length (mm) :
100
Width (mm) :
95
Height (mm) :
90
Weight (kg) :
0.6
Type Approval :
CE
