Superpro Bump Steer Correction Kit - Gen 3 Isuzu D-Max RG, Gen 3 Mazda

  •
1 5
Tags: All Kits BT50 BT50 2020 On Dobinsons LIFT KITS Mazda

Superpro Bump Steer Correction Kit - Gen 3 Isuzu D-Max RG, Gen 3 Mazda BT-50 & Gen 2 Isuzu MU-X

$1,650.00
$1,799.00
$1,650.00
Sku: TRC6680
Availability: In Stock
Zip Pay. Minimum monthly repayments are required. A monthly account fee of $9.95 applies and is subject to change. Pay your closing balance in full by the due date each month and we'll waive the fee. Available to approved applicants only and subject to completion of satisfactory credit assessment. Other charges may be payable. Fees and charges subject to change. T&Cs apply. Credit provided by ZipMoney Payments Pty Ltd (ABN 58 164 440 993), Australian Credit Licence Number 441878.

Shipping & Returns

Turnaround

All orders are shipped within 1-2 weeks.

If a tracking number is provided by the shipping carrier, we will update your order with the tracking information. Please note that some orders may not have tracking numbers due to provider options.

Shipping Rates

The rate charged for the shipping of your order is based on the weight of your products, and your location. Before the final checkout page you will be shown what the cost of shipping will be, and you will have a chance to not place your order if you decide not to.

Delivery charges

What is Rural Delivery fee?
An estimated delivery charge will apply to customers ordering from rural areas. Prior to processing you order on checkout, an alert will appear that will advise customers to call MYTUFF4X4 to obtain an accurate cost of delivery. Please contact MYTUFF4X4 to see a list of Rural and Remote areas. Some areas may take longer due to the frequency of deliveries to the delivery Post code. Our system calculates this estimated price considering the total amount of time to process your order including: packaging, transit time to the delivery provider, and transit time to the delivery address.

When placing your order, we consider these factors when calculating the Estimated Delivery prices :

  • Post code of the nominated delivery address.
  • Transit Time: The amount of time it takes your order to leave our distribution centre and arrive at the local delivery carrier.

What additional fees may apply?
There may be circumstances that require additional payment by you if the conditions mentioned have not been met or you require special services outside of our standard delivery.

Back Orders

If an item goes on back order we will ship you the part of your order that is in stock. When the item becomes available we will ship you the rest of your order. You will not be charged any additional shipping and handling for the second shipment.

Delivery Insurance

Goods that are shipped on behalf of the client by Mytuff4x4 are not insured unless the client notifies us prior to delivery and pays for delivery insurance. Mytuff4x4 is not responsible for goods damaged in transit if insurance is not paid for by the customer prior to delivery.
Superpro Bump Steer Correction Kit - Gen 3 Isuzu D-Max RG, Gen 3 Mazda BT-50 & Gen 2 Isuzu MU-XSuperpro Bump Steer Correction Kit - Gen 3 Isuzu D-Max RG, Gen 3 Mazda BT-50 & Gen 2 Isuzu MU-XSuperpro Bump Steer Correction Kit - Gen 3 Isuzu D-Max RG, Gen 3 Mazda BT-50 & Gen 2 Isuzu MU-XSuperpro Bump Steer Correction Kit - Gen 3 Isuzu D-Max RG, Gen 3 Mazda BT-50 & Gen 2 Isuzu MU-X

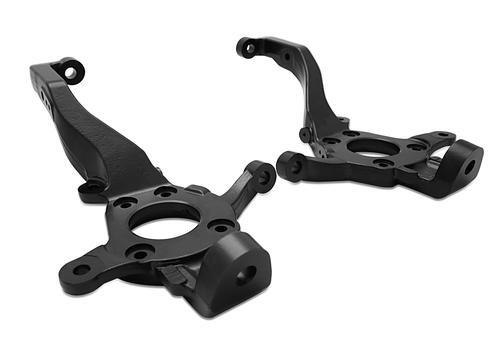

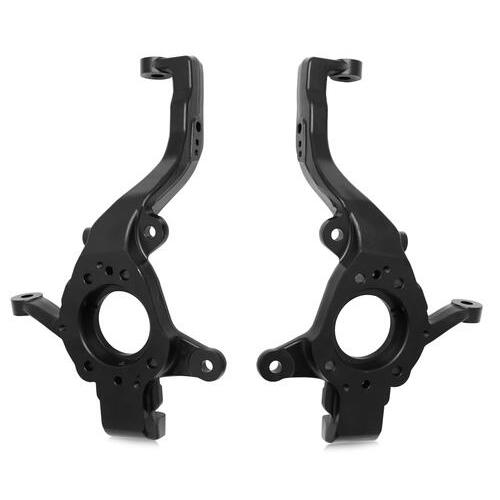

Bump Steer Correction Steering Knuckle Kit (Left & Right)

This Steering Knuckle Kit is designed to correct the common bump steer issue found in the latest generation Isuzu and Mazda 4WD platforms. Many owners of these vehicles experience excessive tyre wear, even at factory ride height, which becomes significantly worse once the vehicle is fitted with a suspension lift, accessories, or when towing.

These upgraded steering knuckles are engineered to correct the steering geometry, dramatically reducing bump steer and helping prevent premature tyre wear. They are suitable for both standard height and lifted vehicles.

For lifted vehicles, pairing these knuckles with quality aftermarket upper control arms will further improve alignment, steering behaviour, and overall drivability.

Kit Includes:

  • 1 × Left Steering Knuckle

  • 1 × Right Steering Knuckle

Key Features:

  • Designed to optimise steering geometry and correct factory bump steer

  • Reduces bump steer by approximately 75%

  • Helps minimise premature tyre wear

  • Direct replacement for factory steering knuckles

  • Maintains OE mounting points for straightforward installation

  • Manufactured from hot-forged 4140 AISI steel

  • Post-machined and heat-treated for strength and durability

  • Finished with black e-coating for corrosion resistance

How It Works:

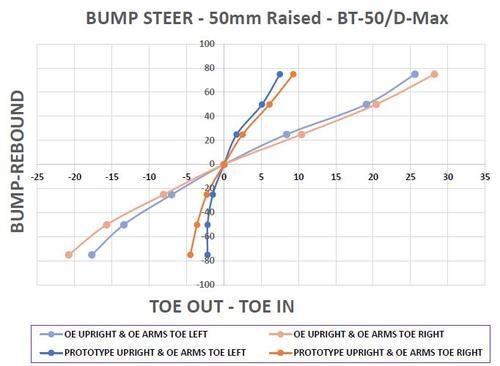

The upgraded knuckles relocate the outer tie-rod mounting point, improving steering geometry across a range of ride heights. This adjustment significantly reduces the amount of toe change that occurs as the suspension moves through its travel, which is the primary cause of bump steer.

Benefits:

  • Reduced bump steer during suspension movement

  • Improved steering stability

  • Better tyre life

  • Improved alignment results

  • More predictable handling

Vehicle Compatibility:

  • Isuzu D-Max RG (08/2020 onwards)

  • Isuzu MU-X Gen 2 (08/2021 onwards)

  • Mazda BT-50 Gen 3 (09/2020 onwards)

Installation Notes:

  • Wheel alignment required after installation

  • Installation difficulty: High – professional fitting recommended

  • Estimated install time: 3–4 hours
