Universal Tow-Pro Extended Wiring Kit

Regular price
$246.10
Regular price
$0.00
Sale price
$246.10 AUD
Sku: TPWKIT-013
Availability: In Stock
-- Please Select --
-- Please Select --
Please Select
Universal Switch insert  (+$3.11 AUD)
Hilux & Triton Switch Insert  (+$3.11 AUD)
Colorado Switch insert  (+$3.11 AUD)
Isuzu DMax SX Switch insert  (+$3.11 AUD)
Isuzu DMax LS Switch insert  (+$3.11 AUD)
Navara & X-- Class Switch insert  (+$3.11 AUD)
Mazda BT-50 Switch insert  (+$3.11 AUD)
Surround Mount Switch insert  (+$3.11 AUD)
Suitable for Toyota Switch insert  (+$3.11 AUD)
Suitable fot Tooyota 70 Series Switch insert  (+$3.11 AUD)

Shipping & Returns

Turnaround

All orders are shipped within 1-2 weeks.

If a tracking number is provided by the shipping carrier, we will update your order with the tracking information. Please note that some orders may not have tracking numbers due to provider options.

Shipping Rates

The rate charged for the shipping of your order is based on the weight of your products, and your location. Before the final checkout page you will be shown what the cost of shipping will be, and you will have a chance to not place your order if you decide not to.

Delivery charges

What is Rural Delivery fee?
An estimated delivery charge will apply to customers ordering from rural areas. Prior to processing you order on checkout, an alert will appear that will advise customers to call MYTUFF4X4 to obtain an accurate cost of delivery. Please contact MYTUFF4X4 to see a list of Rural and Remote areas. Some areas may take longer due to the frequency of deliveries to the delivery Post code. Our system calculates this estimated price considering the total amount of time to process your order including: packaging, transit time to the delivery provider, and transit time to the delivery address.

When placing your order, we consider these factors when calculating the Estimated Delivery prices :

  • Post code of the nominated delivery address.
  • Transit Time: The amount of time it takes your order to leave our distribution centre and arrive at the local delivery carrier.

What additional fees may apply?
There may be circumstances that require additional payment by you if the conditions mentioned have not been met or you require special services outside of our standard delivery.

Back Orders

If an item goes on back order we will ship you the part of your order that is in stock. When the item becomes available we will ship you the rest of your order. You will not be charged any additional shipping and handling for the second shipment.

Delivery Insurance

Goods that are shipped on behalf of the client by Mytuff4x4 are not insured unless the client notifies us prior to delivery and pays for delivery insurance. Mytuff4x4 is not responsible for goods damaged in transit if insurance is not paid for by the customer prior to delivery.

1
The REDARC Universal Tow-Pro Extended Wiring Kit supports the installation of the Tow-Pro Elite electric trailer brake controller into a wide range of vehicles. It provides all the parts and wiring flexibility to fit most vehicles.

It is suitable for vehicles where the start battery is on the other side of the vehicle from the rest of the installation via 3.7m power cable length. The only difference between this kit and Universal Tow-Pro Wiring Kit is the length of the positive power connection.

The Universal Tow-Pro Extended Wiring Kit range replaces Tow-Pro Wiring Kit range and consolidates the range from 10 kits down to 3.






























Old SKU Vehicle specific wiring guide  NEW SKU
TPWKIT-003 Triton & Pajero Sport  TPWKIT-014
TPWKIT-005 LC200 TPWKIT-014
TPWKIT-008 Navara TPWKIT-014
TPWKIT-010 Amarok TPWKIT-014

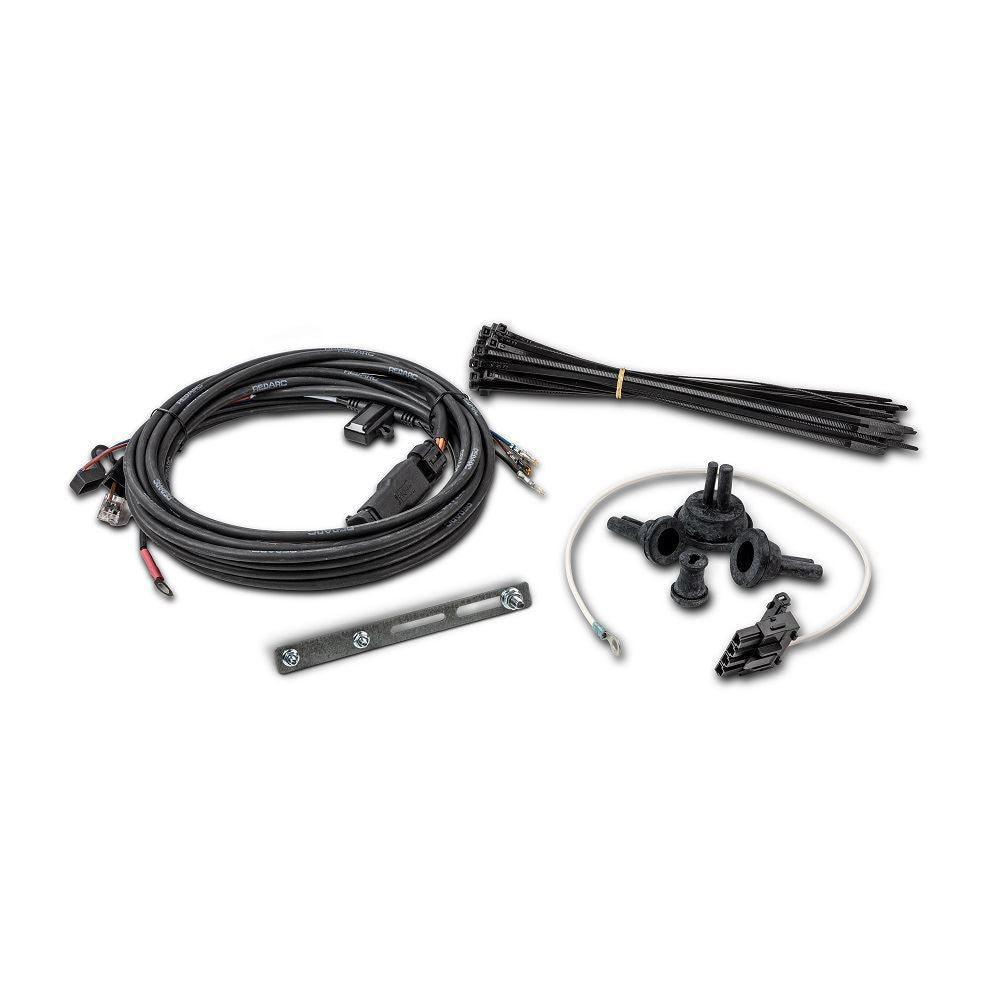

The Universal Tow-Pro Extended Wiring Kit comes with the complete range of hardware required to install a Tow-Pro Elite brake controller and contains a Wago Boot. Encapsulated Protection Device. Wiring Harness. Mounting Bracket and fitting instructions.

The standard 1m Remote Head cable that comes supplied in the Tow-Pro Elite (EBRH-ACCV3) will support the location of the remote head in the centre of the vehicle when the main unit is located around the glovebox area. If the preferred location for the remote head in these instances is on the driver’s side. you will need to purchase and fit the 2m remote head cable.

Modern vehicles continually feature new technology. the last couple of years have seen a rise in modern driving aids such as Autonomous Emergency Braking. Adaptive Cruise Control. lane departure and collision avoidance. REDARC’s range of Universal Wiring Kits is compatible with this new technology.

When you use a REDARC Universal Tow-Pro Extended Wiring Kit you ensure a high-quality and fast installation of the award-winning Tow-Pro Elite electric trailer brake controller.

REDARC also offer a complete range of accessories to assist the installation of the Tow-Pro Elite into just about any vehicle such as Switch Inserts. Encapsulated Protection DevicesRemote Head Wiring Kits and a Mounting Bracket Kit.

For technical support or any other enquiries contact our Technical Support Team on 1800 REDARC.

Rating :
12V

Weight (g) :
1050

Dimensions :
290x290x65mm

Warranty :
2 Years

Application :
EBRH-ACCV3

Available separately :
Vehicle-specific Switch Insert / Alternative length Remote Head Cable
