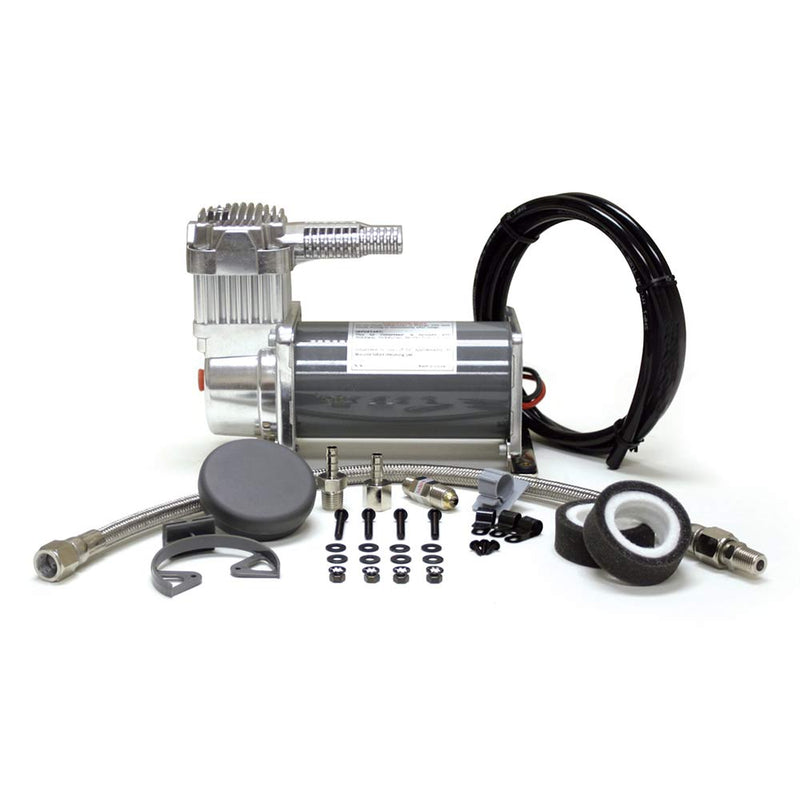

The ViAir 330C Industrial Grade (IG) compressors are specifically designed to fill air reservoir tanks and feature a head assembly that includes a newly-developed. patents pending innovative head design for better heat dissipation. All IG compressors are certified CE spec. and feature outstanding sealing properties to the elements. Additionally. all IG compressors are equipped with a separate stainless steel braided PTFE-lined leader hoses and check valve assembly that protects the compressor against high amperage restarts.
Featuring:
Vibration Isolators
Mounting Hardware
Heavy Duty 1/4″ NPT Check Valve
Stainless Steel Braided PTFE-Lined Leader Hose
Air Line for Remote Mount Air Filter
Remote Mount Air Filter Assembly
2 x Replacement Air Filter Elements
Installation Instructions
Duty Cycle:
100% @ 100 PSI
Working Pressure:
150 PSI (max)
Air Tank Size:
5 Gallon (max)
Amp Draw:
9 Amps. 24V (max)
Ingress Protection Rating:
IP67
Dimensions:
9″L x 4″W x 6.75″H
Weight:
8.25 lbs.
Warranty:
1 year
