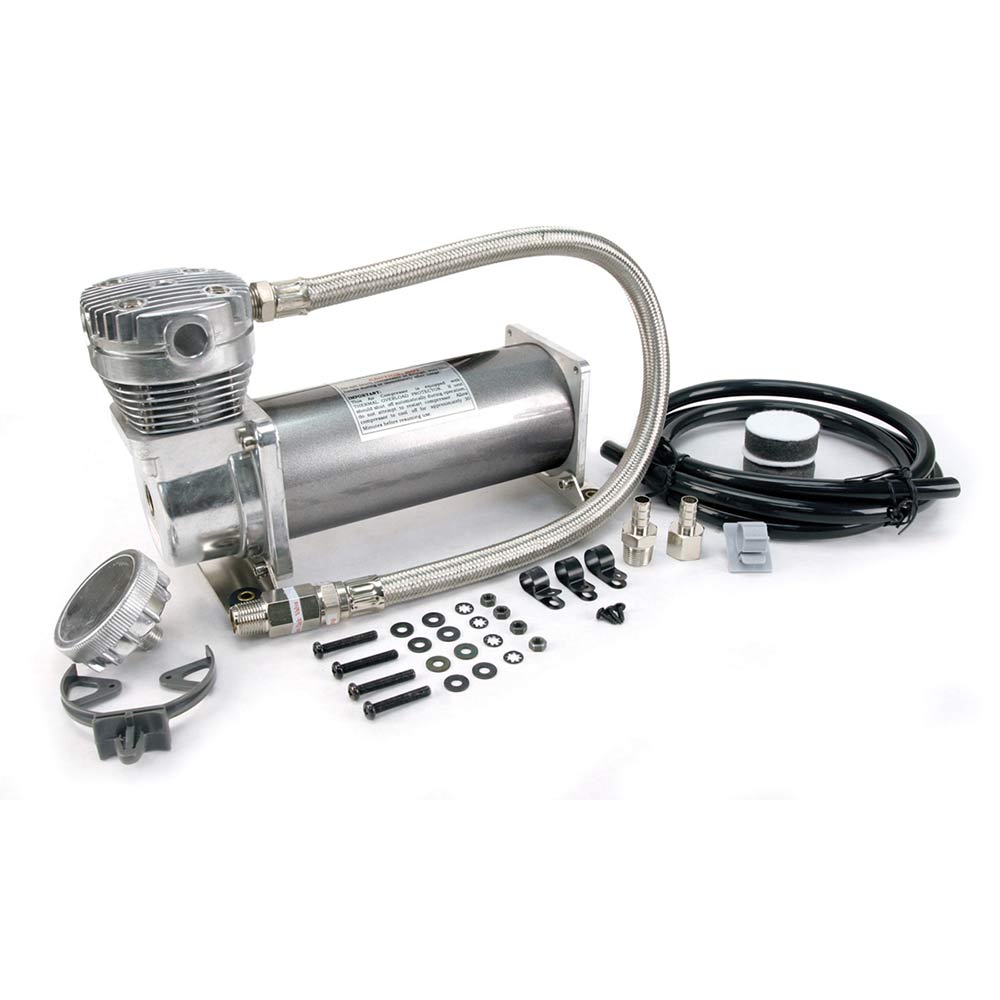

The ViAir 380C is a truly-rated continuous duty. 12-volt. 200 PSI compressor. It is capable of filling a 5.0 gallon tank from 165 PSI to 200 PSI in 3 ½ minutes consistently. while never pulling more than 23 amps of power (@ 13.8 volts). Features include a standard 1/4” stainless steel braided leader hose with 1/4” NPT inline check valve and insulated wiring.
Featuring:
Check Valve
Vibration Isolators
Mounting Hardware
Stainless Steel Braided Leader Hose
Air Line for Remote Mount Air Filter
Remote Mount Air Filter Assembly
2 x Replacement Air Filter Elements
Installation Instructions
Duty Cycle:
100% @ 100 PSI (50% @ 200 PSI)
Working Pressure:
200 PSI (max)
Air Tank Size:
5 Gallon (max)
Amp Draw:
23 Amps 12v (max)
Ingress Protection Rating:
IP67
Dimensions:
10.87″L x 4.2″W x 6.75″H
Weight:
8.75 lbs.
Warranty:
1 year
